Sale

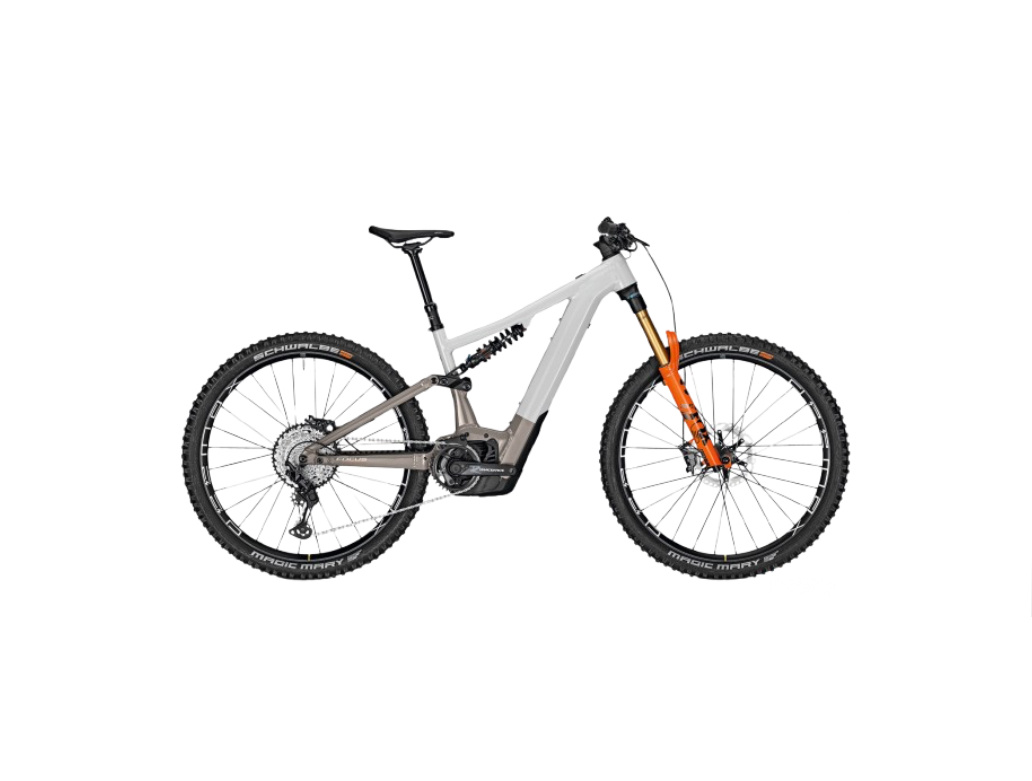

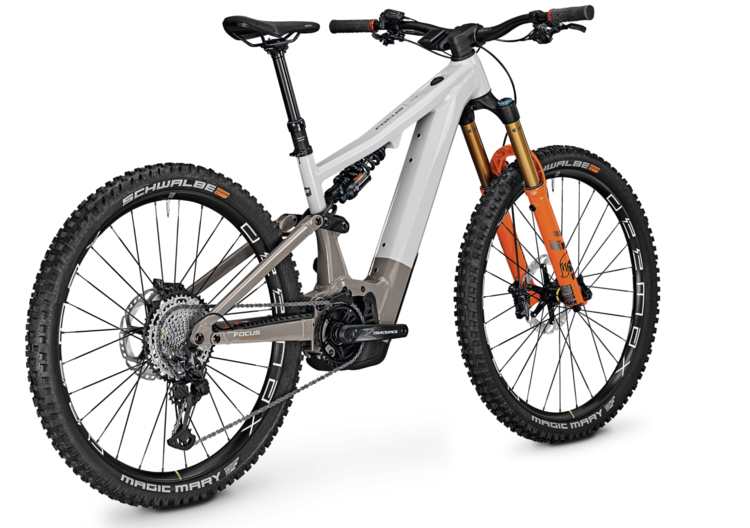

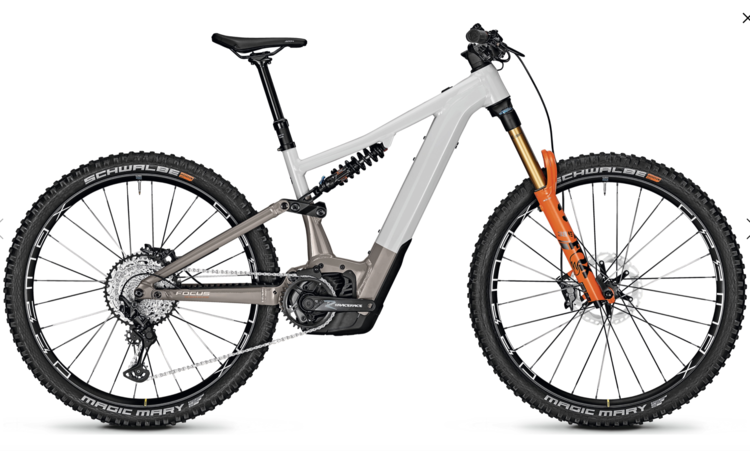

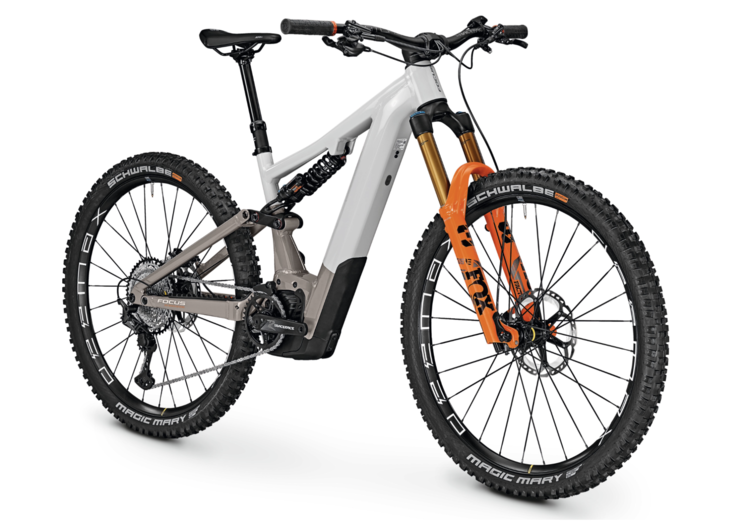

2023 Focus Sam 2 6.9 Lightgrey / Moonstone

SKU: D663003802
$11,999.00$10,999.00
Add to cart
Only a few left

Product details

FOCUS SAM² 6.9 FEATURES

BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE AND KIOX 300 DISPLAY PLUS 750 WH BATTERY

180 MM TRAVEL FOX 38 FACTORY SUSPENSION FORK AND 170 MM F.O.L.D. KINEMATICS WITH FOX DHX PERFORMANCE ELITE COIL REAR SHOCK

FULLY INTEGRATED C.I.S. CABLE ROUTING WITH RELIABLE PRECISE SHIMANO XT 1X12 SHIFTING, STRONG XT 4-PISTON BRAKES

DESIGNED FOR DOWN

  • SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

    Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the FOCUS SAM² 6.9 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.

  • BIKE DESIGN FOR OPTIMAL PERFORMANCE IN ANY SITUATION

    Thanks to the long wheelbase and slack head angle, the FOCUS SAM² 6.9 rides super stable even at high speed in roughest terrain. It has a perfect stiffness-to-weight ratio because the slide-out battery only requires a minimal cut-out in the down tube. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes this e-MTB more stable on descents. The low stand-over height gives you generous space for moving and enables you to handle your bike perfectly in technical terrain. By turning the headset cups, you can easily change the head angle of your FOCUS SAM² 6.9 according to your riding preferences from 64.5° to 63.5°.

  • MADE FOR THE ROUGHEST TRAILS

    The kinematics of our FOCUS SAM² 6.9 is made for the roughest rides. Our upgraded F.O.L.D. (FOCUS Optimised Linkage Design) is the core component of this bike and optimised for its purpose. It allows the integrated coil shock to work best. With 180/170 mm travel, a suspension fork with 38 mm stanchions and fast 29" wheels, the FOCUS SAM² 6.9 is ready to shred. You can always rely on strong Shimano brakes. Thanks to the sturdy alloy wheelset, you can smash through rock gardens, hit jumps, and send gaps at full speed.

SPECIFICATION


FRAME MATERIAL
Aluminium

FRAME
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm

FORK
FOX 38 Factory Float 29, Grip 2, E-Bike+, 110x15 mm, 44 mm rake

TRAVEL OF SUSPENSION FORK
180 mm

SHOCK
FOX DHX Performance Coil, 230/65 mm, hardware: 20,0 x 8.0 mm

MOTOR
Bosch Performance CX Smart, 85 Nm, 250 W

BATTERY WATT-HOURS
750 Wh

DISPLAY
Bosch LED Remote + Kiox 300

SHIFTER
Shimano Deore XT M8100, 12-speed

REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed

SPROCKET
Shimano SLX M7100, 12-speed

CHAIN
Shimano SLX CN-M7100, 12-speed

CRANKSET
Samox EC40 ISIS

TRANSMISSION OF DRIVE
front: 34, rear: 10-51

BOTTOM BRACKET
Integrated in Drive Unit

HANDLEBAR
RaceFace Chester 35, aluminium, 780 mm, rise: 35 mm, backsweep: 8°

STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium

HEADSET
ACROS ZS56/ZS60 (ICR), FOCUS C.I.S. Integrated angle headset

SADDLE
Proxim W350

SEATPOST
Post Moderne dropper post PM-214, 34.9 mm

BRAKE CALIPER
Shimano XT M8120, 4 piston

BRAKE LEVER
Shimano XT M8120, 4 piston

BRAKE
Disc

RIMS
RaceFace AR30 Offset

REAR HUB
Novatec D462, 12x148 mm

FRONT HUB
Novatec D041, 15x110 mm thru axle

TIRES
Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622 / Schwalbe Magic Mary, 2.6 Super Gravity Soft, 65-622

GEARS
12

BIKE WEIGHT INCL. BATTERY IN KG.
26,6
