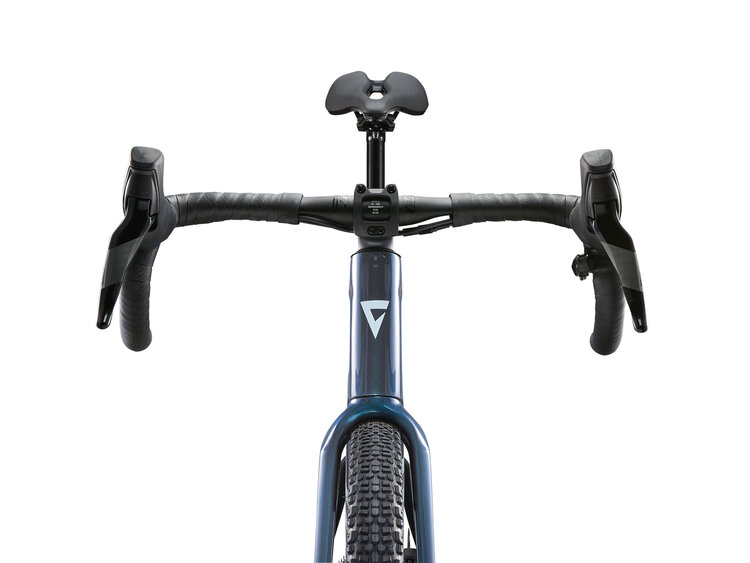

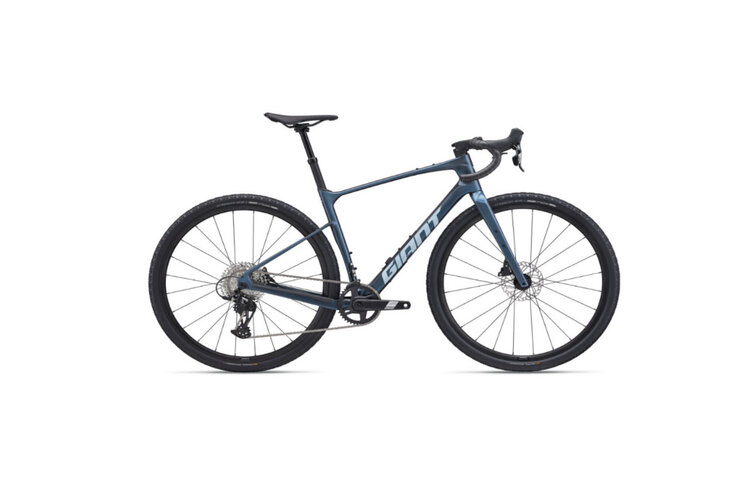

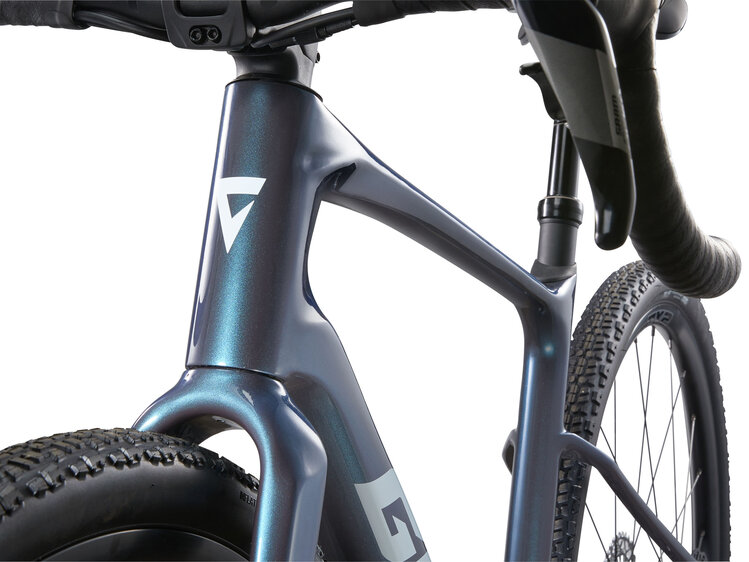

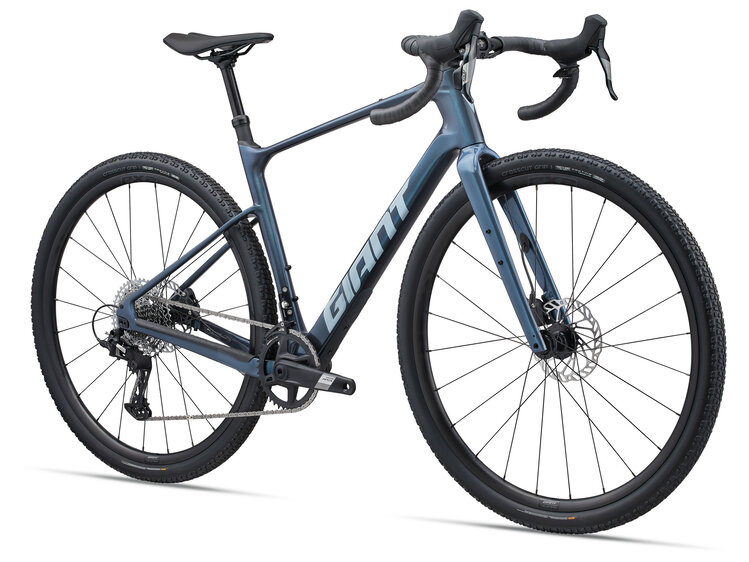

2025 Giant Revolt Advanced 1 Ocean Twilight

Product details

FAST AND VERSATILE

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost* help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION

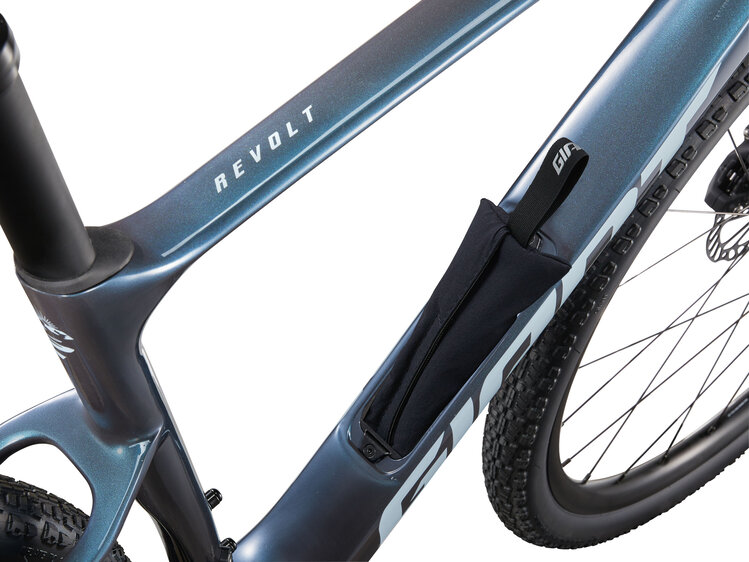

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.

With a new composite frameset featuring fully integrated cable housing, this lively gravel bike helps you push your limits on variable terrain. The D-Fuse seatpost and handlebar absorb shocks and vibrations, giving you greater control and less fatigue. A flip chip on the all-new, full composite rear dropout adjusts wheelbase and tyre clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round seatpost or dropper post. Details include a new internal storage compartment on the down tube and additional frame mounts to add bottle cages, racks and other accessories.

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Ocean Twilight
• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
• Saddle
  Giant Approach
• Shifters
  SRAM Apex 1, 1x12
• Rear Derailleur
  SRAM Apex XPLR
• Brakes
  SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Rival 1, left lever dropper switch

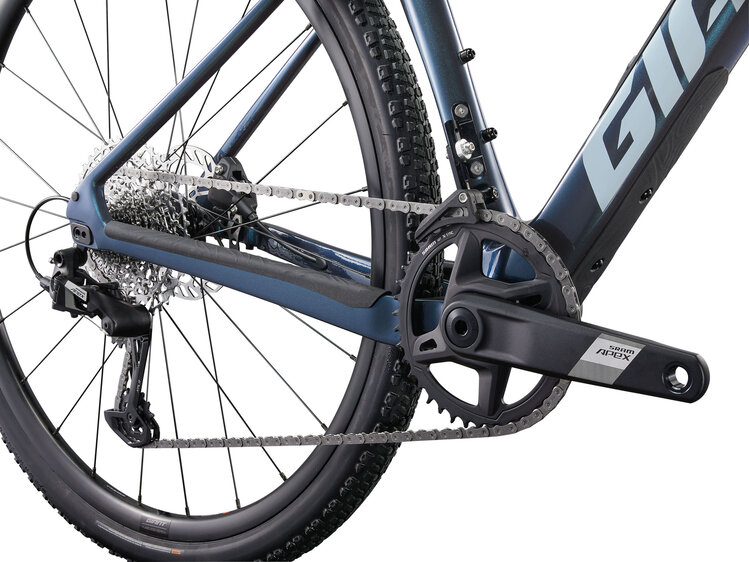

• Cassette
  SRAM PG-1231, 12-speed, 11x44
• Chain
  SRAM Apex D1
• Crankset
  SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant P-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Sapim
• Tires
  Giant Crosscut Grip, 700x45c, tubeless
• Extras
  Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
