Product details
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Modern MTB Design

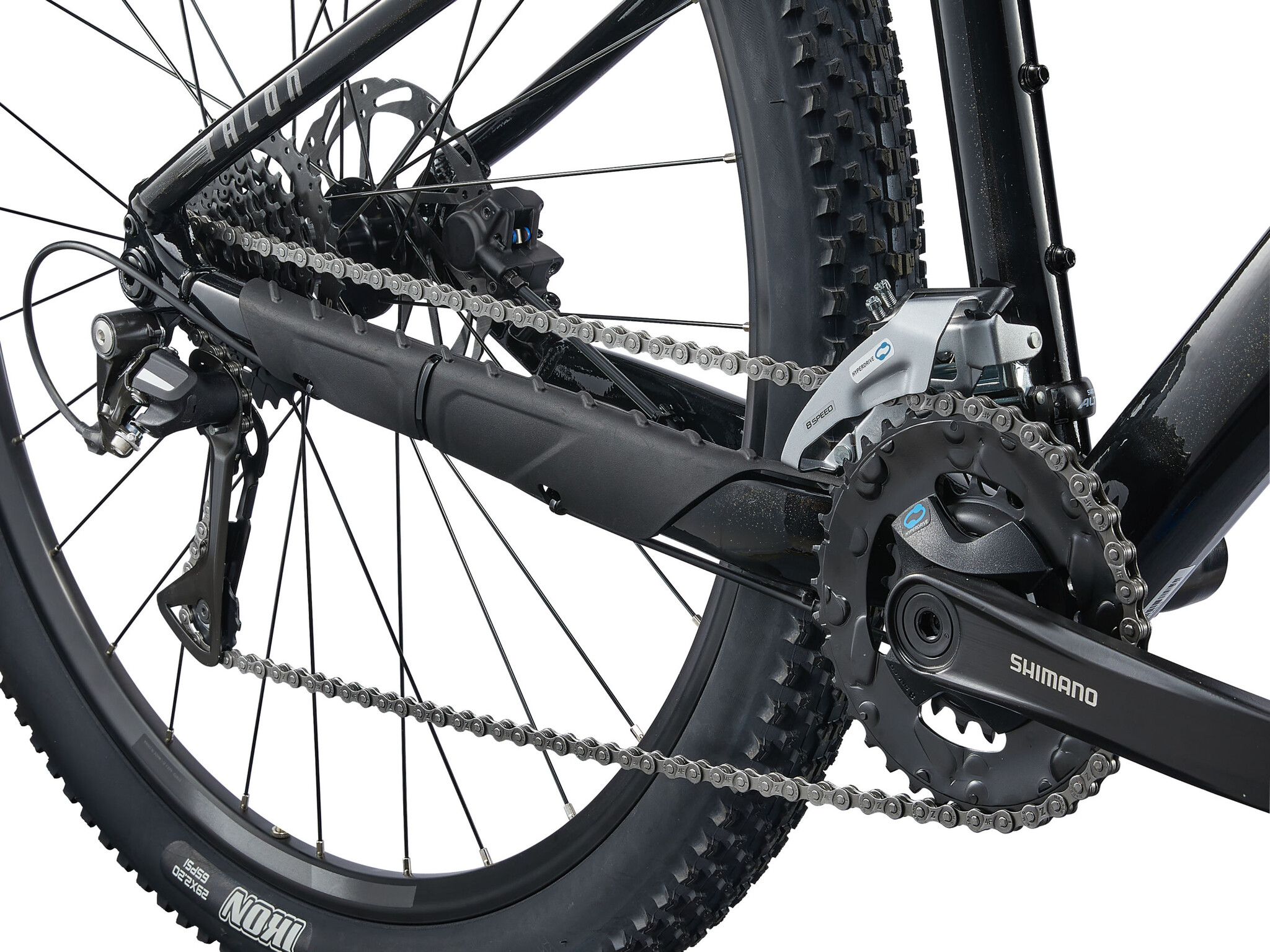

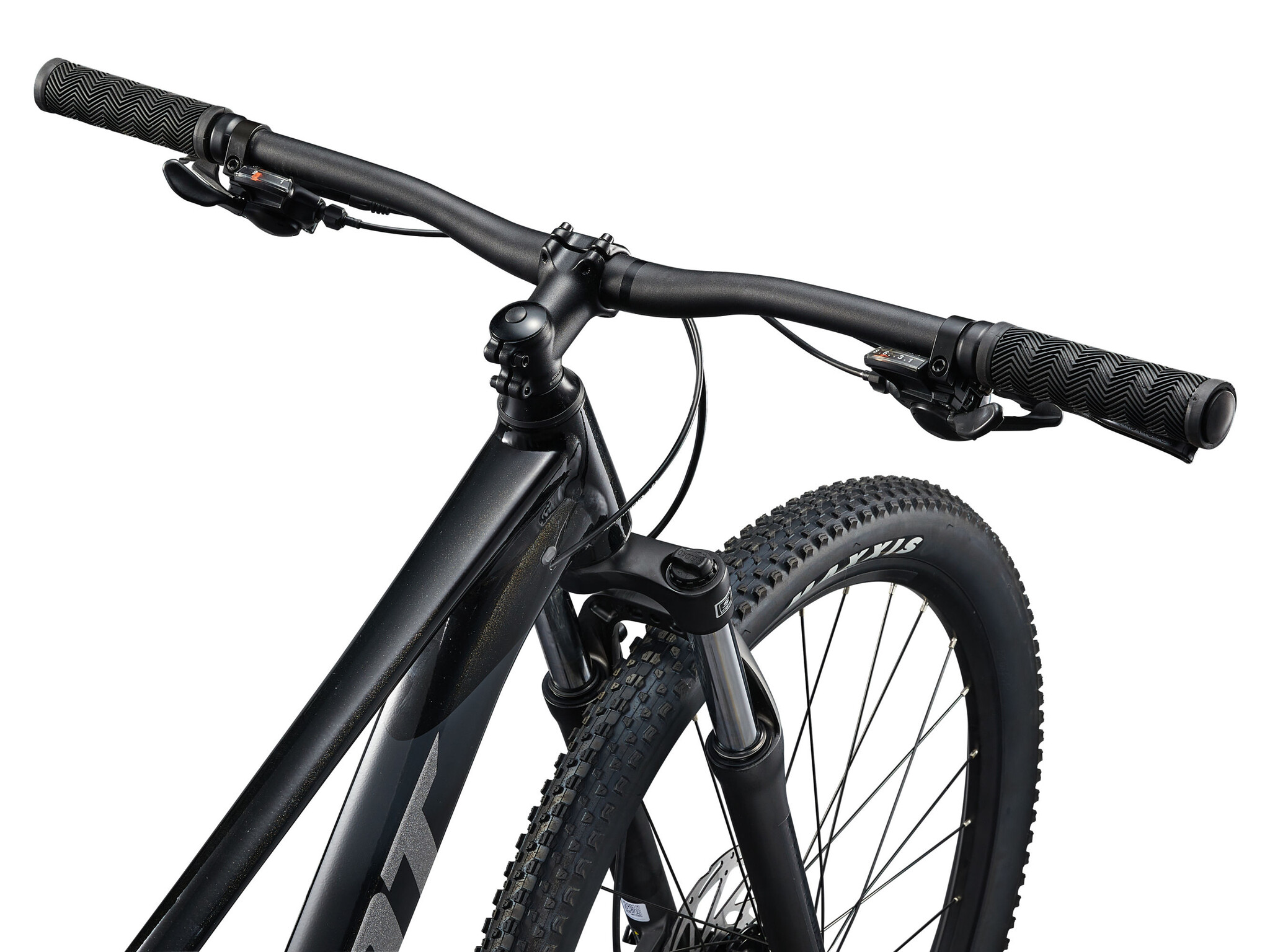

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size and model. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size and model. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance.
| XS (27.5") | S (27.5") | S (29") | M (29") | L (29") | XL (29") | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 345 | 375 | 380 | 420 | 450 | 480 |
| A1 | Seat Post Insertion Depth (mm) | 306 | 337 | 340 | 200 | 237 | 292 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (mm) | 542 | 562 | 581 | 604 | 629 | 653 |
| D | Head Tube Length (mm) | 90 | 90 | 95 | 105 | 125 | 140 |
| E | Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 105.2 | 105.2 | 108.9 | 108.9 | 108.9 | 108.9 |
| H | Wheelbase (mm) | 1084 | 1104 | 1139 | 1164 | 1191 | 1217 |
| I | Chain Stay Length (mm) | 440 | 440 | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 45 | 45 | 55 | 55 | 55 | 55 |
| K | Stack (mm) | 548 | 548 | 597 | 606 | 625 | 639 |
| L | Reach (mm) | 385 | 405 | 415 | 436 | 456 | 476 |
| M | Stand Over Height (mm) | 684 | 684 | 715 | 709 | 709 | 710 |
| O | Stem Length (mm) | 40 | 50 | 50 | 60 | 70 | 80 |
| P | Crank Length (mm) | 165 | 165 | 170 | 170 | 170 | 175 |
| Q | Wheel Size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
-
Sizes27.5: XS, S, 29: S, M, L, XL
-

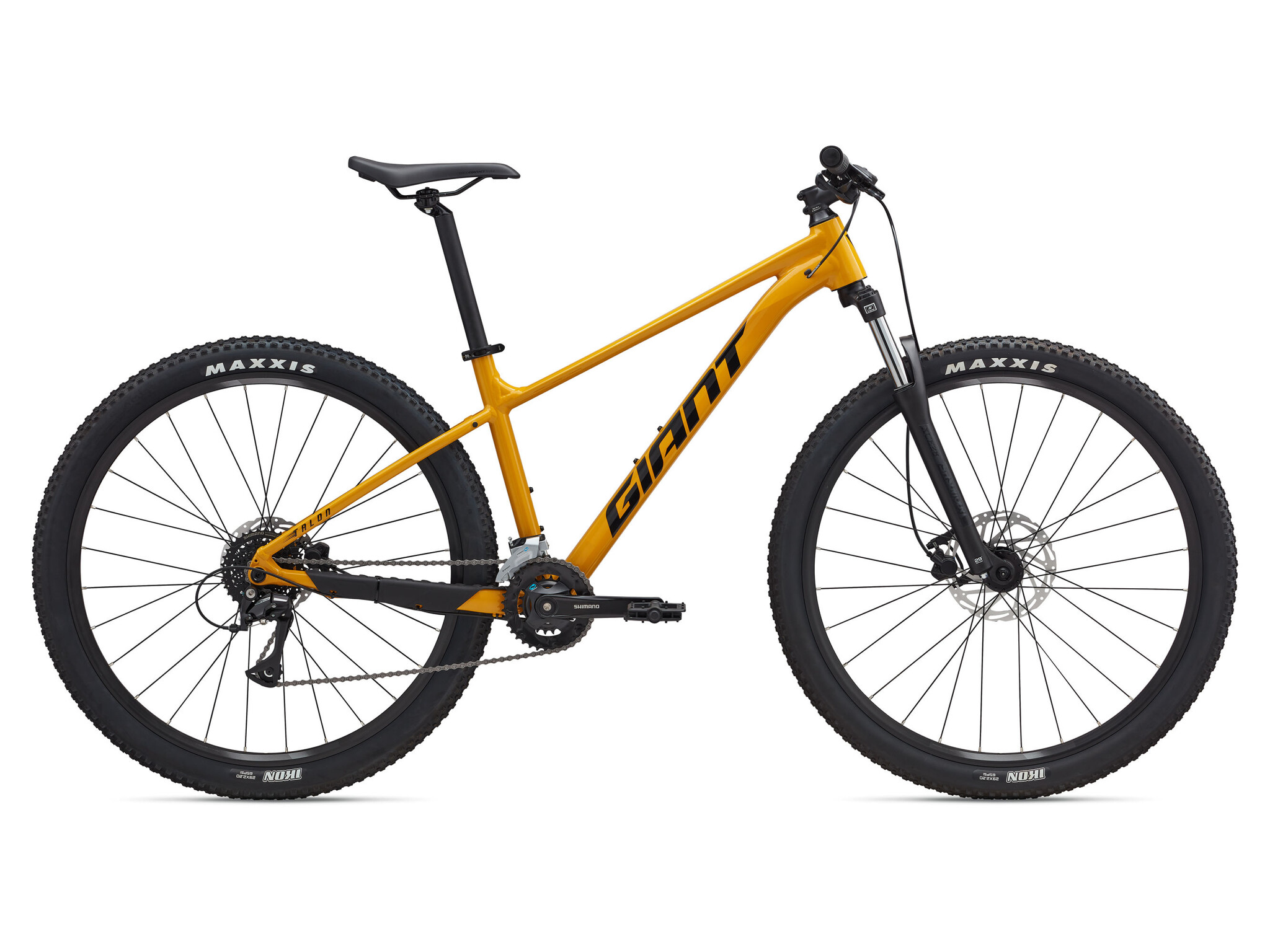

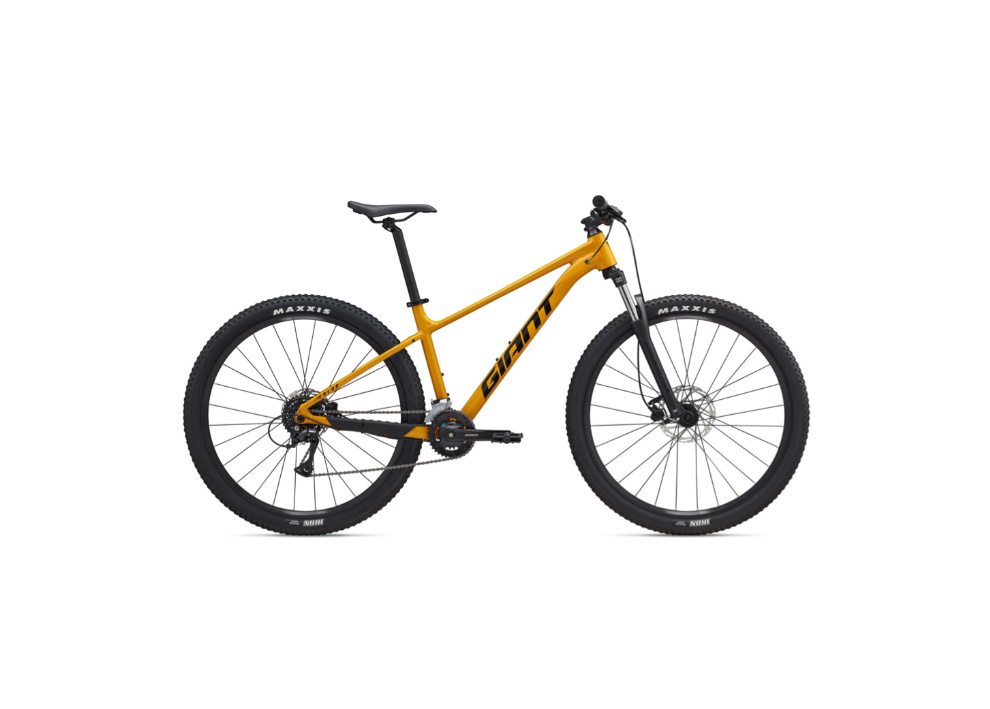

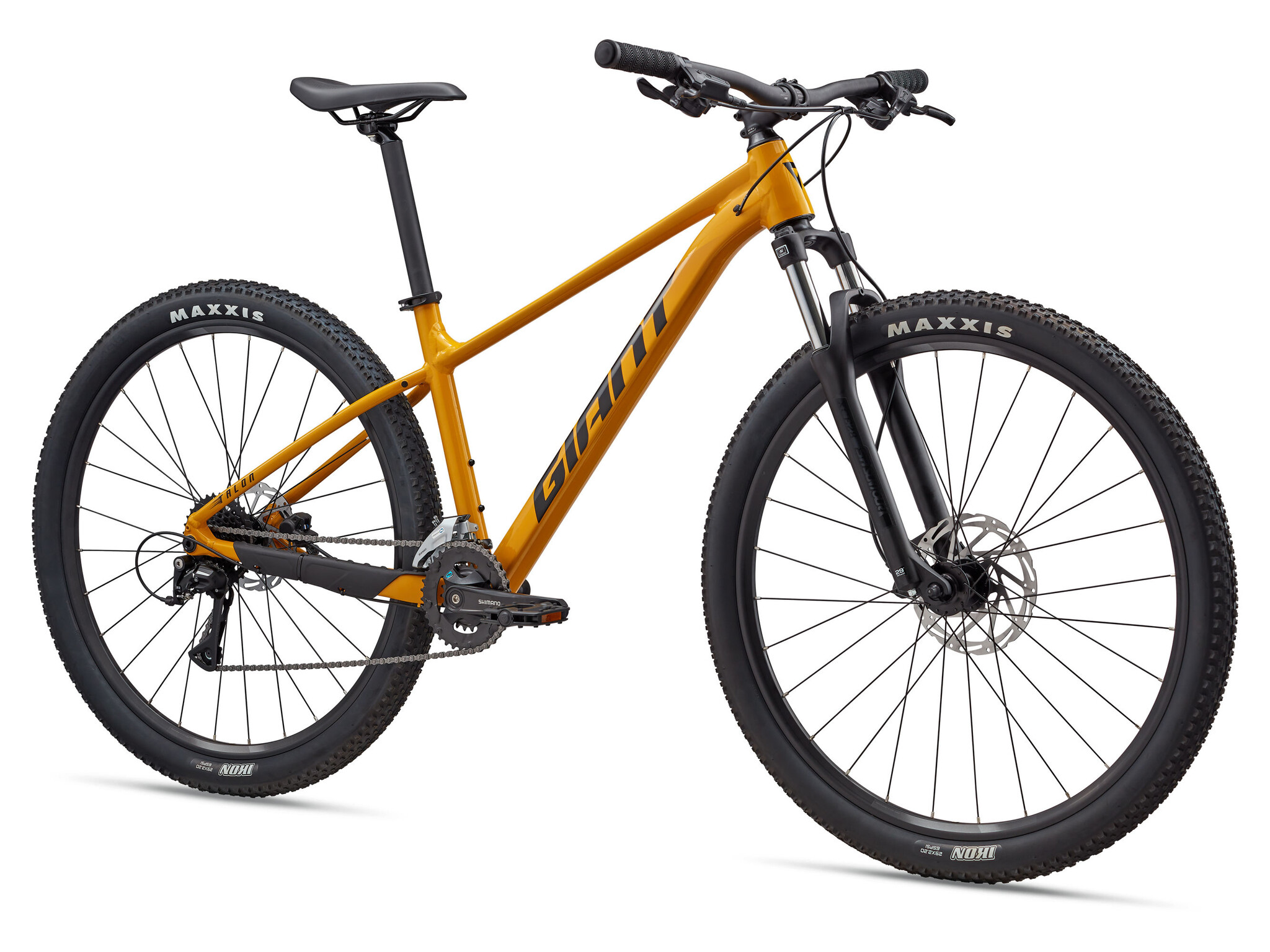

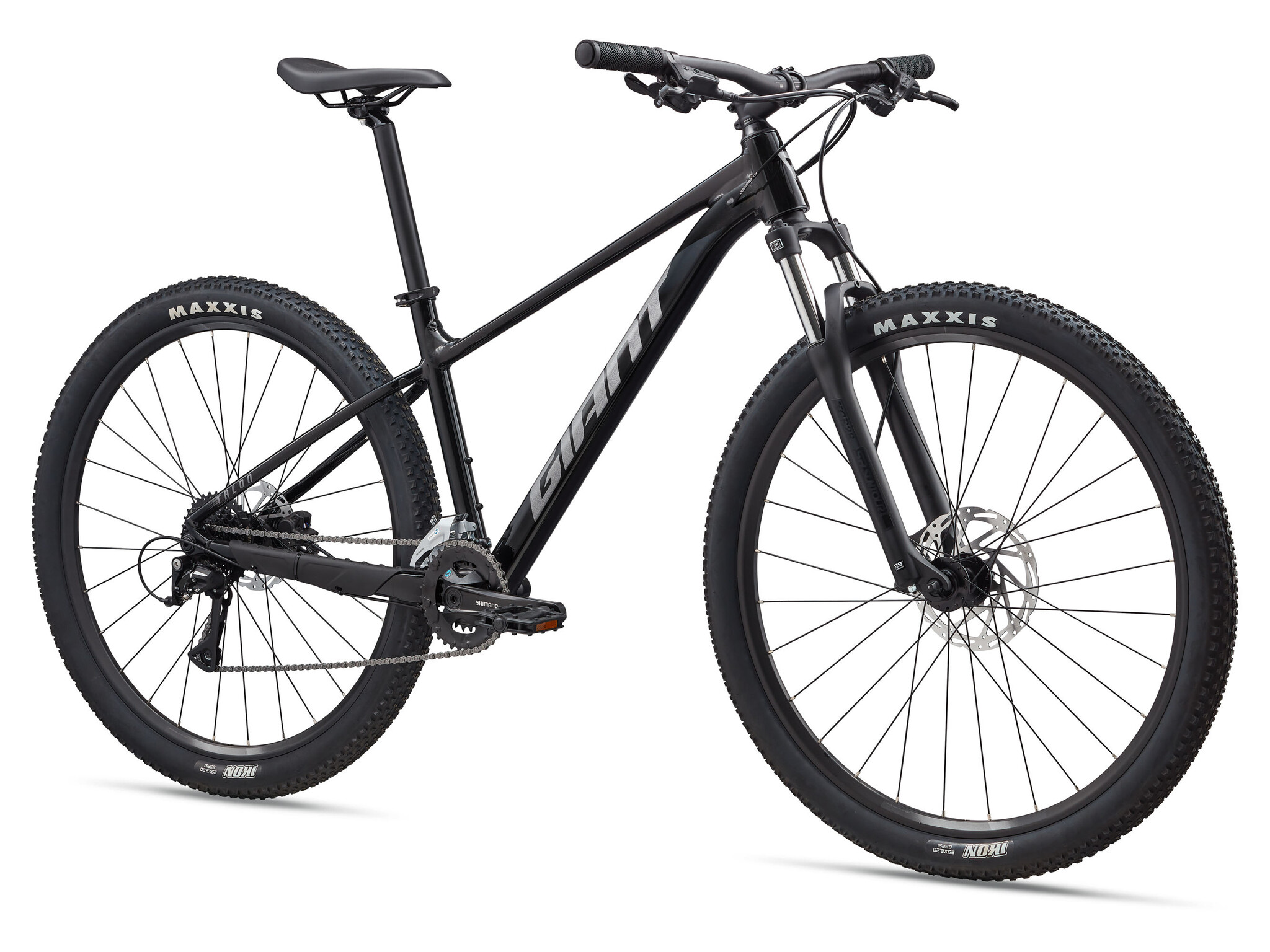

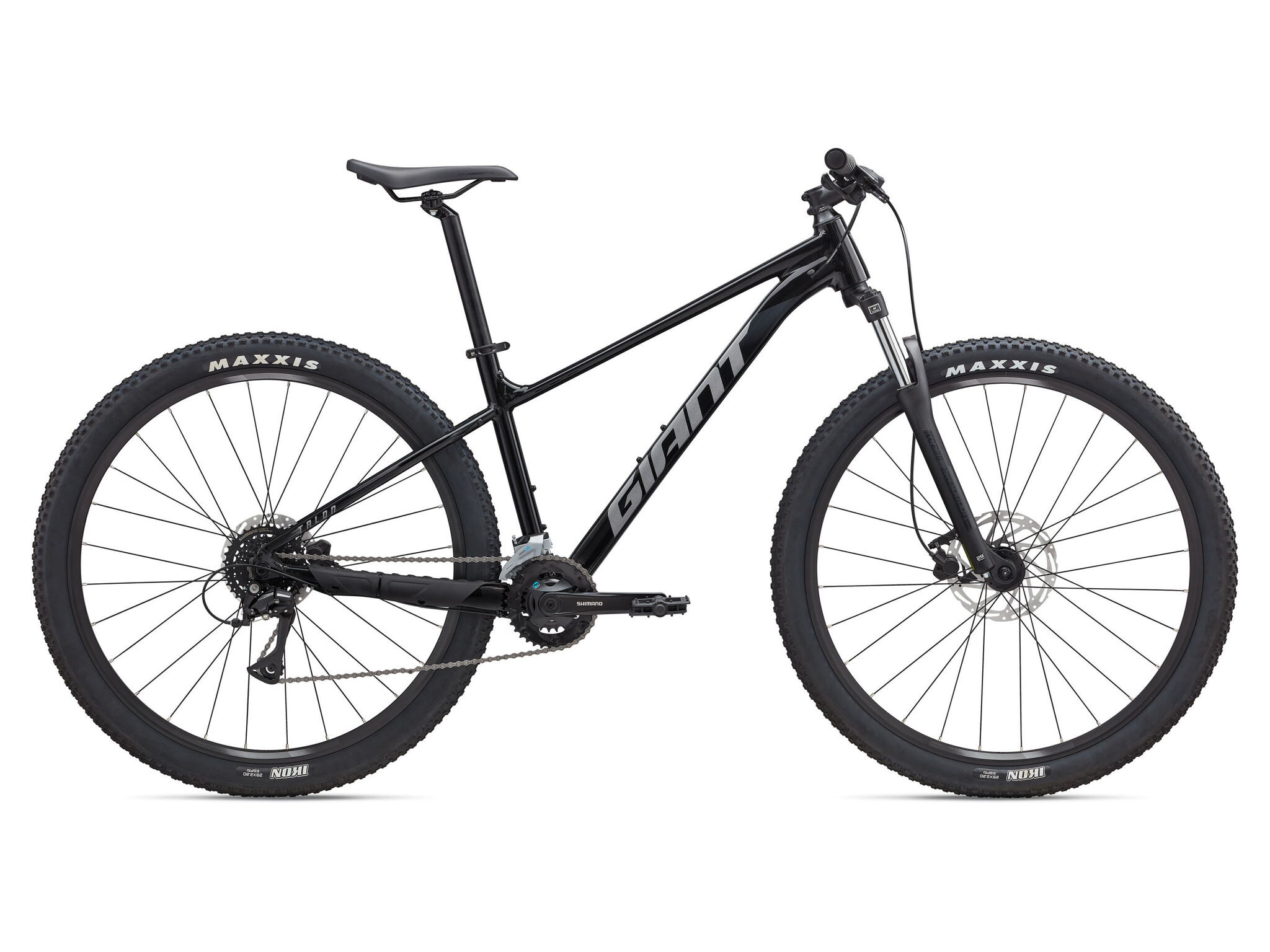

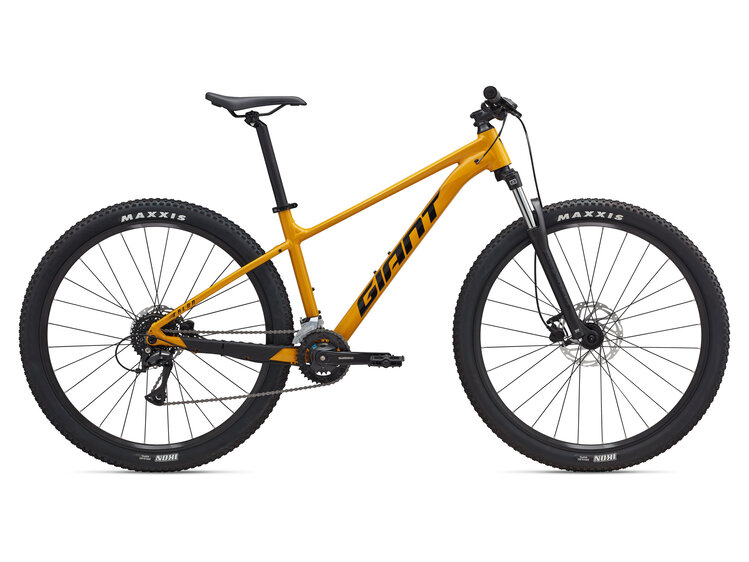

ColoursPanther, Beeswax
-
FrameALUXX-grade aluminium, disc
-

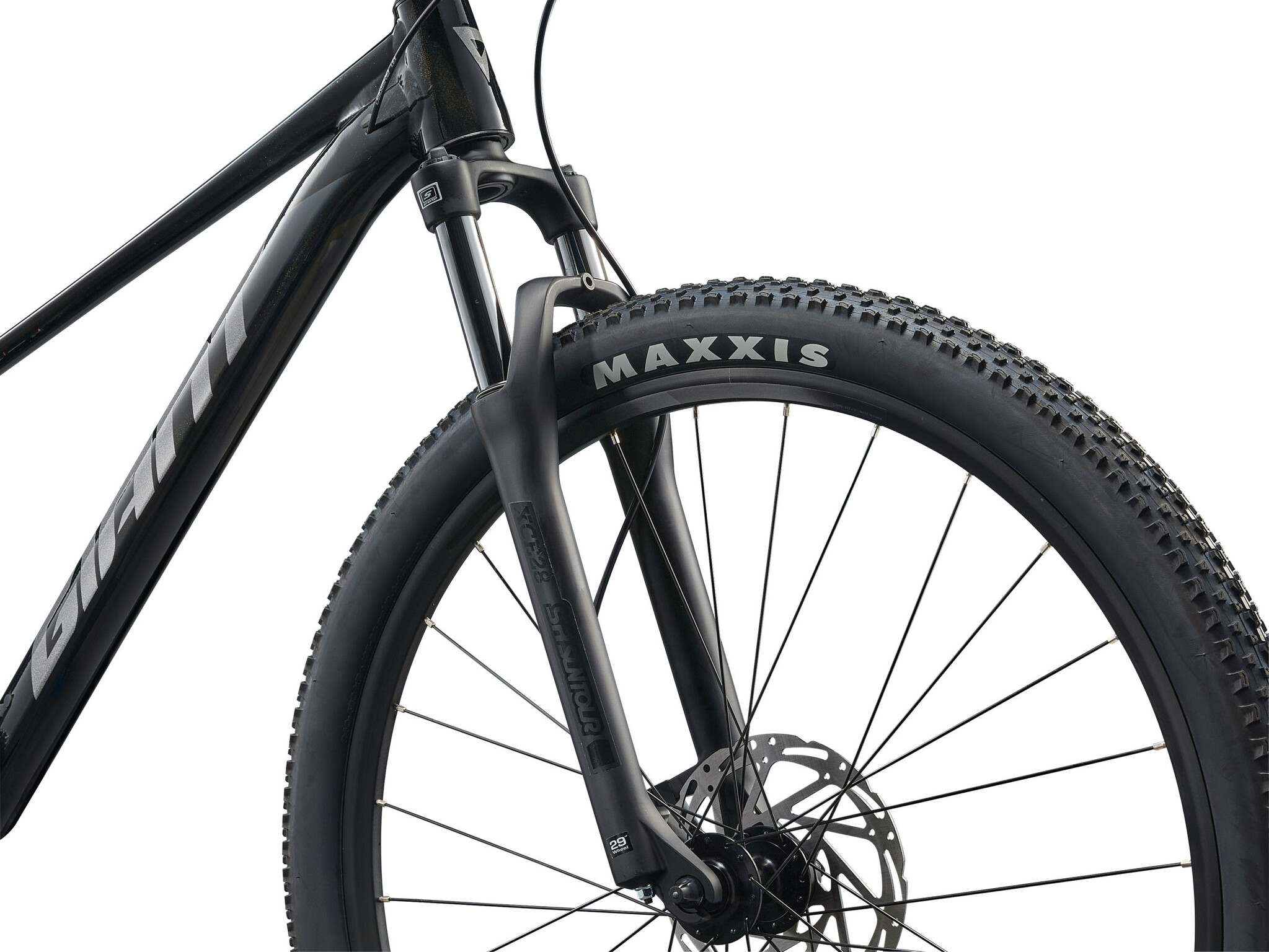

ForkSR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
-
ShockN/A
-
HandlebarGiant Connect Trail, 31.8mm
-
GripsGiant Sole-O
-
StemGiant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
-
SeatpostGiant Sport, 30.9mm
-
SaddleGiant ErgoContact Trail
-
PedalsMTB caged
-
ShiftersShimano Acera, 2x8
-
Front DerailleurShimano Acera
-
Rear DerailleurShimano Acera
-

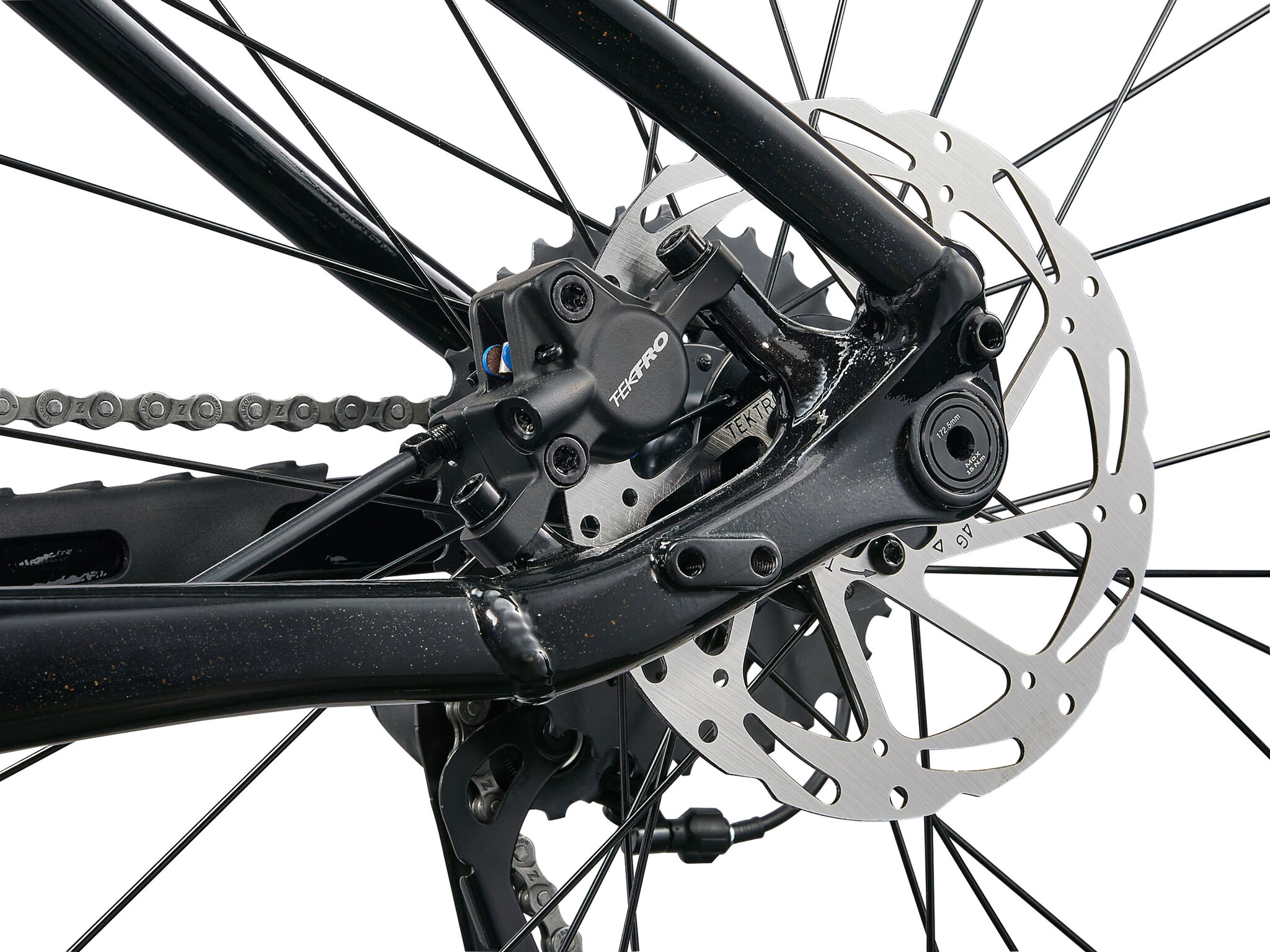

BrakesTektro TKD143, hydraulic, Tektro rotors [F]180mm, [R]160mm
-
Brake LeversTektro TKD143
-
CassetteShimano HG31, 11x34
-
ChainKMC 8.3
-
CranksetShimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
-
Bottom BracketCartridge
-
RimsGiant GX03V 29 or 27.5, alloy, double wall
-
HubsAlloy, sealed
-
SpokesStainless, 14g
-
TiresMaxxis Ikon 27.5" or 29x2.2", wire bead
-
Extras2.4" max tyre size, 32t max chainring size
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
