Product details

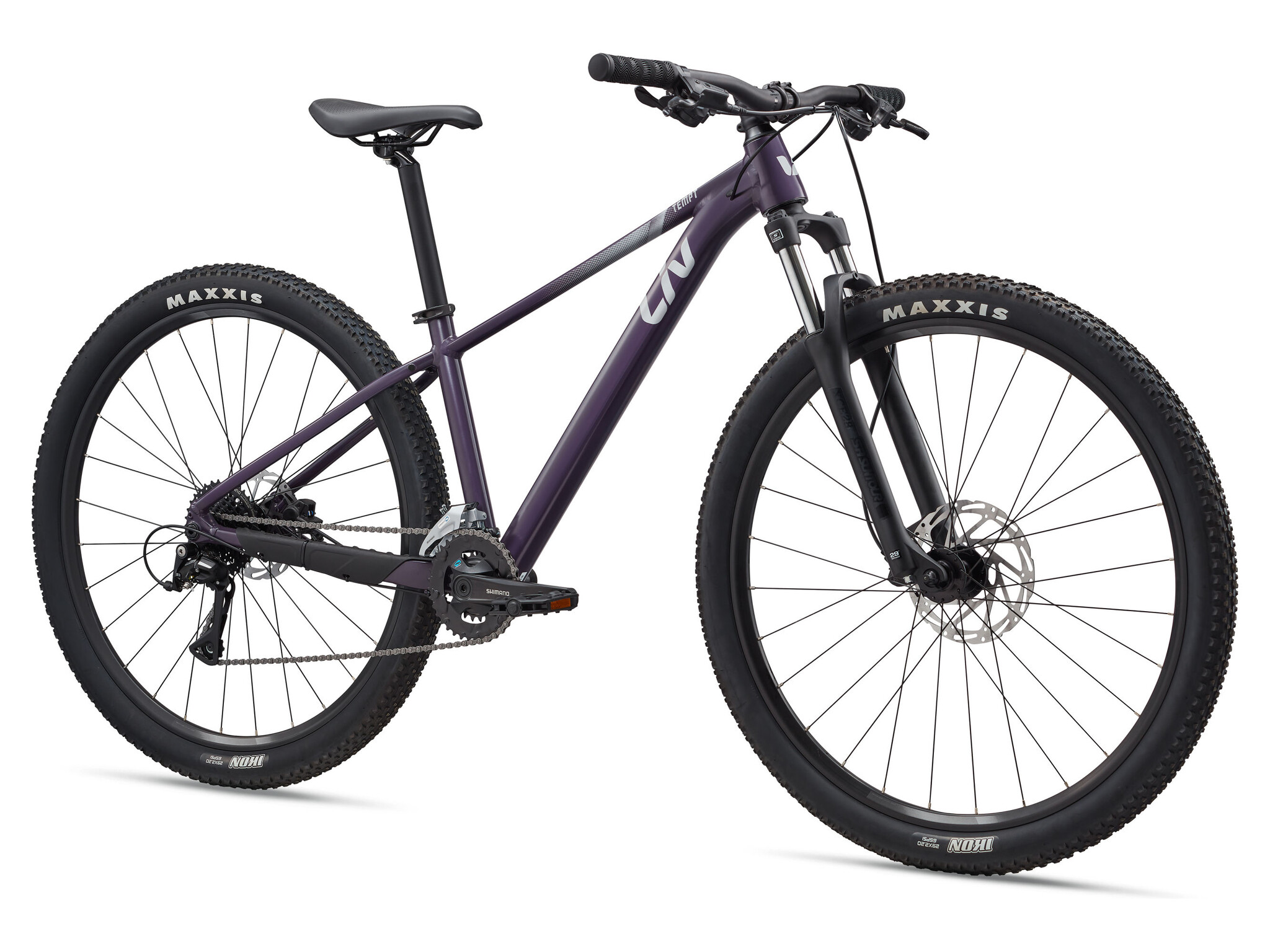

The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Modern MTB Design
Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimised for confident trail riding, with two wheel size options (27.5 or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tyres (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable
The all-new ALUXX aluminium frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
| S (29") | M (29") | ||
|---|---|---|---|
| A | Seat Tube Length (mm) | 380 | 410 |
| A1 | Seat Post Insertion Depth (mm) | 330 | 360 |
| B | Seat Tube Angle | 74.5° | 74.5° |
| C | Top Tube Length (mm) | 571 | 599 |
| D | Head Tube Length (mm) | 90 | 100 |
| E | Head Tube Angle | 67.5° | 67.5° |
| F | Fork Rake (mm) | 44 | 44 |
| G | Trail (mm) | 108.9 | 108.9 |
| H | Wheelbase (mm) | 1129 | 1158 |
| I | Chain Stay Length (mm) | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 |
| K | Stack (mm) | 593 | 602 |
| L | Reach (mm) | 407 | 432 |
| M | Stand Over Height (mm) | 689 | 708 |
| O | Stem Length (mm) | 40 | 50 |
| P | Crank Length (mm) | 170 | 170 |
| Q | Wheel Size | 29" | 29" |
-
Sizes29": S, M
-

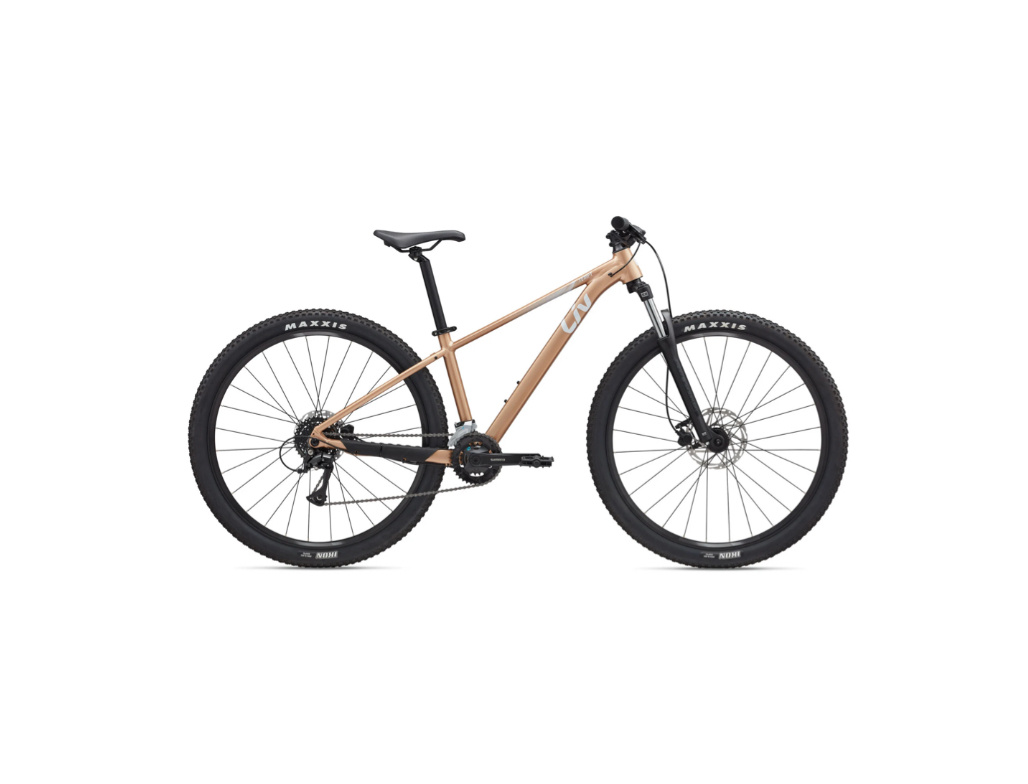

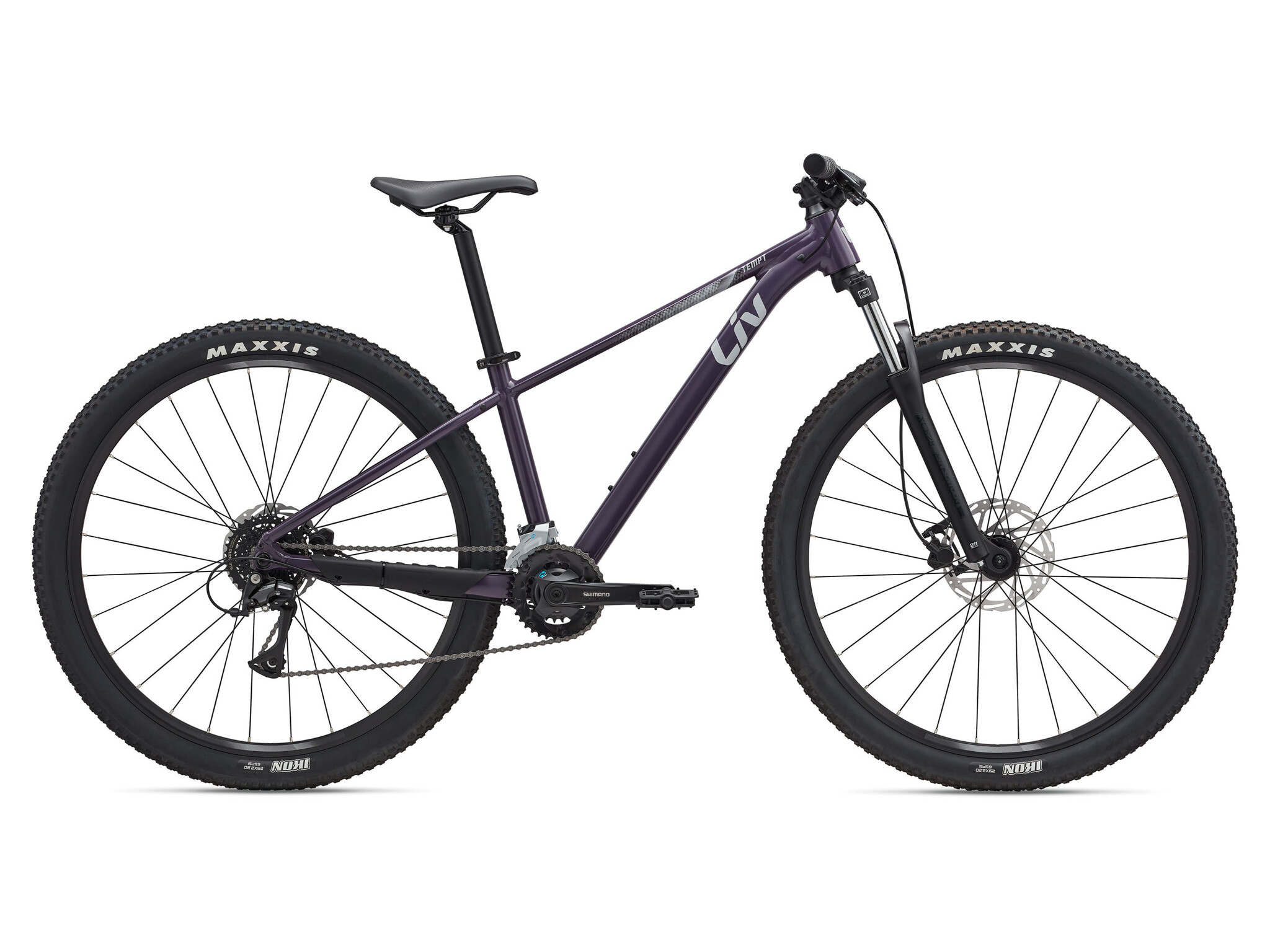

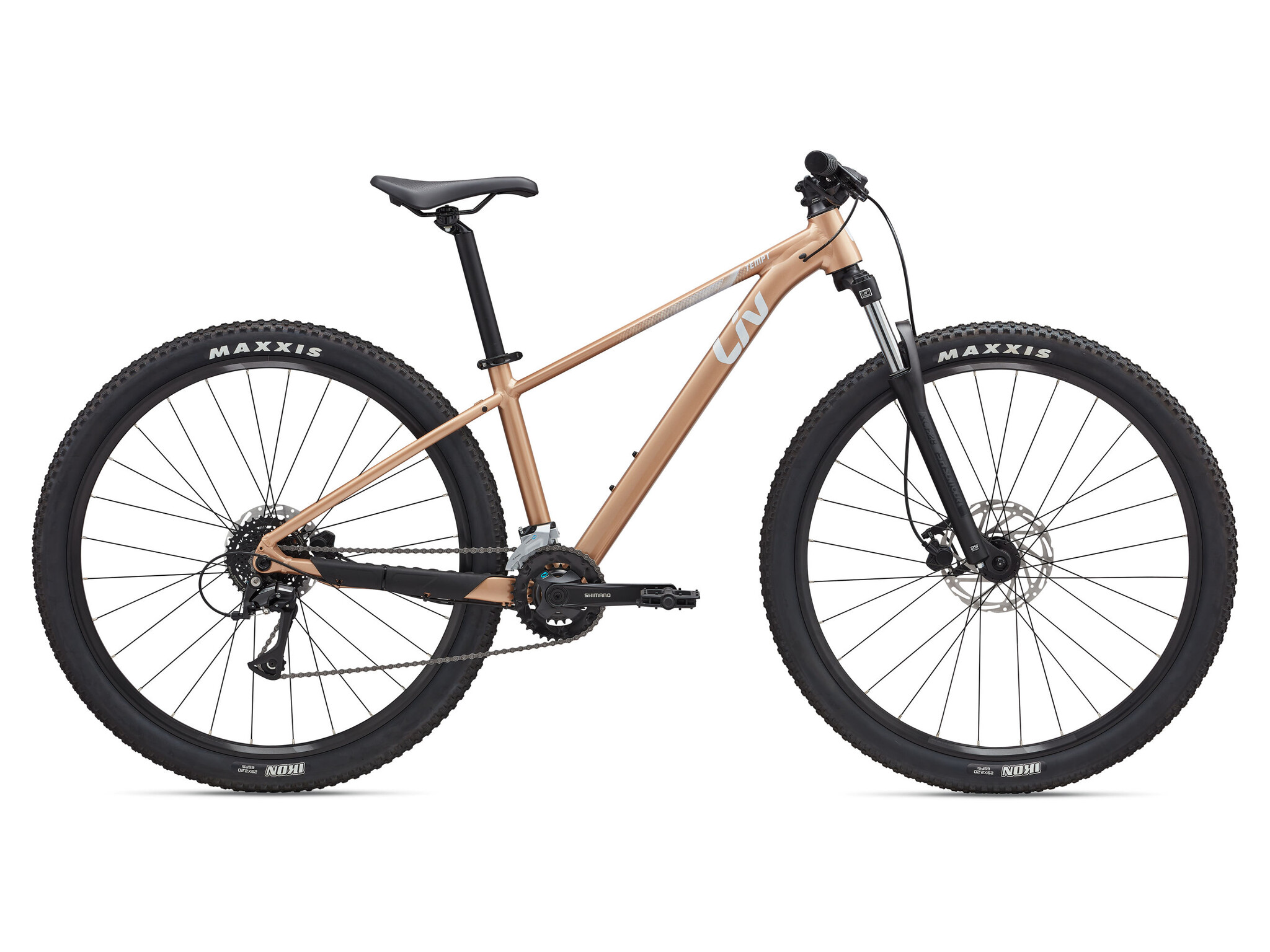

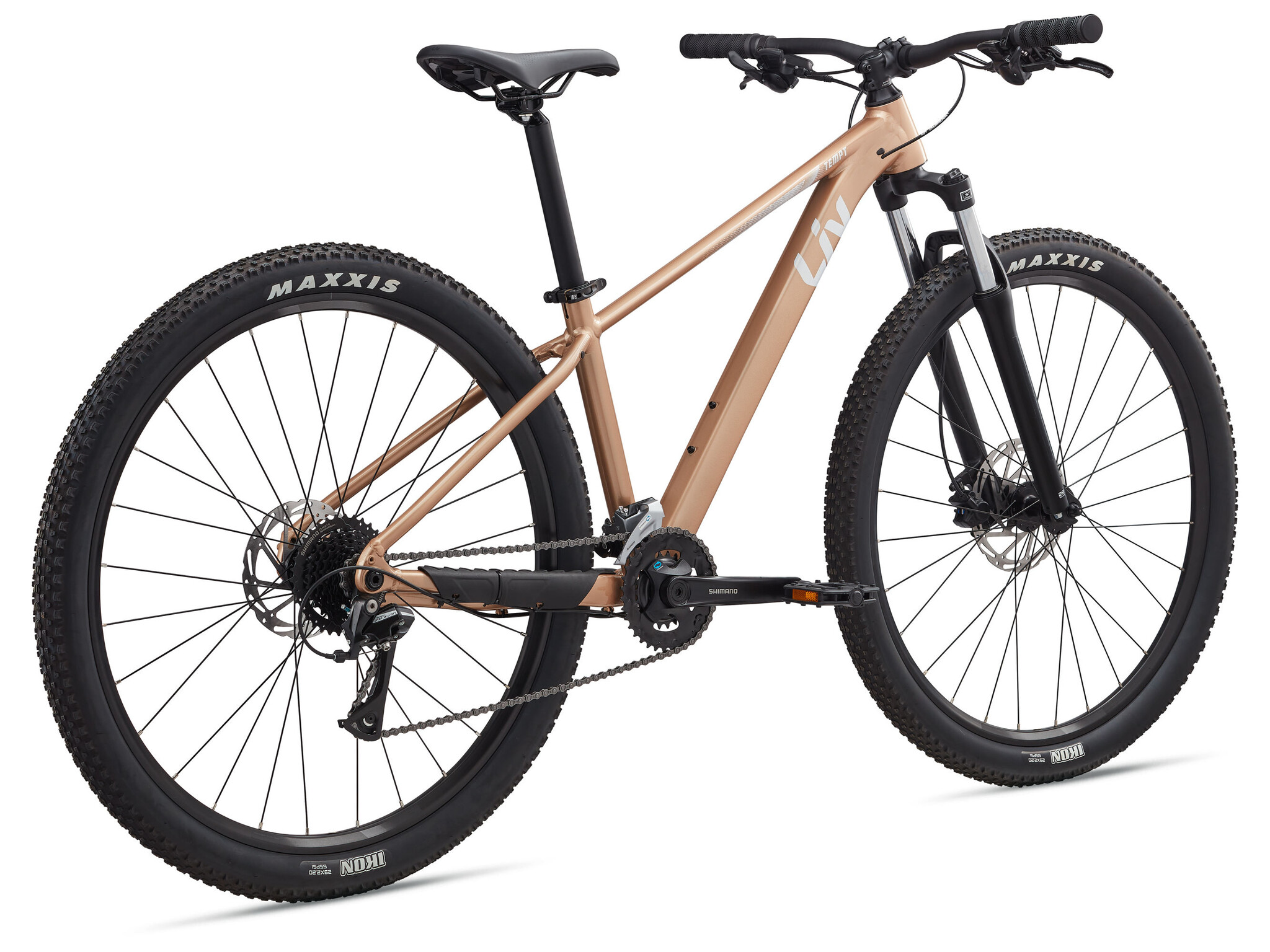

ColoursTyrian Purple, Golden Wheat
-

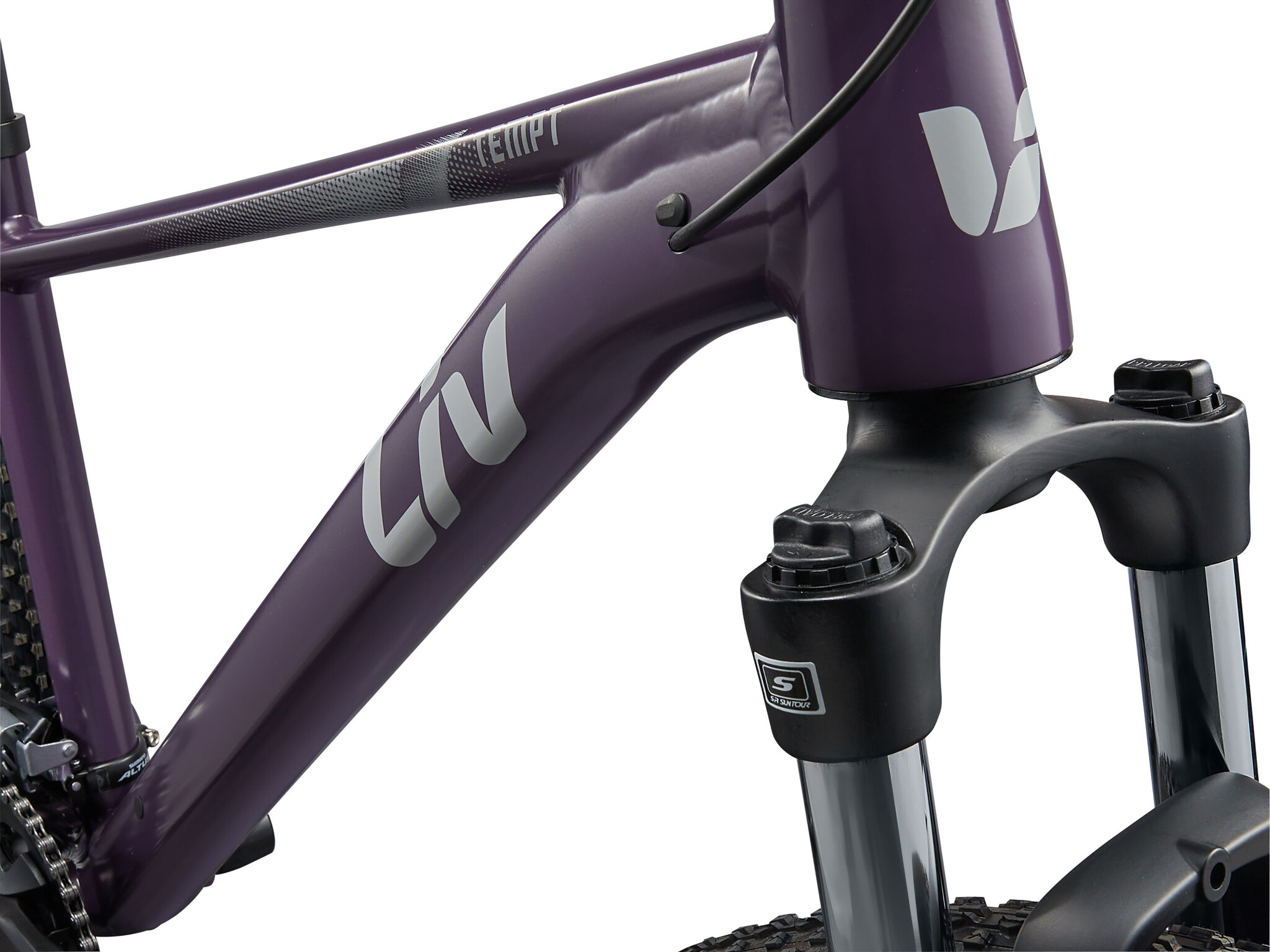

FrameALUXX-grade aluminium, disc
-

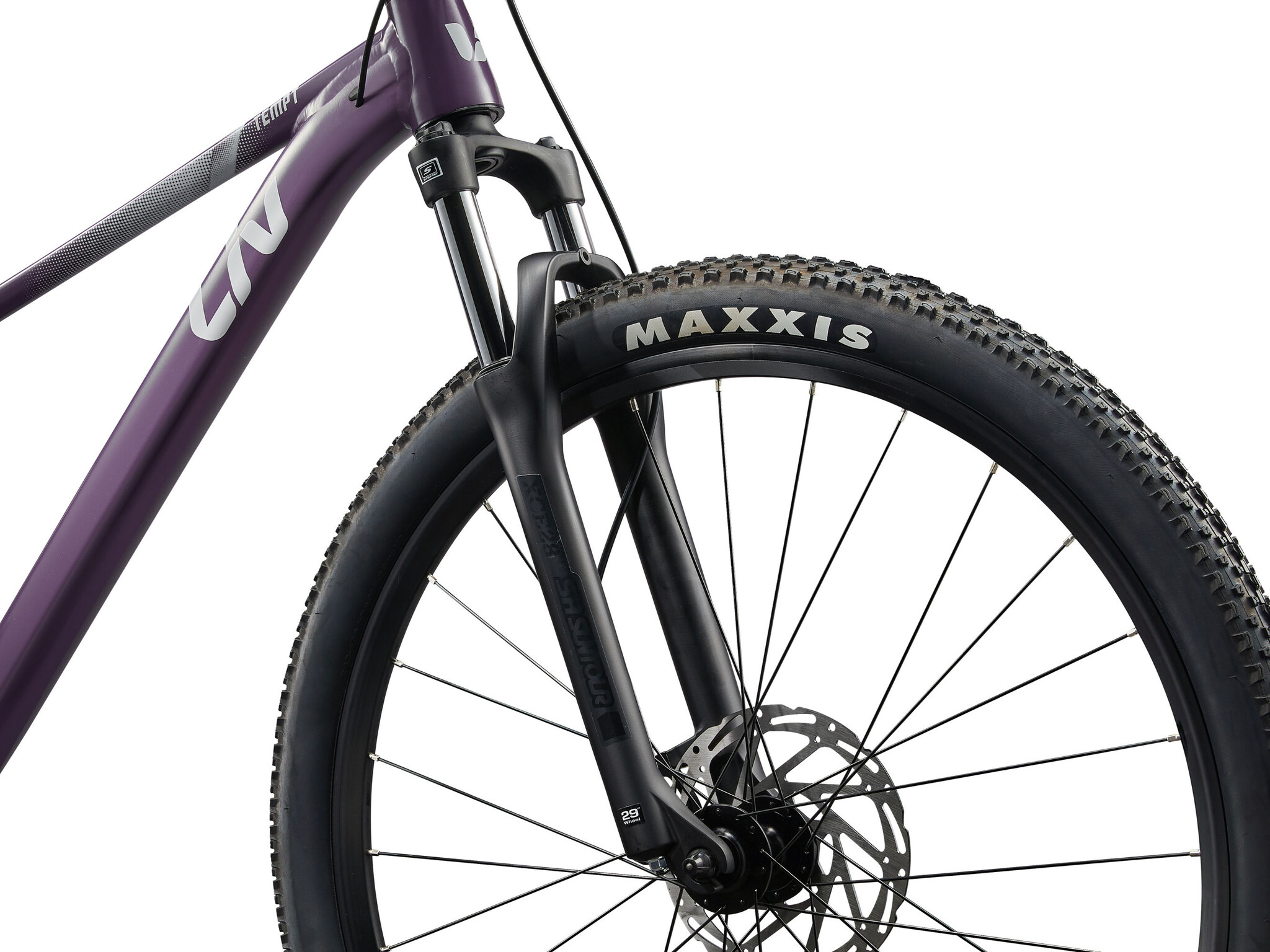

ForkSR Suntour XCE 28, coil spring, 100mm, QR, steel steerer
-
ShockN/A
-

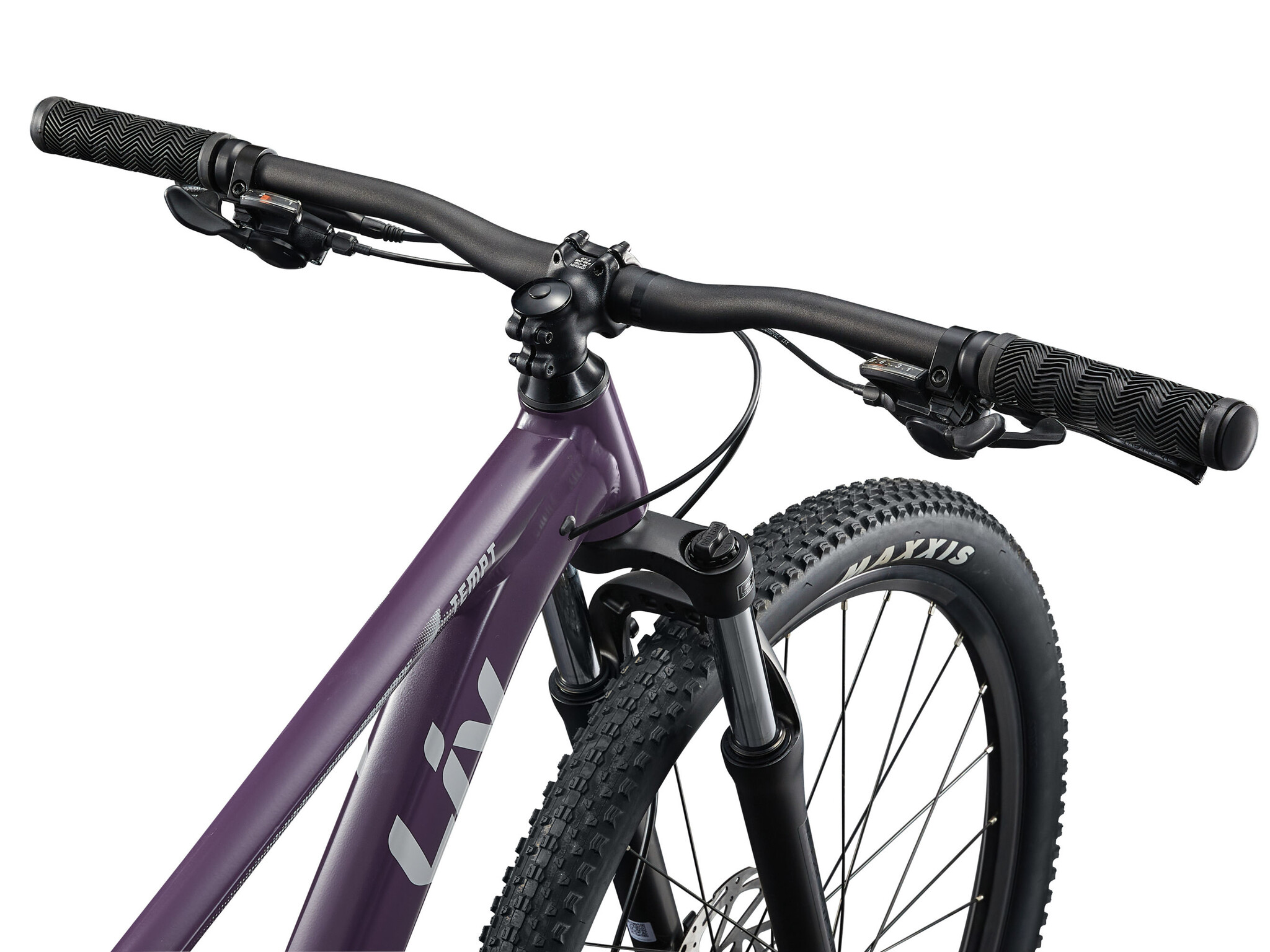

HandlebarGiant Connect Trail, 31.8mm
-
GripsGiant Sole-O
-
StemGiant Sport, 7-degree S: 40mm M: 50mm
-
SeatpostGiant Sport, 30.9mm
-

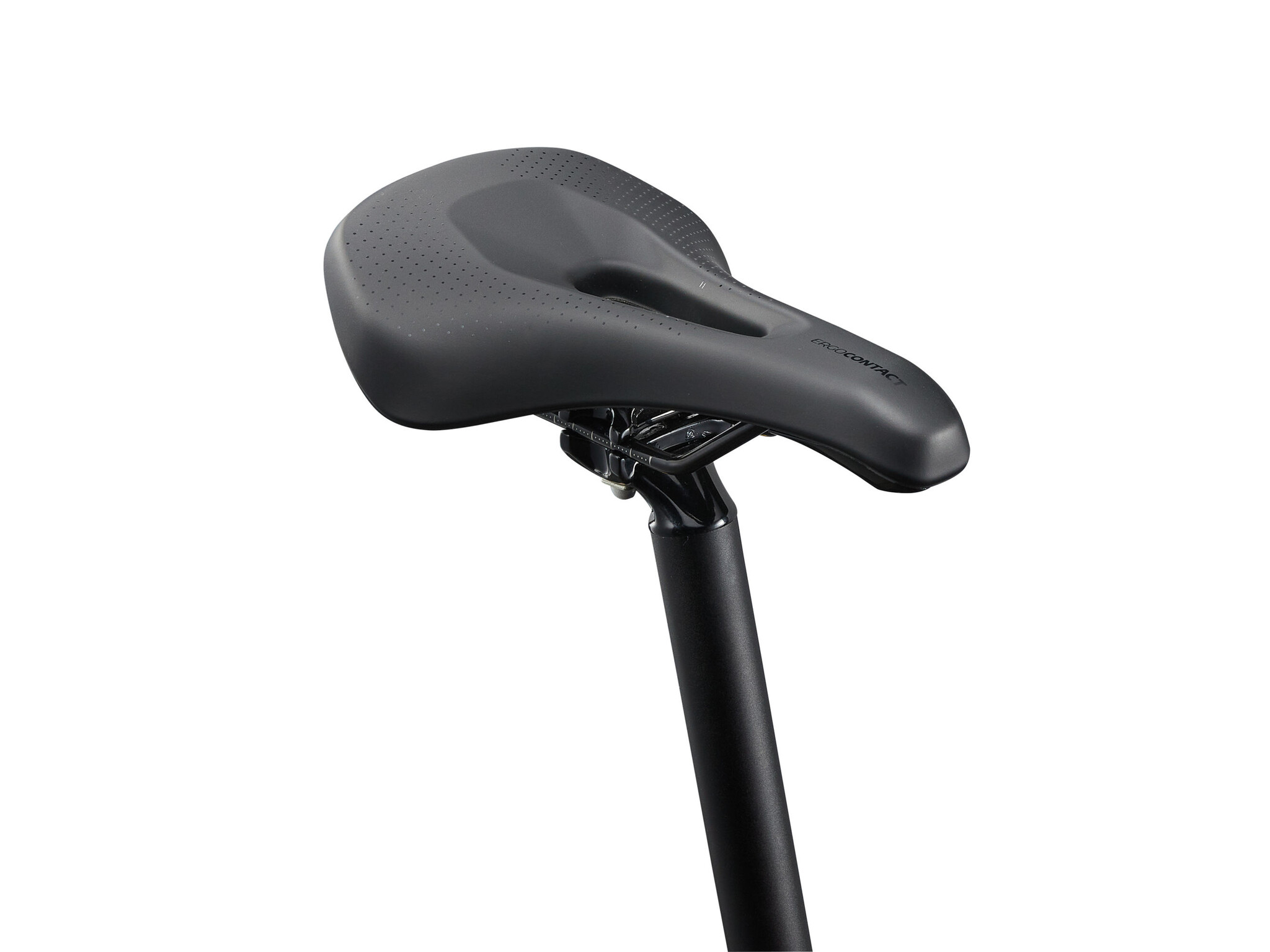

SaddleLiv ErgoContact Trail
-
PedalsMTB caged
-
ShiftersShimano Acera, 2x8
-

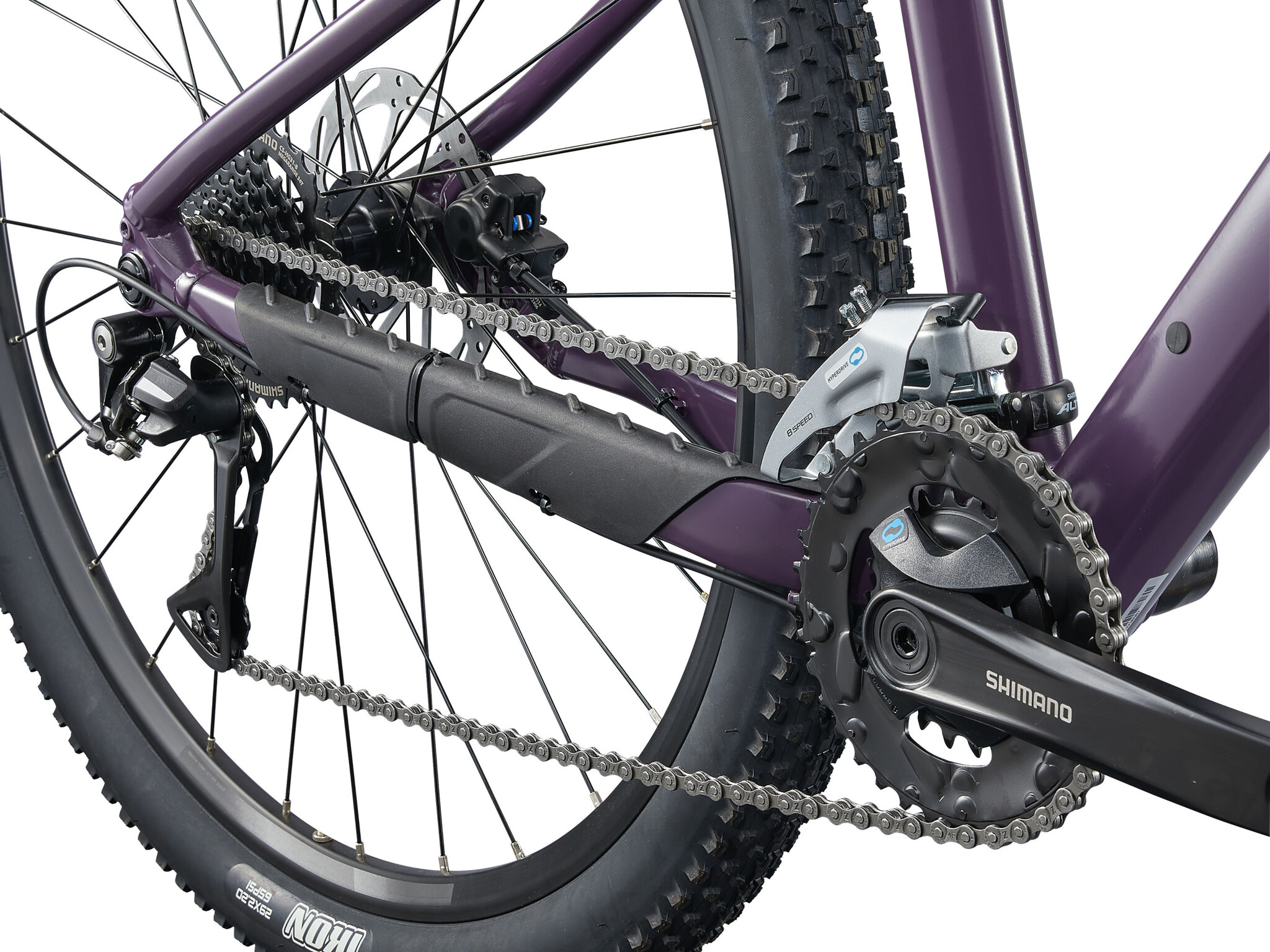

Front DerailleurShimano Acera
-
Rear DerailleurShimano Acera
-
BrakesTektro TKD149, hydraulic, Tektro rotors [F]180mm, [R]160mm
-
Brake LeversTektro TKD143
-
CassetteShimano HG31, 11x34
-
ChainKMC 8.3
-
CranksetShimano FC-M315, 22/36t S: 170mm M: 170mm
-
Bottom BracketCartridge
-
RimsGiant GX03V 29 alloy, double wall
-
HubsAlloy, sealed
-
SpokesStainless, 14g
-
TiresMaxxis Ikon 29x2.2", wire bead
-
Extras2.4" max tyre size, 32t max chainring size
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
