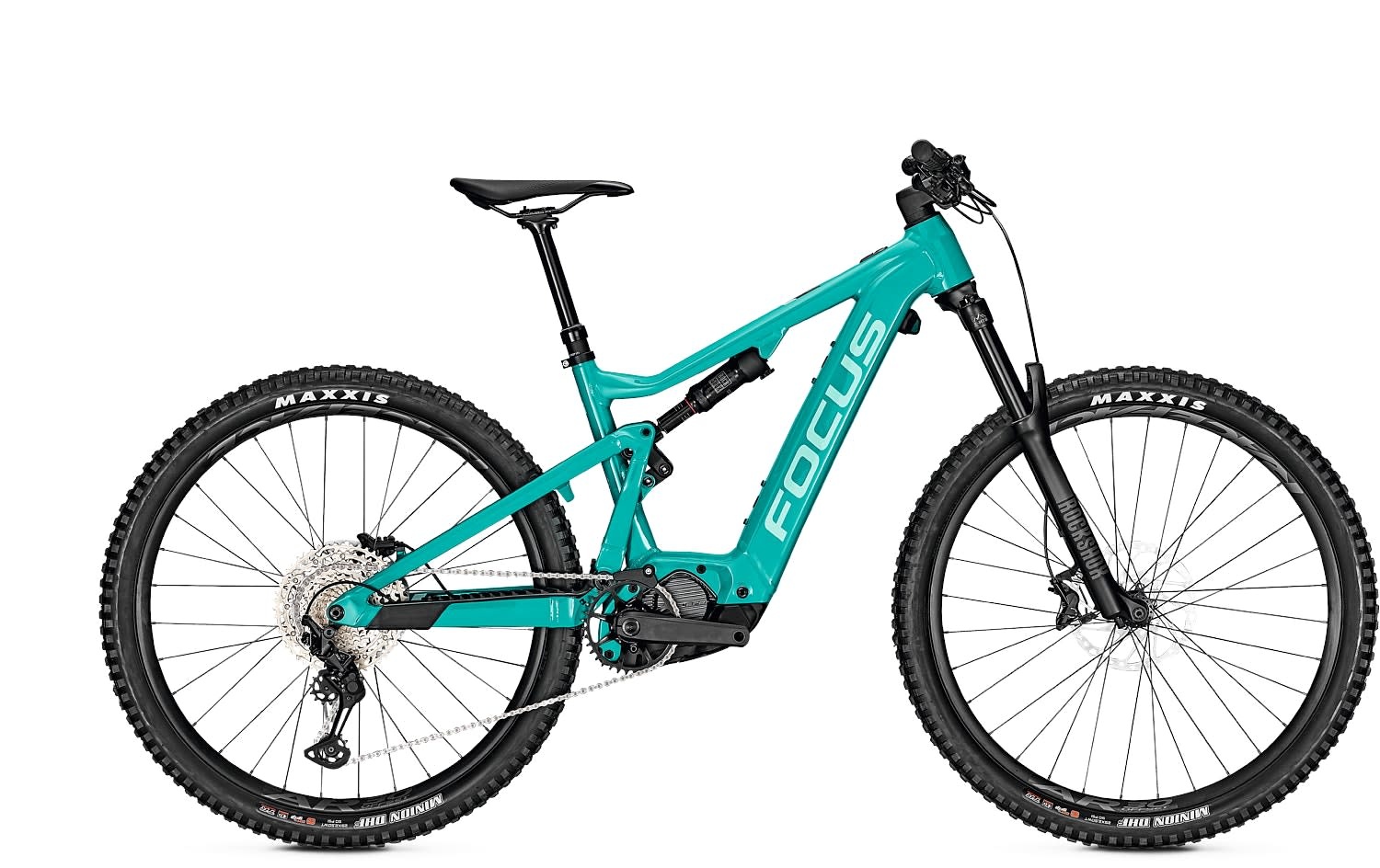

2023 Focus Jam 2 7.8 Blue Green

Product details

• MORE DYNAMIC AND RANGE, BUT LESS WEIGHT

  Shimano's EP8 e-drive offers dynamic power and a lightweight system that supports the JAM² 7.8's agile geometry. Furthermore, our specially developed, integrated, yet removable battery supports your super long rides with 720 Wh. Additionally, a USB C port on the top tube gives you the opportunity to charge your devices.

• OPTIMIZED KINEMATICS FOR STRONG PROGRESSION

  With the upgrade of our well-known F.O.L.D. kinematics, your JAM² 7.8 is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. Especially e-mountain bikes with their additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM² 7.8 gives you more space to play on the trail.

• MORE FUN ON THE TRAILS

  Riding performance first. The JAM² 7.8 will make your ride better – every time. An agile, nimble geometry in a slim, compact design will push you over all kind of trails whether technical or flow. The FLIP CHIP at your JAM² 7.8's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up goal making it even more downhill-oriented. Additionally, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. On top, all your essentials fit in the tool bag between top and down tube.

• SPECIFICATION



  FRAME MATERIAL

  Aluminium



  FRAME

  7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm



  FORK

  Rock Shox 35 Gold RL 29 Boost * / DVO Diamond E3*, 110x15 mm, 44 mm rake



  TRAVEL OF SUSPENSION FORK

  150 mm



  SHOCK

  Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing



  MOTOR

  Shimano Steps EP8, 36V / 250 W / 85 Nm



  BATTERY WATT-HOURS

  720 Wh



  BATTERY AMPERE HOURS

  20,8 Ah



  DISPLAY

  Shimano SC-E5003



  SHIFTER

  Shimano SLX M7100, 12-speed



  REAR DERAILLEUR

  Shimano SLX M7100, 12-speed



  SPROCKET

  Shimano Deore CS-M6100, 12-speed



  CHAIN

  Shimano CN-LG50



  CRANKSET

  Samox EC40 ISIS



  TRANSMISSION OF DRIVE

  front: 36, rear: 10-51



  BOTTOM BRACKET

  Integrated in Drive Unit



  HANDLEBAR

  Aluminium, 800 mm, rise: 30 mm, backsweep: 9°



  STEM

  FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium



  HEADSET

  ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset



  SADDLE

  FOCUS Race SL



  SEATPOST

  Post Moderne dropper post PM-214, 34.9 mm



  BRAKE CALIPER

  Shimano MT520, hydraulic disc brake



  BRAKE LEVER

  Shimano MT520



  BRAKE

  Disc



  RIMS

  RaceFace AR30 Offset



  REAR HUB

  Shimano MT410, 12x148 mm



  FRONT HUB

  Shimano MT410, 15x110 mm



  TIRES

  Maxxis Minion DHF, EXO, 63-622



  GEARS

  12



  BIKE WEIGHT INCL. BATTERY IN KG.

  25,0 kg,25



  SIZE

  39,45,42,47
  * Subject to technical modification without notice. Errors and omissions excepted.** Weight in size M, of standard specification and without pedals.

GEOMETRY
