Sale

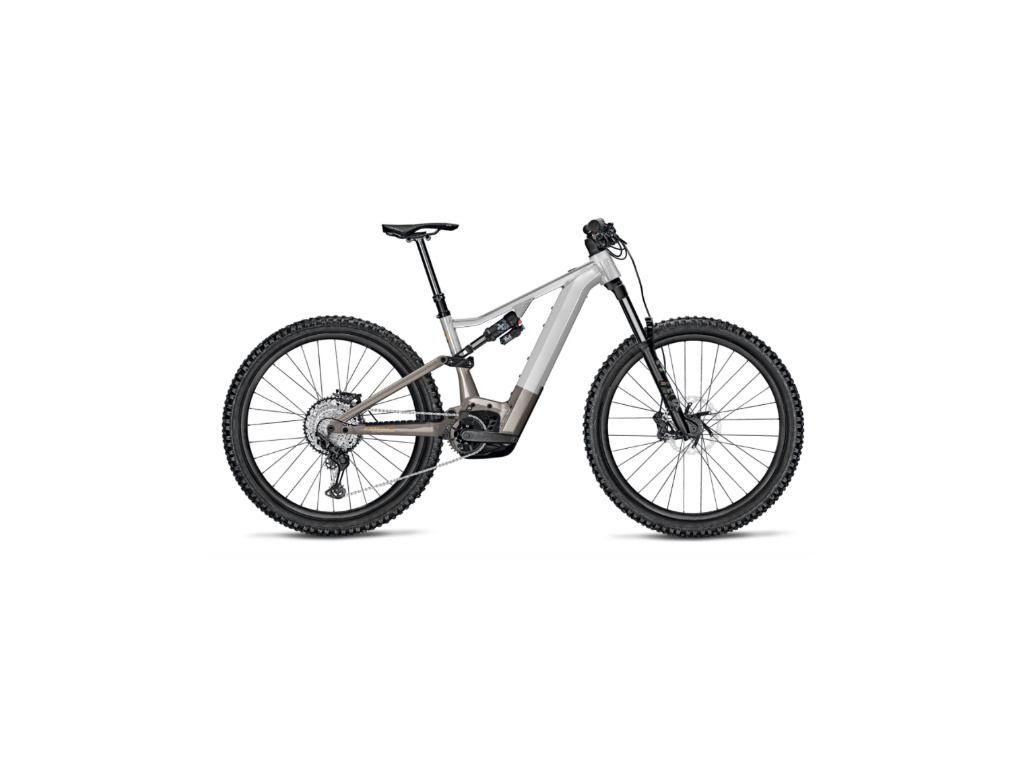

2023 Focus Jam 2 6.9 Lightgrey / Moonstone

SKU: D663003838
$10,999.00$9,299.00
Add to cart
Only a few left
  • Overview
  • Sml, Med, Large, and XL arriving in June.
    Don't miss out and preorder now!!

Product details

CONQUERS NEW MOUNTAINS

  • SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

    Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 6.9 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.

  • GEOMETRY FOR MAXIMUM FUN ON ALL TYPES OF TRAILS

    Battery and drive unit are perfectly integrated into the e-MTB's frame giving the JAM² 6.9 a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the full suspension bike more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 6.9 according to your riding preferences from 65.5° to 64.5°.

  • FULL CONTROL IN ANY SITUATION

    When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 6.9, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.

SPECIFICATION


FRAME MATERIAL
Aluminium

FRAME
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm

FORK
FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake

TRAVEL OF SUSPENSION FORK
160 mm

SHOCK
FOX Float X Performance, 210/55 mm, hardware: 25,0 x 8.0, no Bushing

MOTOR
Bosch Performance CX Smart, 85 Nm, 250 W

BATTERY WATT-HOURS
750 Wh

DISPLAY
Bosch LED Remote + Kiox 300

SHIFTER
Shimano Deore XT M8100, 12-speed

REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed

SPROCKET
Shimano SLX M7100, 12-speed

CHAIN
Shimano SLX CN-M7100, 12-speed

CRANKSET
Samox EC40 ISIS

TRANSMISSION OF DRIVE
front: 36, rear: 10-51

BOTTOM BRACKET
Integrated in Drive Unit

HANDLEBAR
RaceFace Chester 35, aluminium, 780 mm, rise: 35 mm, backsweep: 8°

STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium

HEADSET
ACROS ZS56/ZS60 (ICR), FOCUS C.I.S. Integrated angle headset

SADDLE
Proxim W350

SEATPOST
Post Moderne dropper post PM-214, 34.9 mm

BRAKE CALIPER
Shimano XT M8120, 4 piston

BRAKE LEVER
Shimano XT M8120, 4 piston

BRAKE
Disc

WHEELSET
DT SWISS H1900, 30-622, 15x110 mm / 12x148 mm

TIRES
MAXXIS Minion DHF, 2.6 EXO+ / MAXXIS MINION DHRII, 2,6 EXO+

GEARS
12

BIKE WEIGHT INCL. BATTERY IN KG.

25,7

Reviews

0 stars based on 0 reviews
