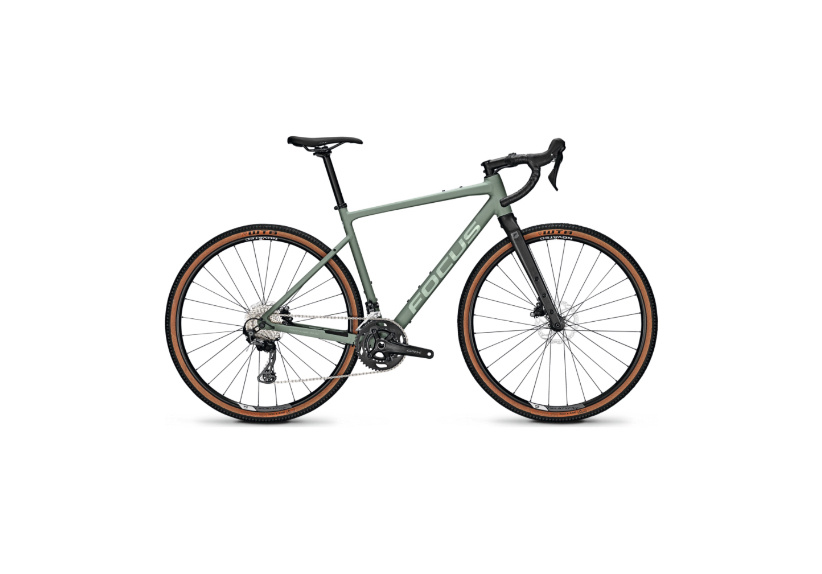

2023 Focus Atlas 6.8 Mineralgreen

SKU: D641019412
$3,299.00$2,969.00
Add to cart
Only a few left

Product details

ATLAS 6.8 FEATURES

ALUMINIUM FRAME AND CARBON FORK WITH INTEGRATED C.I.S. CABLE ROUTING PLUS TOP TUBE BAG

SHIMANO GRX600 2X11 GROUPSET WITH SPECIAL GRAVEL ERGONOMICS FOR RELIABLE SHIFTING AND SAFE BRAKING EVEN ON ROUGH TERRAIN



PUSHES BOUNDARIES

  • COMFORT AND CONTROL ON ANY TERRAIN

    Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with C.I.S. cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.

  • HUGE TYRE CLEARANCE

    The ATLAS comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 53 mm. Therefore, you have plenty of opportunities to specificate your ATLAS appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.

  • VARIOUS OPTIONS TO MOUNT EQUIPMENT

    Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the ATLAS with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment. Every ATLAS 6.8 comes with a top tube bag. It can store all your necessities that you need during the ride.

SPECIFICATION


FRAME
Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing

FORK
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points

SHIFTER
Shimano GRX ST-RX600, 11-speed

FRONT DERAILLEUR
Shimano GRX FD-RX810

REAR DERAILLEUR
Shimano GRX RD-RX810, 11-speed

SPROCKET
Shimano 105 R7000, 11-speed

CHAIN
Shimano CN-HG601, 11-speed

CRANKSET
Shimano GRX FC-RX600 * , 11-speed / Easton EA90 * , 11-speed

BOTTOM BRACKET
BSA

TRANSMISSION OF DRIVE
vorne: 46/30, hinten: 11-34

HANDLEBAR
FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10°

STEM
Aluminium, 31,8 mm, 6°

HEADSET
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.

SADDLE
WTB SL8

SEATPOST
Aluminium, 27.2 mm, 0 mm set-back

BRAKES
Shimano GRX ST-RX400 + BR-RX400

BRAKE LEVER
Shimano GRX BL-RX600, 11-speed

BRAKE
Disc

WHEELSET
Novatec 25 Elite, 25-622, disc, center lock, front: 110x12 mm, rear: 148x12 mm

TIRES
WTB Riddler, 700 x 45C, folding

GEARS
22

BIKE WEIGHT INCL. BATTERY IN KG.
10,8

SIZE
51,48,57,54,60
