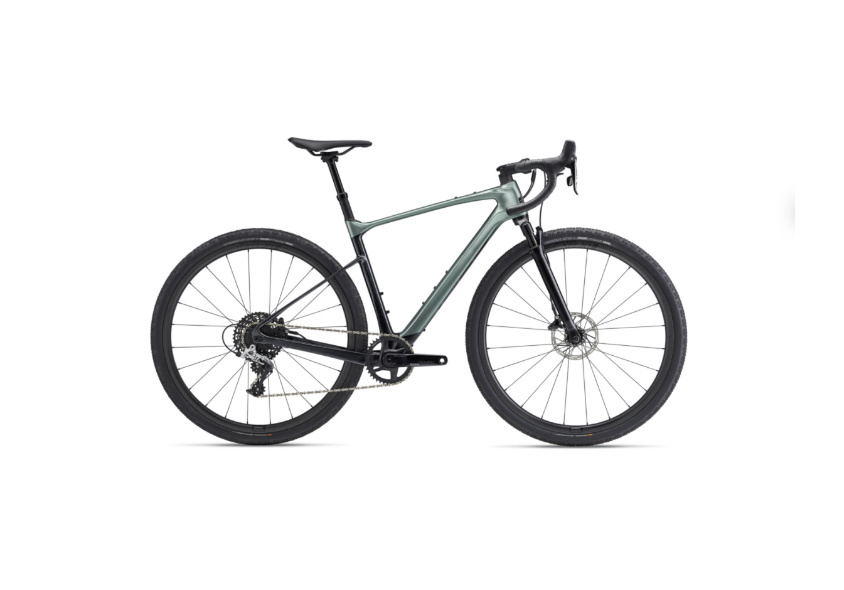

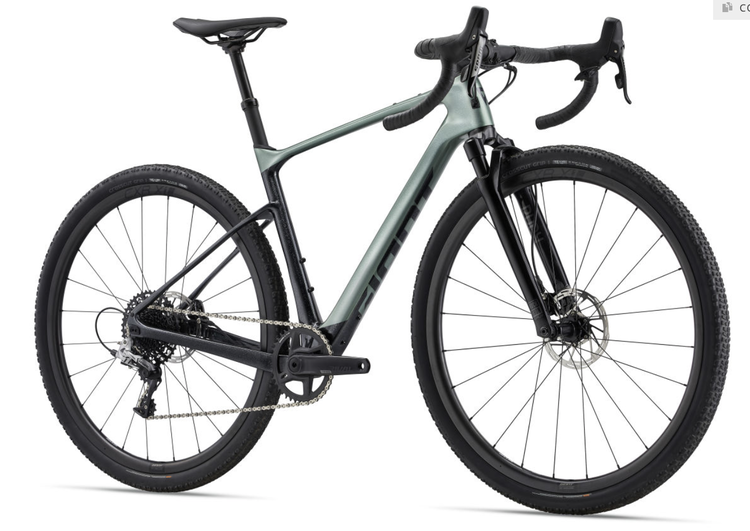

2023 Giant Revolt X Advanced Pro 2 Gloss Misty Forest

Product details

Smooth control

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can use the included dropper seatpost for maximum confidence, or switch to a proprietary D-Fuse seatpost or a standard 30.9mm round seatpost.

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Gloss Misty Forest
• Frame
  Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
• Shock
  N/A
• Handlebar
  Giant Contact SL XR D-Fuse, 31.8mm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact
• Seatpost
  Postmodern, dropper, 30.9mm with 25mm of suspension
• Saddle
  Giant Approach SL
• Pedals
  N/A
• Shifters
  SRAM Rival 1, 1x11
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM Rival 1
• Brakes
  SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Rival 1, left lever dropper switch
• Cassette
  SRAM PG-1130, 11-speed, 11x42
• Chain
  SRAM PC-1130
• Crankset
  SRAM Rival D1 DUB, 40t
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
• Hubs
  [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, 36t ratchet system, CenterLock, 12mm thru-axle
• Spokes
  Sapim Laser
• Tires
  Giant CrossCut Grip 1, 700x45c, tubeless
• Extras
  Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
