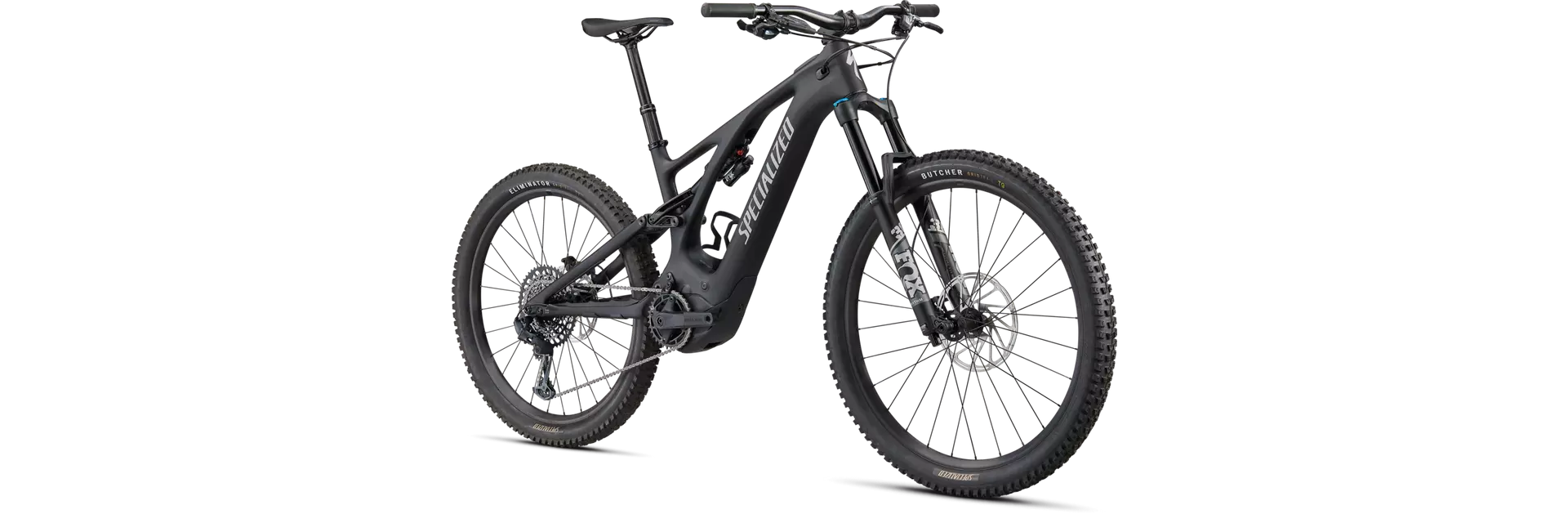

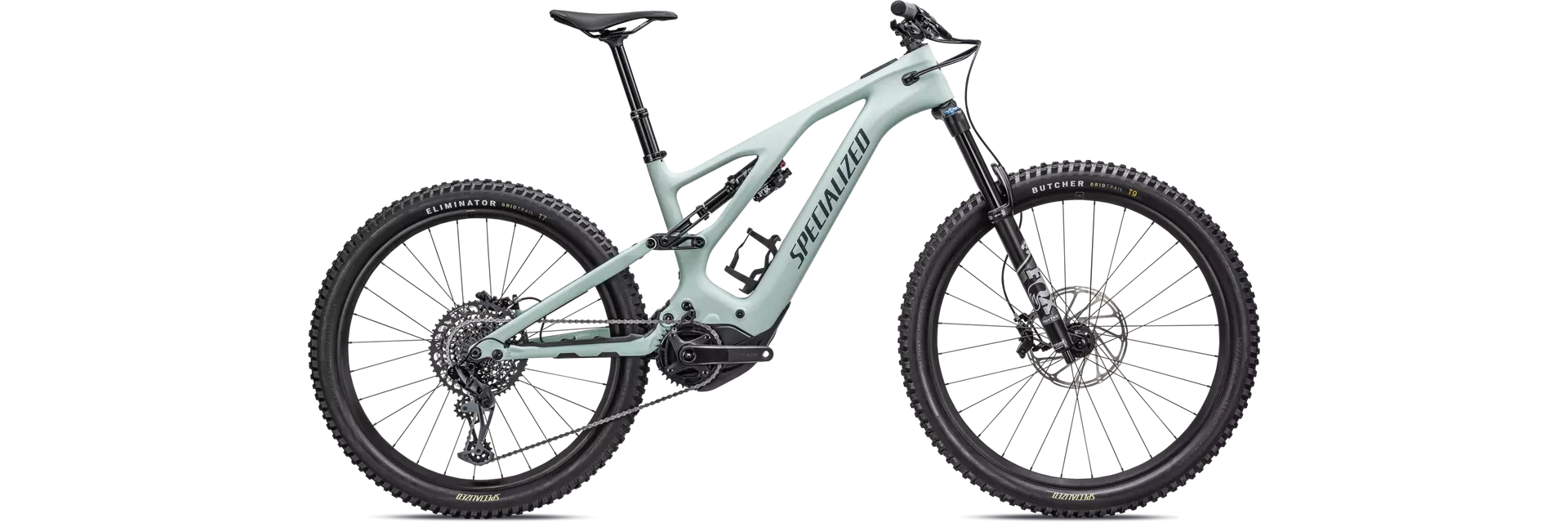

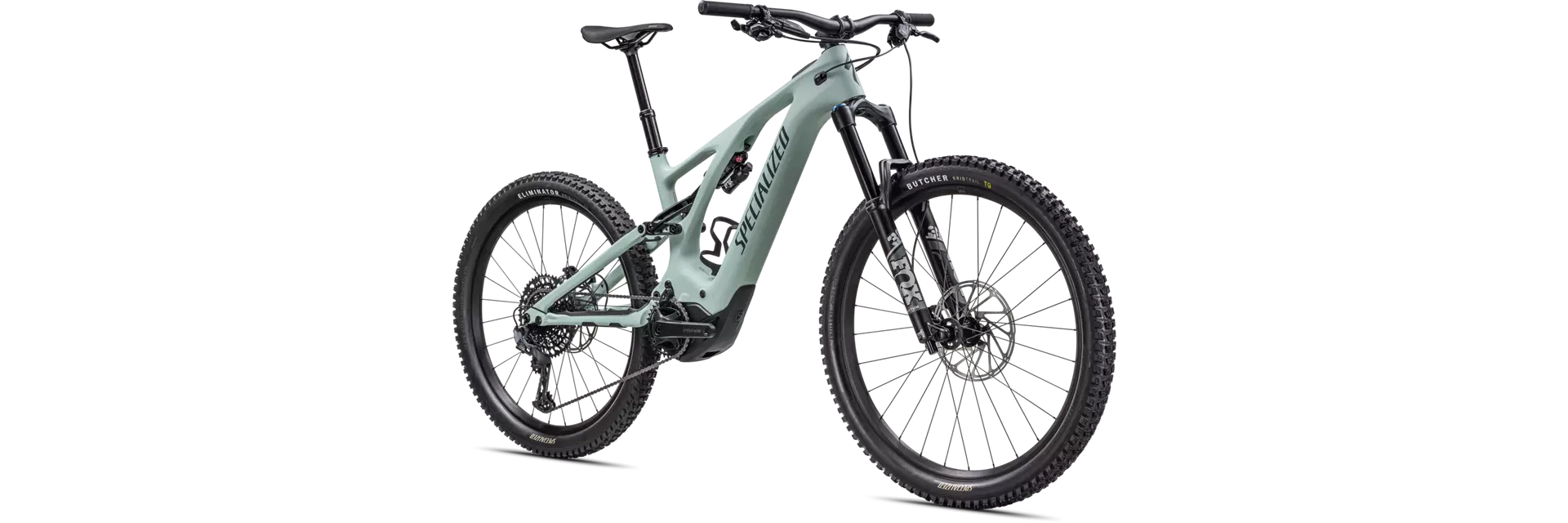

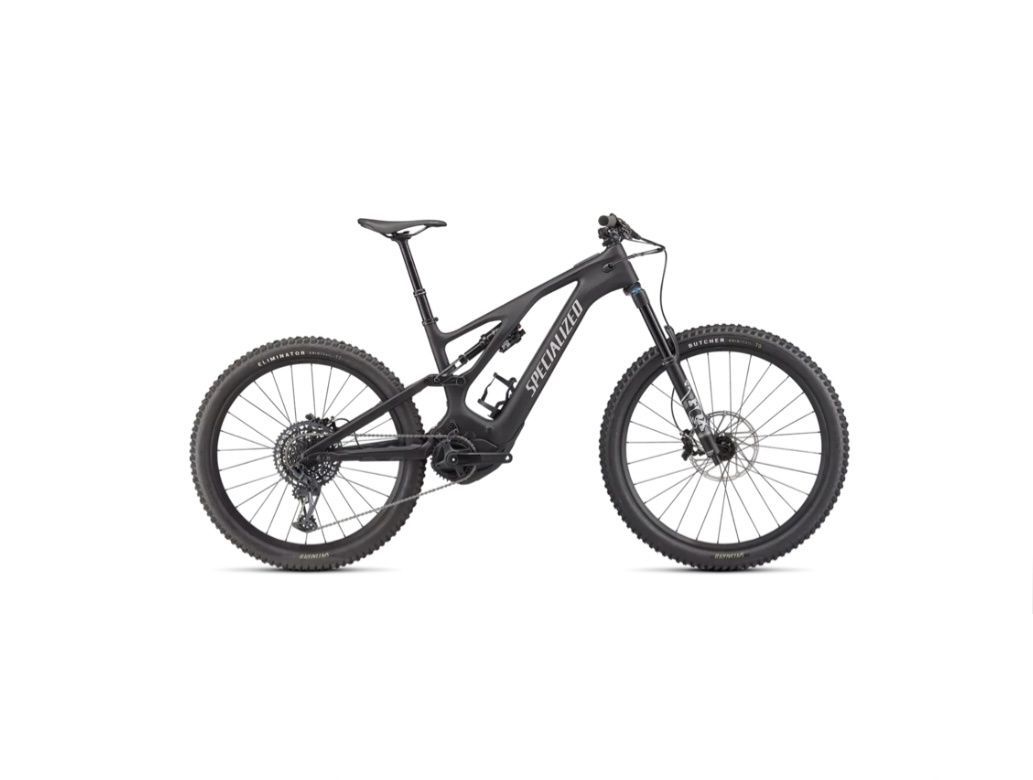

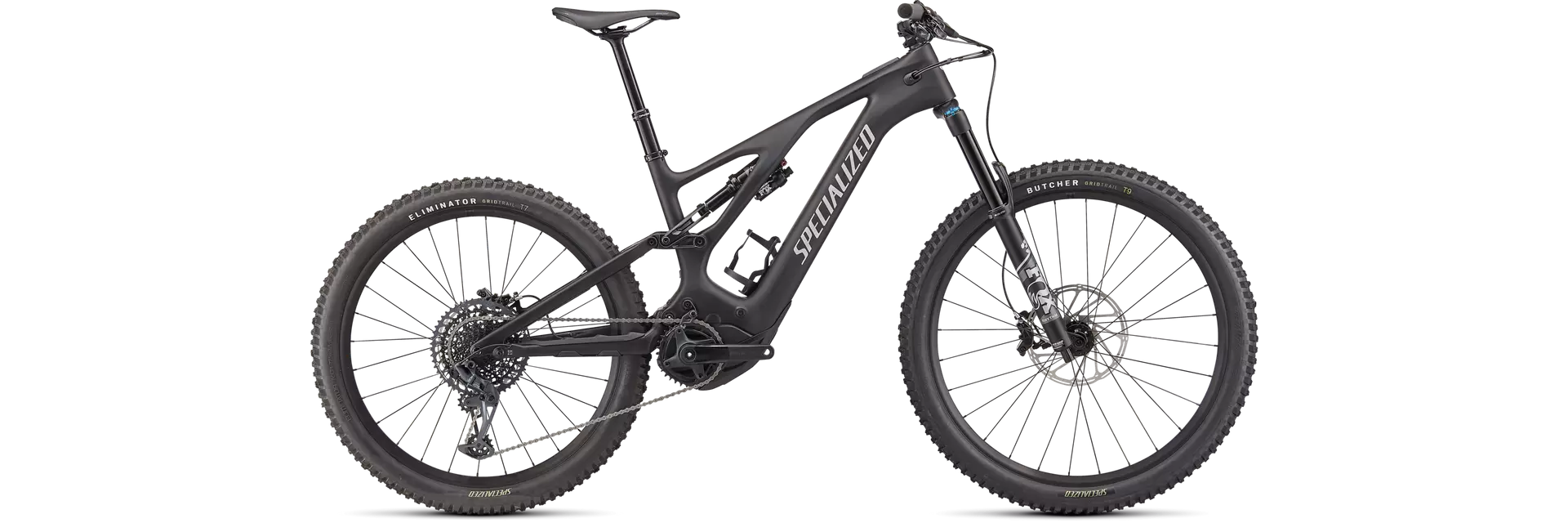

2023 Specialized Turbo Levo Comp Carbon

$12,600.00$8,699.00
Add to cart
Only a few left
  • Overview
  • > Shipping available across Australia
    > If your colour/size states " on backorder", this means the bike is available in warehouse and we can have the bike ready between 2-3 days

Product details

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM GX/NX drivetrain, trail-taming Fox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
  • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

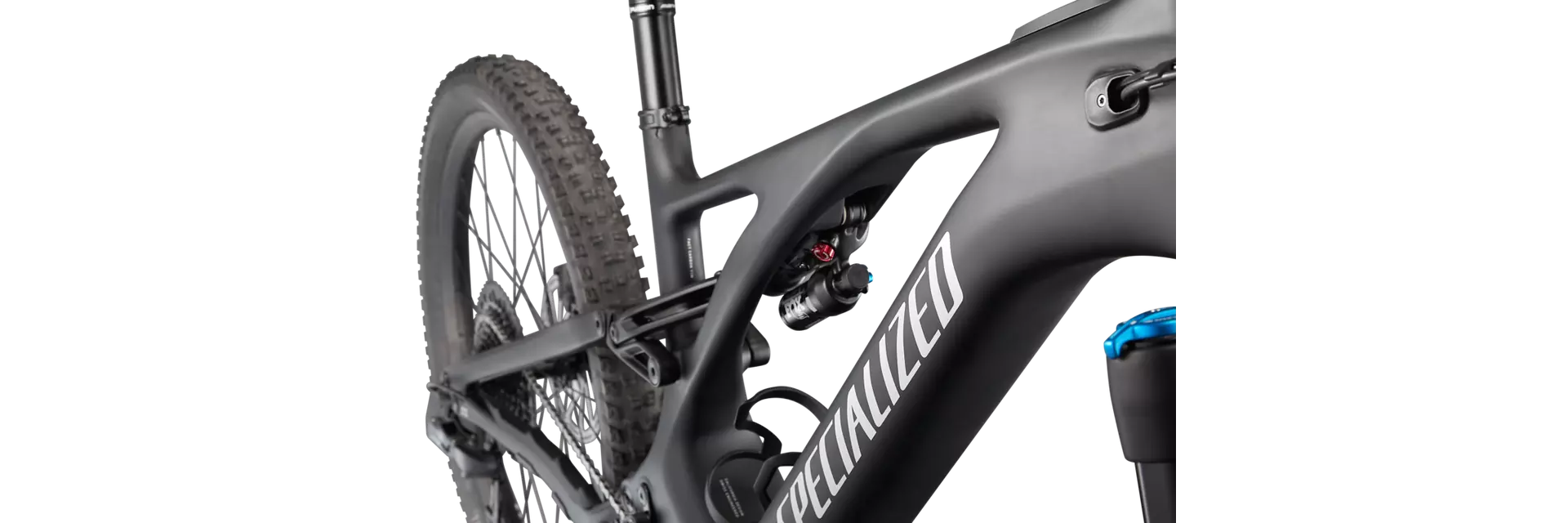

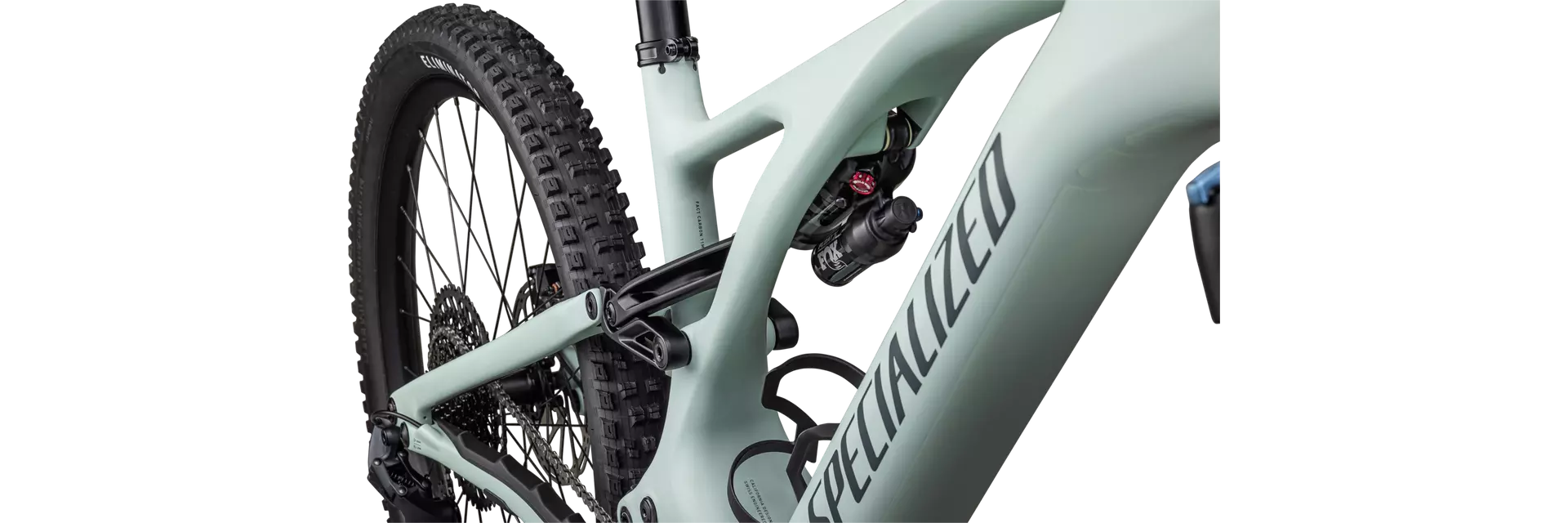

  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

Specifications

E-bike
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips
Specialized Trail Grips

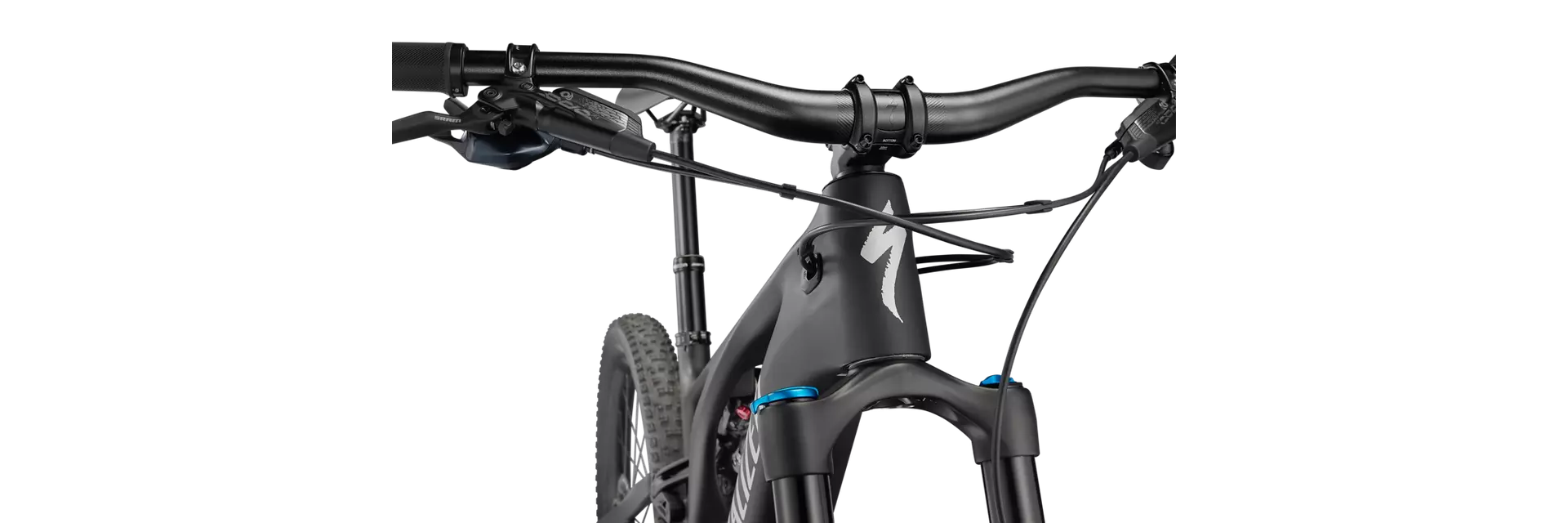

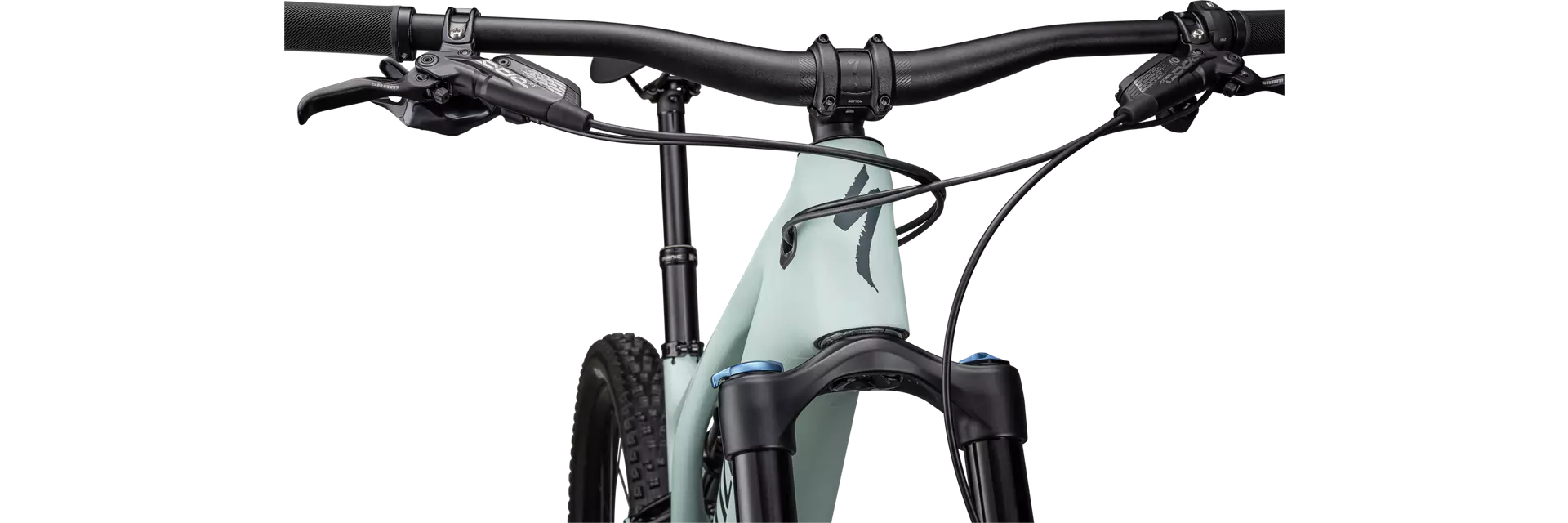

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Frameset
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension
Rear Shock
FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Fork
Fox 36 Rhythm, 29", 44mm offset, Grip damper, S1: 150mm, S2-S6: 160mm travel
Brakes
Rear Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm
Drivetrain
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Chain
SRAM NX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34t, steel
Cassette
Sram XG-1275, 12-speed, 10-52t
Wheels & tires
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
Accessories
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Weight
Weight
22.8kg (50 lb, 4.2 oz)
Weight Size
S4
  S1 S2 S3 S4 S5 S6
Crank Length 160 160 160 160 160 160
Handlebar Width 780 780 780 780 780 780
Stem Length 40 40 40 40 50 50
Saddle Width 155 155 143 143 143 143
Seatpost Length 100 125 150 170 170 190
Stack 605 617 626 635 644 653
Reach 412 432 452 477 502 532
Headtube Length 105 105 115 125 135 145
Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
BB Height 352 350 350 350 350 350
BB Drop 25 27 27 27 27 27
Trail 130 130 130 130 130 130
Fork Length (full) 557 567 567 567 567 567
Fork Rake/Offset 44 44 44 44 44 44
Front Center 738 760 784 814 843 878
Chainstay Length 442 442 442 442 442 442
Wheelbase 1179 1200 1225 1255 1284 1318
Bike Standover Height 752 776 783 787 788 790
Seat Tube Length 380 390 405 425 445 465
Seat Tube Angle 78 77.2 76.7 76.2 76.2 76.2
Max Seatpost Insertion 210 220 240 255 275 295
Min Seatpost Insertion 80 80 80 80 80 80
