Product details
Aero gains
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 1050 g for frame size M with an additional 400 g for the fork.
7 sizes for a perfect fit
The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.
Effortless handling and maximum stiffness
To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
Geometry
| XXS | XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|---|
| Size in mm | 470 | 500 | 520 | 540 | 560 | 580 | 610 | |
| Handlebar width | 400 | 400 | 400 | 420 | 420 | 420 | 440 | |
| Stem length | 80 | 90 | 100 | 110 | 110 | 120 | 120 | |
| Crank length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 | |
| Seatpost length | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| A | Seat tube length | 455 | 475 | 495 | 515 | 535 | 555 | 585 |
| B | Top tube length | 505 | 517 | 530 | 543 | 568 | 582 | 607 |
| C | Head angle (°) | 70 | 71 | 72 | 72.5 | 72.5 | 73 | 73 |
| D | Seat angle (°) | 75 | 74.5 | 74 | 73.5 | 73.5 | 73 | 73 |
| E | Chainstay length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| F | Bottom bracket drop | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| G | Head tube length | 90 | 100 | 115 | 135 | 155 | 175 | 195 |
| H | Fork length | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 |
| I | Fork offset | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| J | Wheelbase | 975 | 976 | 975 | 979 | 1004 | 1008 | 1033 |
| K | Stack | 500 | 513 | 531 | 552 | 571 | 592 | 611 |
| L | Reach | 370 | 375 | 378 | 380 | 399 | 401 | 420 |
| M | Standover height | 746 | 762 | 778 | 795 | 814 | 835 | 857 |
FRAME
Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
FORK
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
SHIFTER
Shimano 105 R7100, 12-speed
FRONT DERAILLEUR
Shimano 105 R 7100
REAR DERAILLEUR
Shimano R7100, 12-speed
CASSETTE
Shimano 105 R7100, 12-speed
CHAIN
Shimano Deore CN-M6100, 12-speed
CRANKSET
Shimano RS510
BOTTOM BRACKET
Shimano Pressfit Road BB86
HANDLEBAR
BBB Basic, aluminium, drop: 125 mm, reach: 70 mm
GRIPS
FOCUS Bartape SL
STEM
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
HEADSET
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
SADDLE
Selle Royal Groove SRX
SEATPOST
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm
BRAKE
Shimano 105 R7025
FRONT BRAKE DISC
160 mm
REAR BRAKE DISC
160 mm
WHEELSET
Alexrims Boondocks 5, 20-622, 12x100 mm / 12x142 mm, height: 26 mm
WHEEL SIZE
28"
REAR WHEEL SIZE
28"
FRONT TYRE
Vittoria Zaffiro Pro , 700 x 28C, Folding
REAR TYRE
Vittoria Zaffiro Pro , 700 x 28C, Folding
WEIGHT
8.85
PERMISSIBLE SYSTEM WEIGHT
110
Add your review

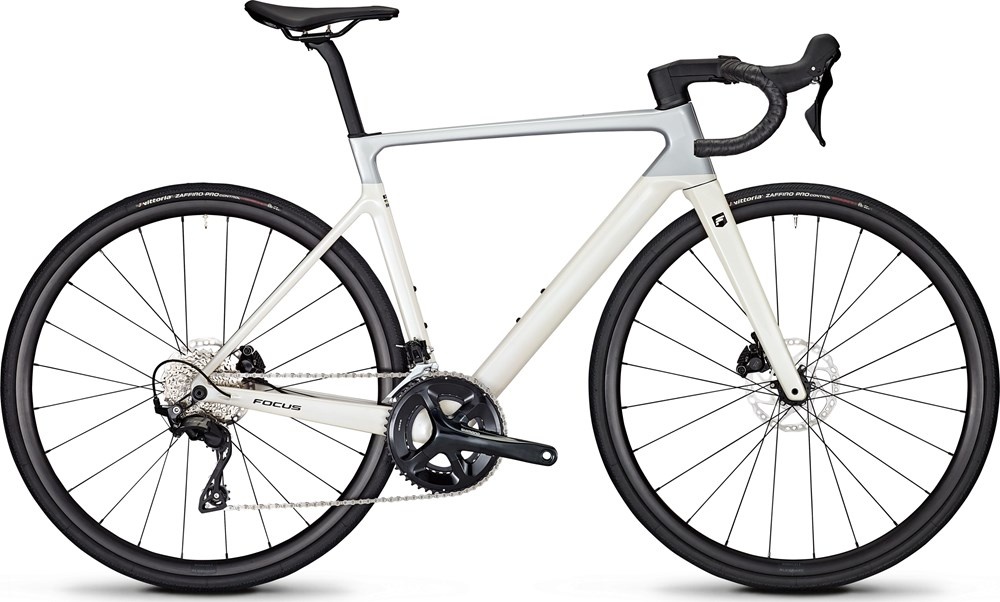

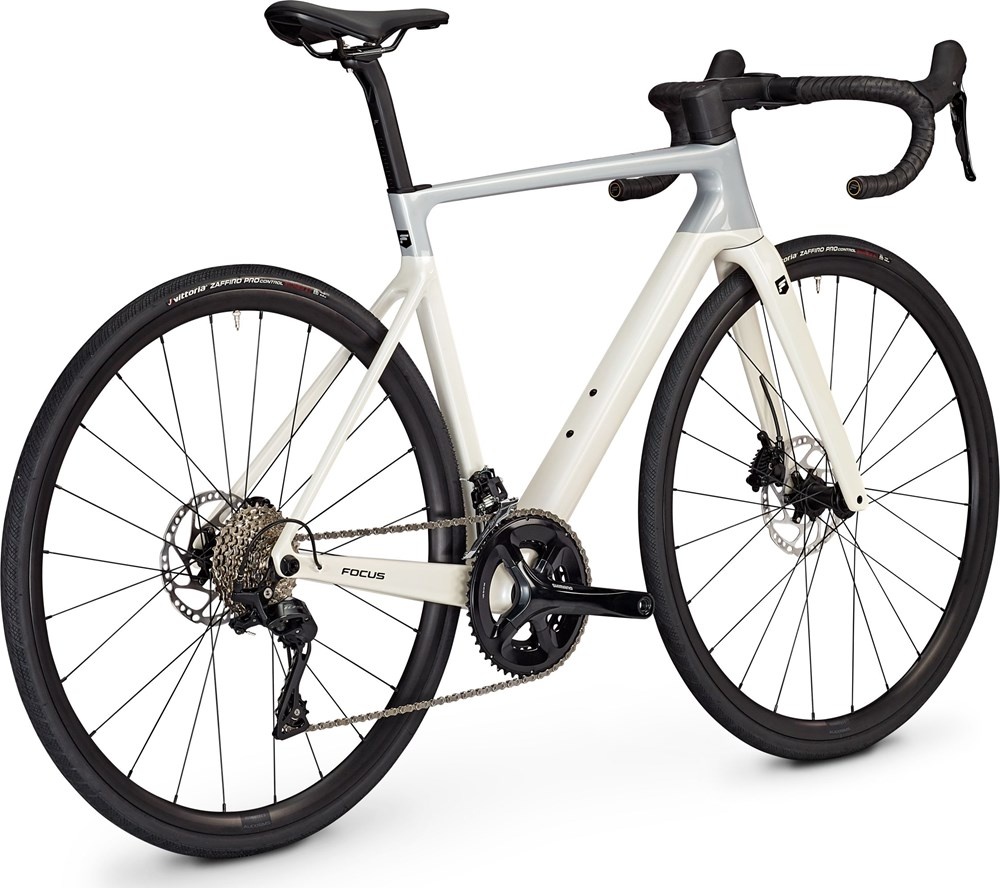

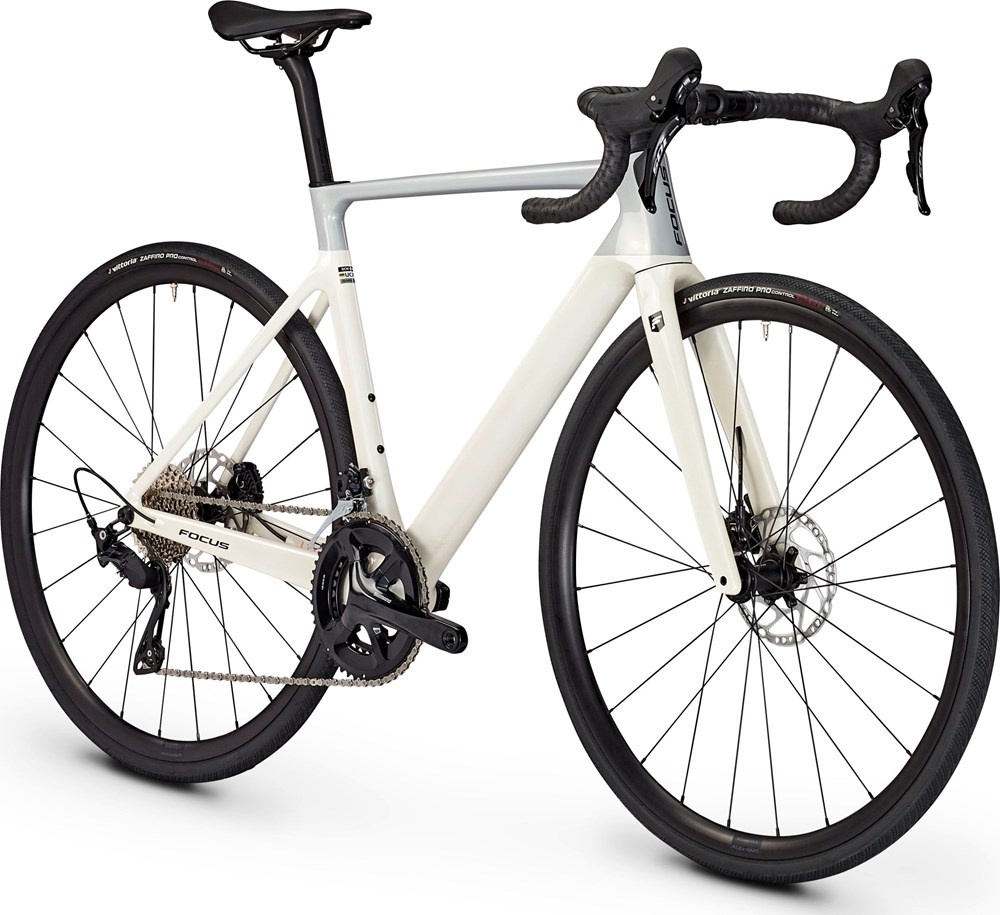

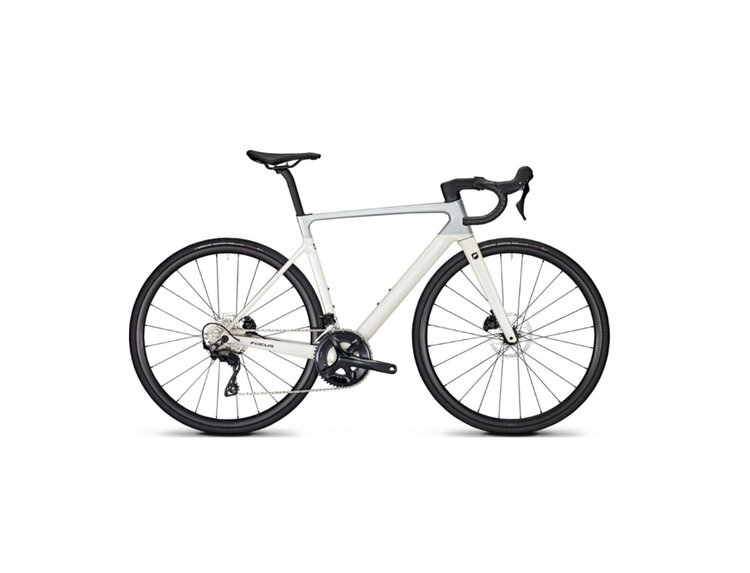

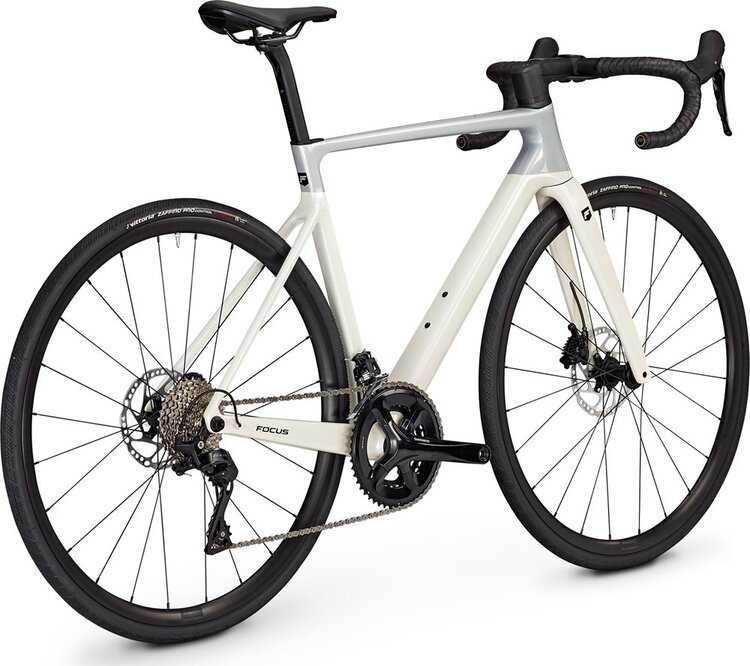

Review 2024 Focus Izalco Max 8.7 Silver - White
