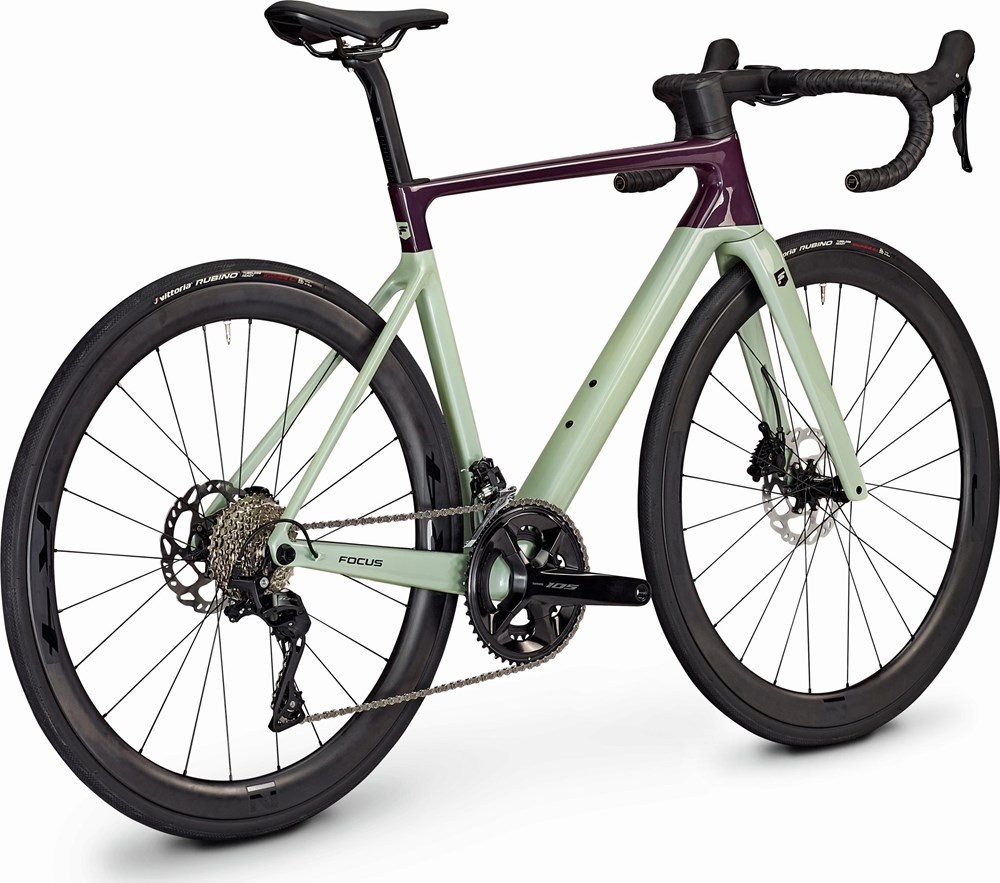

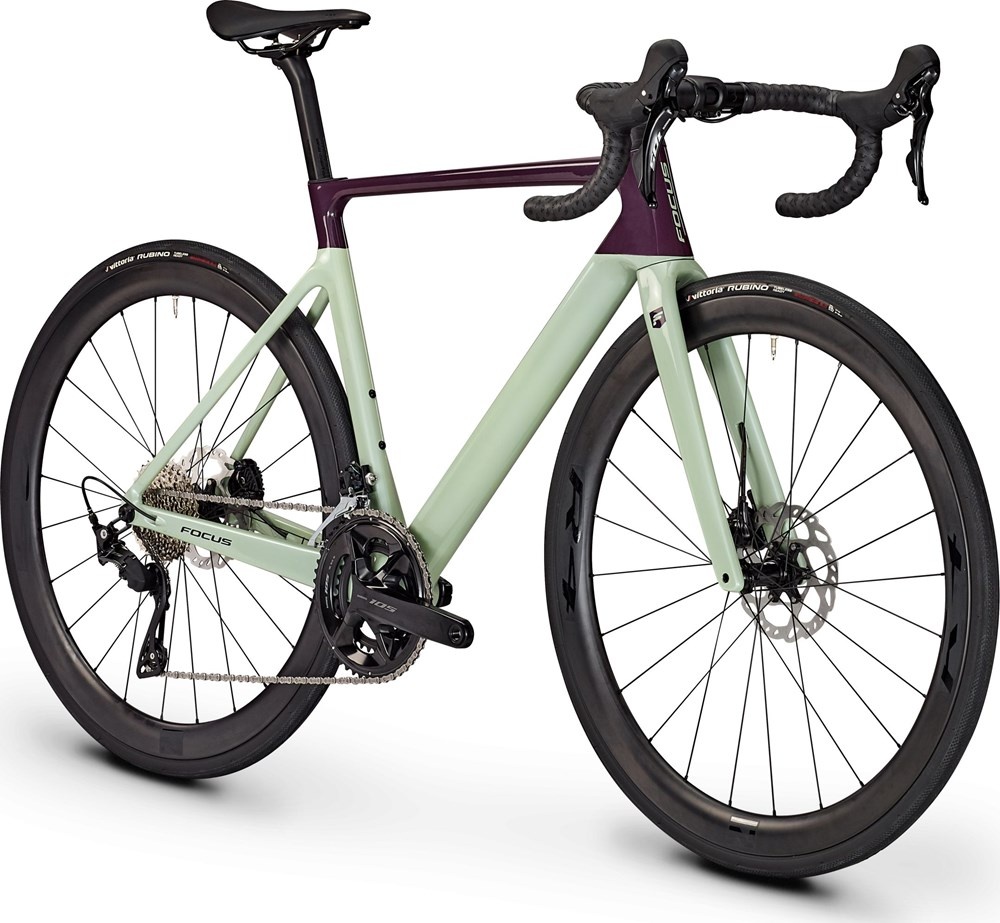

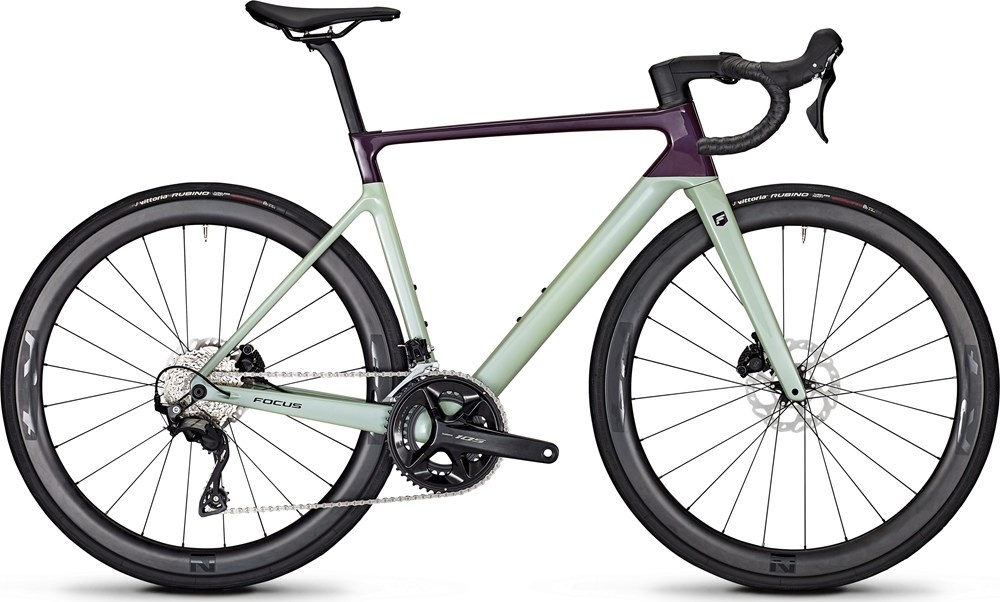

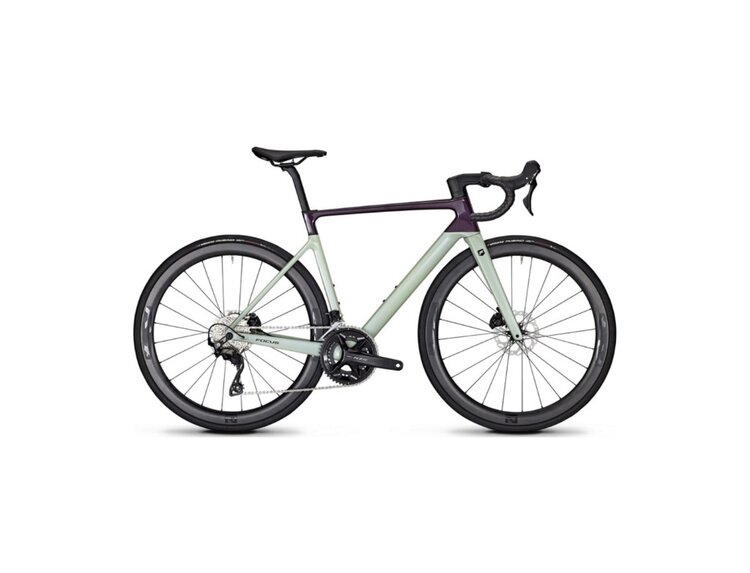

2024 Focus Izalco Max 8.8 Dark Violet - Skygrey

•••••
Size :
+-
$5,499.00$3,999.00
Add to cart
On backorder
  • Overview
    • Jump on the Focus Izalco Max mega sale. Leadtime to bring bike in from warehouse is 1-2 days.

Product details

Aero gains

The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 1050 g for frame size M with an additional 400 g for the fork.

7 sizes for a perfect fit

The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.

Effortless handling and maximum stiffness

To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

Geometry

    XXS XS S M L XL XXL
  Size in mm 470 500 520 540 560 580 610
  Handlebar width 400 400 400 420 420 420 440
  Stem length 80 90 100 110 110 120 120
  Crank length 165 165 170 172.5 172.5 175 175
  Seatpost length 350 350 350 350 350 350 350
A Seat tube length 455 475 495 515 535 555 585
B Top tube length 505 517 530 543 568 582 607
C Head angle (°) 70 71 72 72.5 72.5 73 73
D Seat angle (°) 75 74.5 74 73.5 73.5 73 73
E Chainstay length 410 410 410 410 410 410 410
F Bottom bracket drop 72 72 72 72 72 72 72
G Head tube length 90 100 115 135 155 175 195
H Fork length 371.5 371.5 371.5 371.5 371.5 371.5 371.5
I Fork offset 46 46 46 46 46 46 46
J Wheelbase 975 976 975 979 1004 1008 1033
K Stack 500 513 531 552 571 592 611
L Reach 370 375 378 380 399 401 420
M Standover height 746 762 778 795 814 835 857



  • Frame size
    • XXS,XS,S,M,L,XL,XXL
    • 47,50,52,54,56,58,61,46,48,59
  • Wheelset
    • Novatec R4, carbon, 21-622, front: 12x100 mm, rear: 12x142 mm, height: 45 mm
  • Max total weight
    • 110
  • Frame
    • Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
  • Fork
    • MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
  • Handlebar
    • BBB Basic, aluminium, drop: 125 mm, reach: 70 mm
  • Saddle
    • Selle Royal Groove SRX
  • Seat post
    • FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm
  • Stem
    • FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
  • Brakes
    • Shimano 105 R7025,Shimano 105 R7025
  • Crank set
    • Shimano 105 R7100
  • Switch lever
    • Shimano 105 R7100, 12-speed
  • Headset
    • ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
  • Tyres, rear
    • Vittoria Rubino TLR, 700 x 28C, Folding
  • Colour
    • Darkviolet glossy,Skygrey glossy
  • Grip
    • FOCUS Bartape SL
  • Rear derailleur
    • Shimano R7100, 12-speed
  • Tire
    • Vittoria Rubino TLR, 700 x 28C, Folding
  • Shift/brake lever
    • Shimano 105 R7100, 12-speed
  • Chain
    • Shimano Deore CN-M6100, 12-speed
  • Derailleur
    • Shimano 105 R 7100
