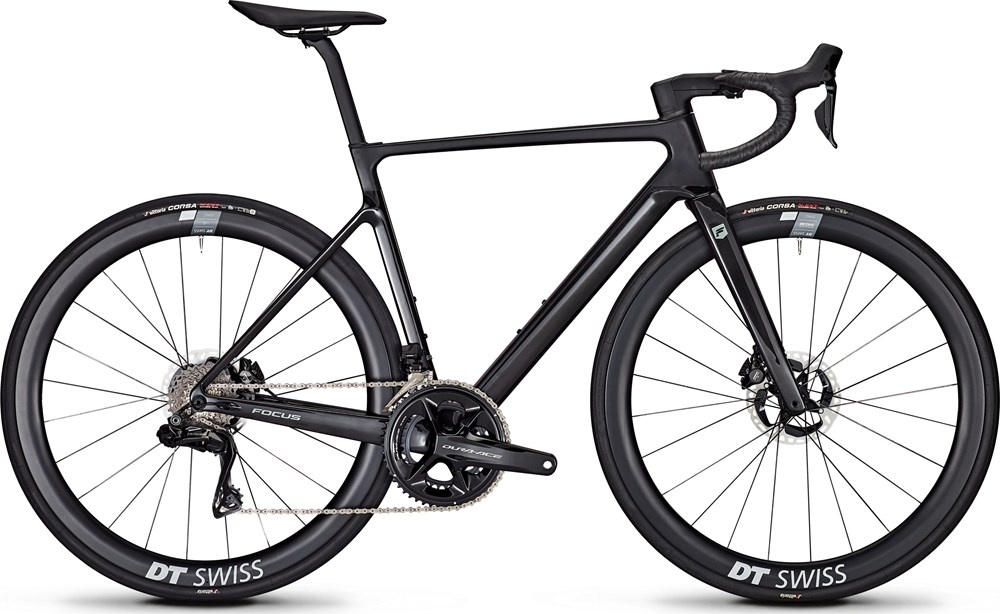

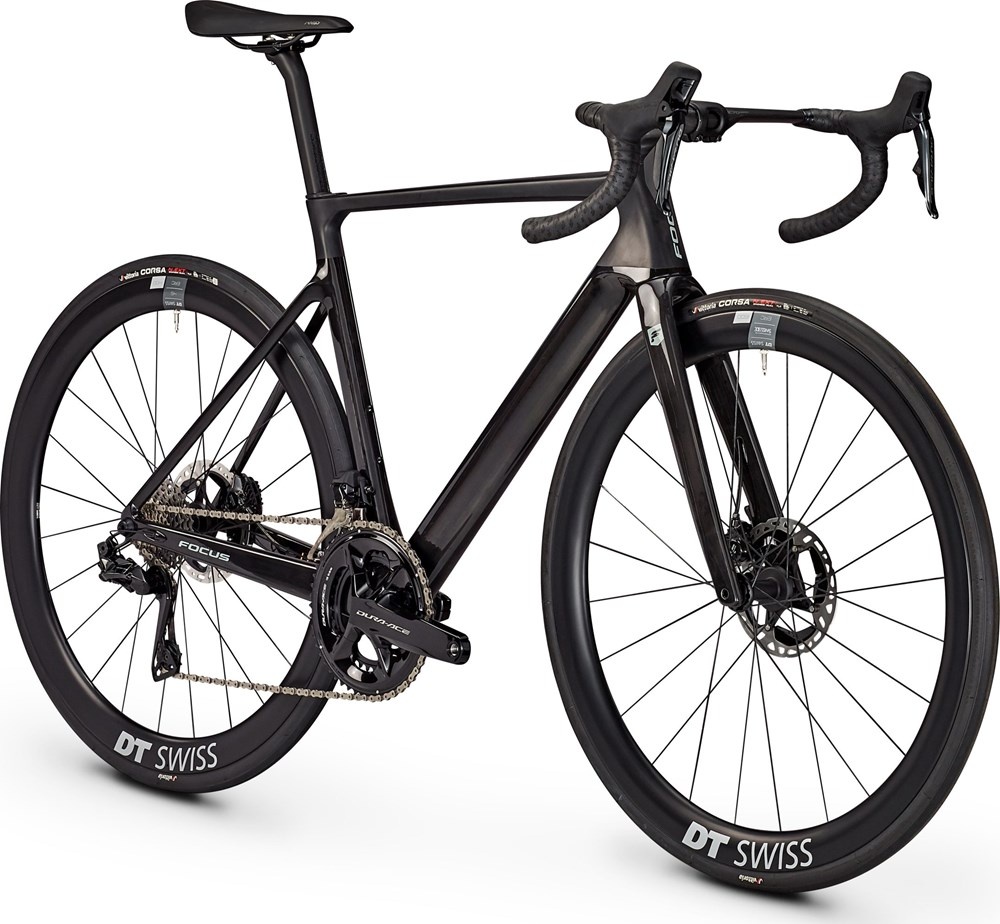

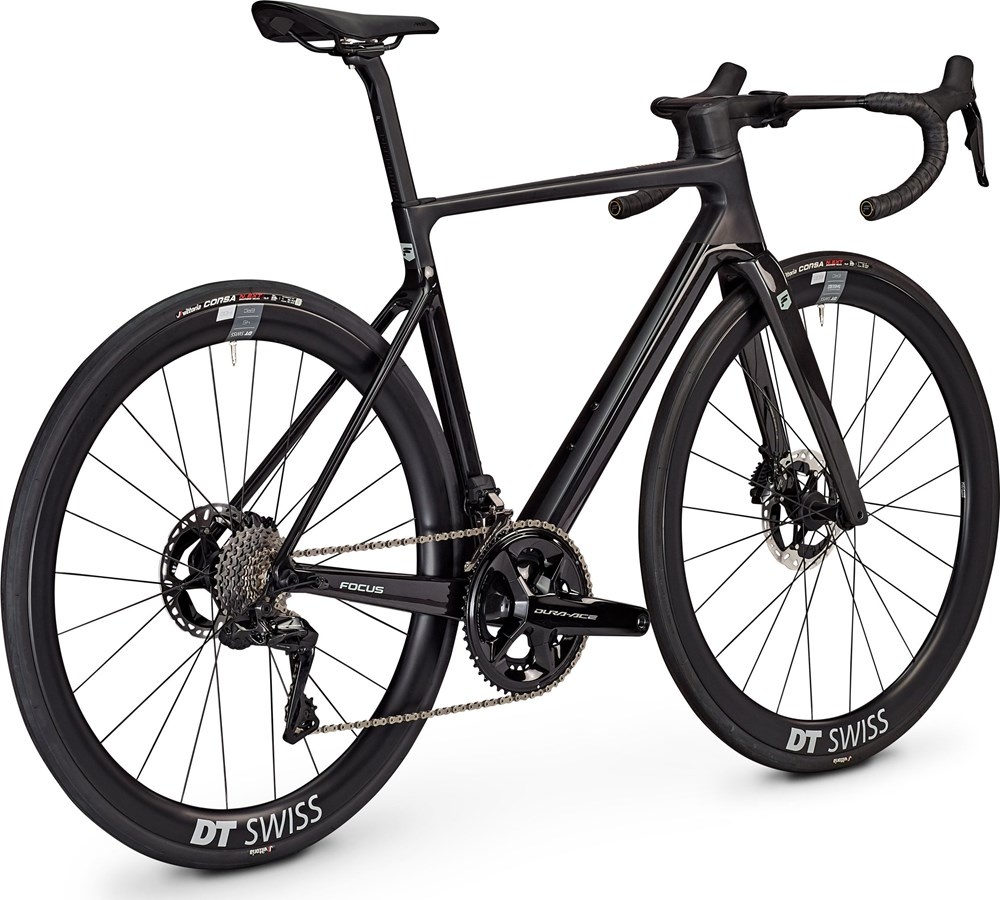

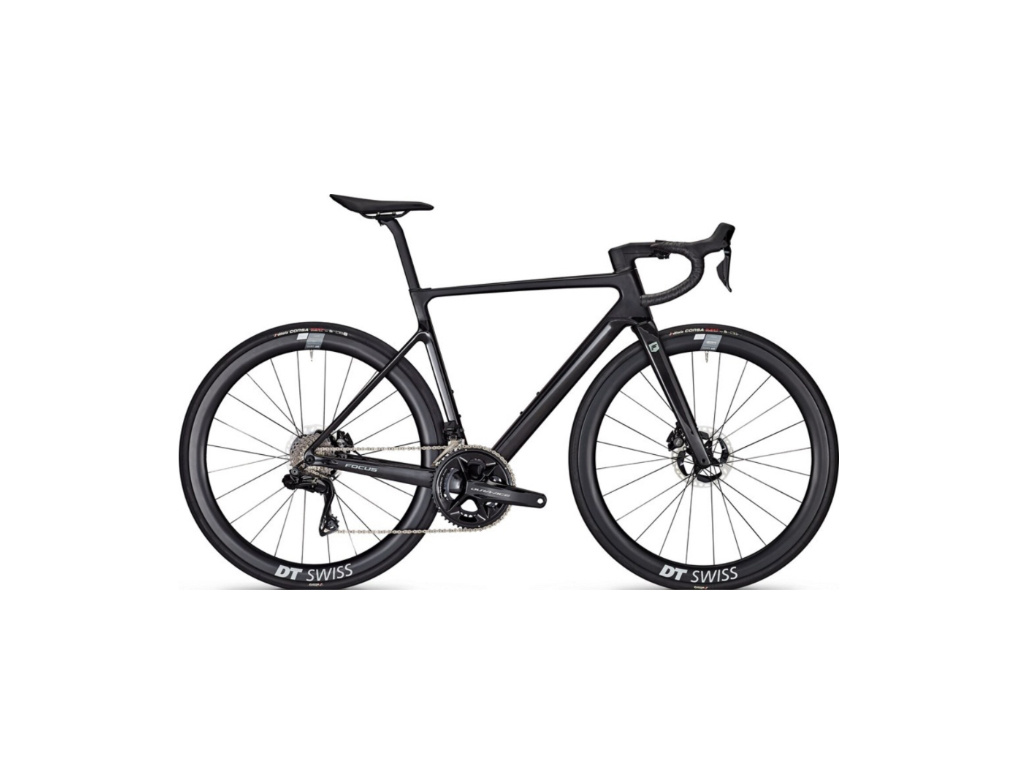

Product details
Aero gains
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.
7 sizes for a perfect fit
The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.
Effortless handling and maximum stiffness
To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
Geometry
| XXS | XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|---|
| Size in mm | 470 | 500 | 520 | 540 | 560 | 580 | 610 | |
| Handlebar width | 400 | 400 | 400 | 420 | 420 | 420 | 440 | |
| Stem length | 80 | 90 | 100 | 110 | 110 | 120 | 120 | |
| Crank length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 | |
| Seatpost length | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| A | Seat tube length | 455 | 475 | 495 | 515 | 535 | 555 | 585 |
| B | Top tube length | 505 | 517 | 530 | 543 | 568 | 582 | 607 |
| C | Head angle (°) | 70 | 71 | 72 | 72.5 | 72.5 | 73 | 73 |
| D | Seat angle (°) | 75 | 74.5 | 74 | 73.5 | 73.5 | 73 | 73 |
| E | Chainstay length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| F | Bottom bracket drop | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| G | Head tube length | 90 | 100 | 115 | 135 | 155 | 175 | 195 |
| H | Fork length | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 |
| I | Fork offset | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| J | Wheelbase | 975 | 976 | 975 | 979 | 1004 | 1008 | 1033 |
| K | Stack | 500 | 513 | 531 | 552 | 571 | 592 | 611 |
| L | Reach | 370 | 375 | 378 | 380 | 399 | 401 | 420 |
| M | Standover height | 746 | 762 | 778 | 795 | 814 | 835 | 857 |
MAX technology carbon, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
Shimano Dura-Ace Di2 R9250, 12-speed
Shimano Dura-Ace Di2 R9250, 12-speed
Shimano Dura-Ace R9250, 12-speed
Shimano Dura-Ace Di2 R9250, 12-speed
Shimano Dura-Ace CS-R9200, 12-speed
front: 52/36, rear: 11-30
SHIMANO Dura-Ace R9270, Di2
Shimano BR-R9270
160 mm
DT Swiss ERC1400, carbon, 622-22, 12x100 mm / 12x142 mm, 45 mm height
Vittoria Corsa, Next TLR, 28-622, Folding
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
Easton EC70 Aero, carbon, drop: 125 mm, reach: 80 mm
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm
fi'zi:k Vento Argo R5
Carbon Raw matt / glossy
