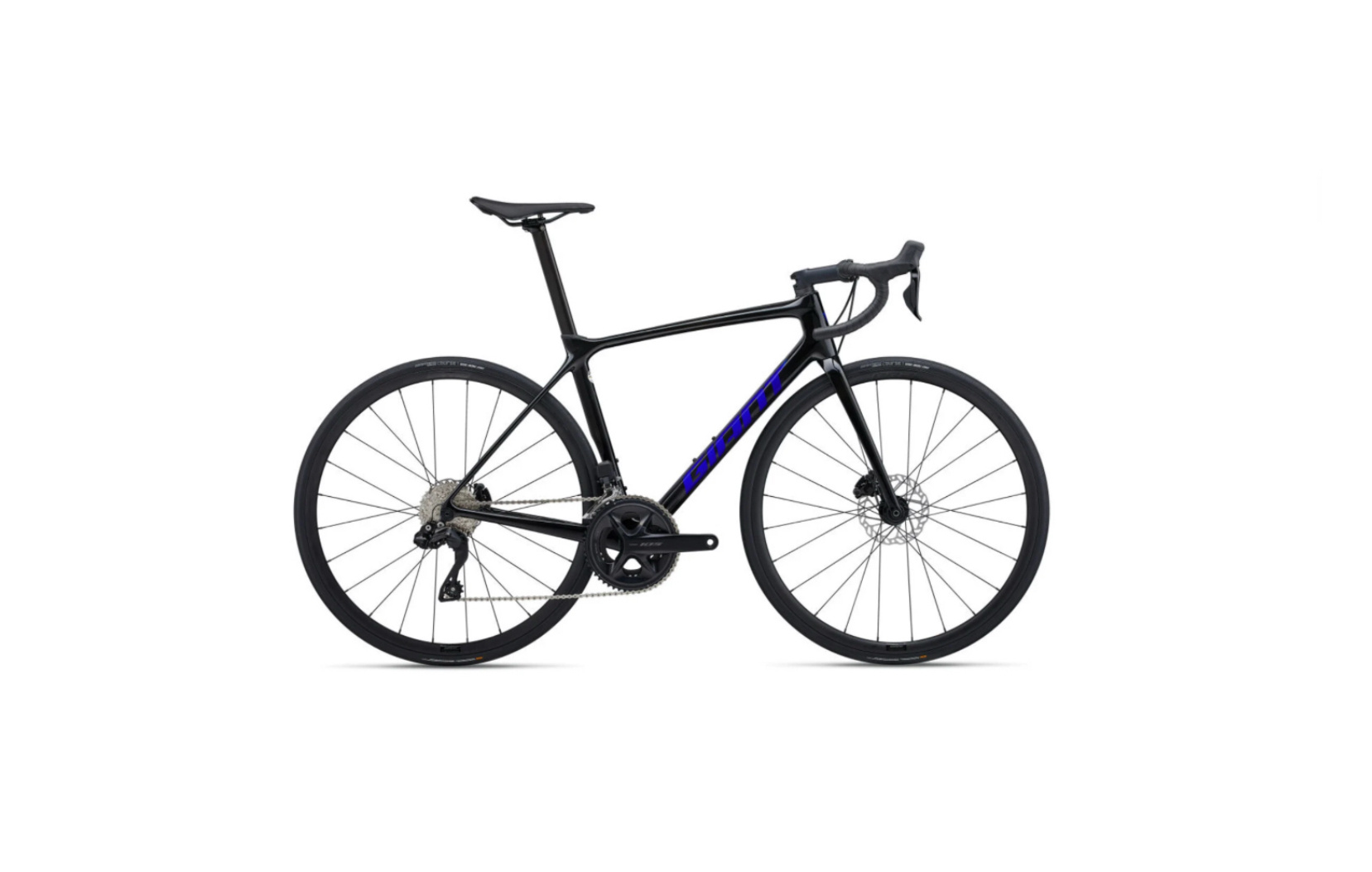

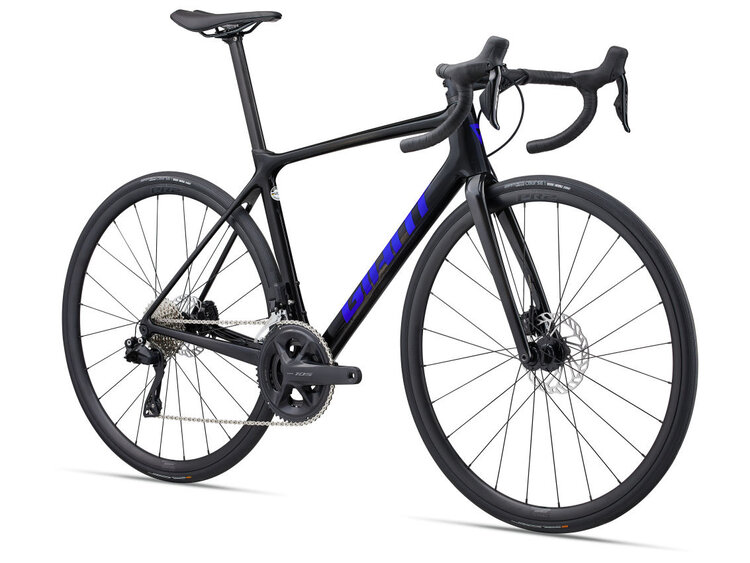

2024 Giant TCR Advanced Disc 1 Pro Compact Carbon

Product details

Class-leading efficiency

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

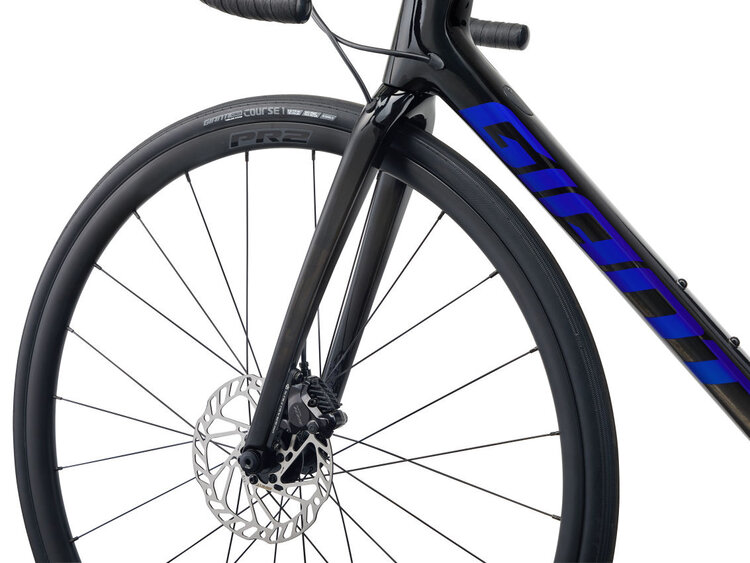

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Carbon
• Frame
  Advanced-grade composite, disc
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, disc
• Shock
  N/A

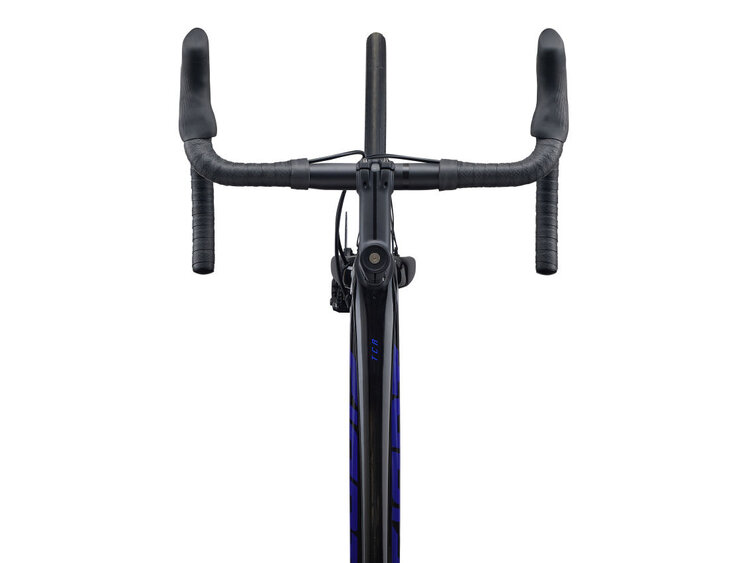

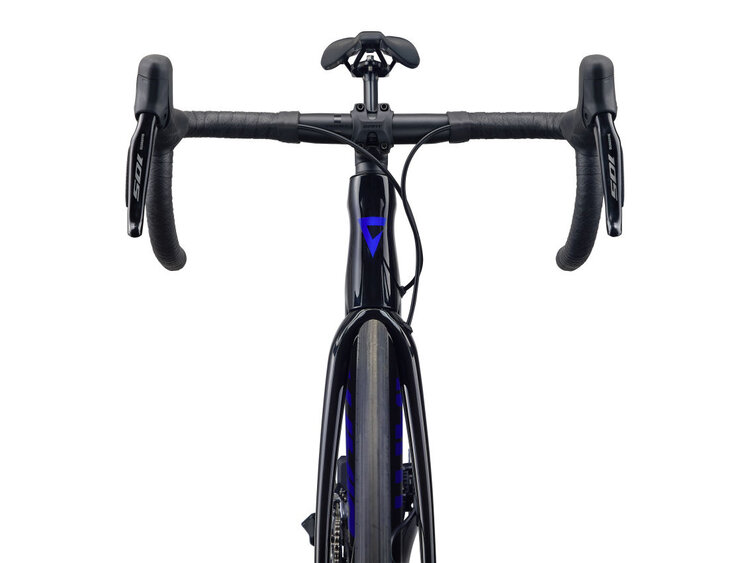

• Handlebar
  Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips
  Stratus Lite 2.0
• Stem
  Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost
  Giant Variant, composite, -5/+15mm offset
• Saddle
  Giant Approach
• Pedals
  N/A
• Shifters
  Shimano 105 Di2
• Front Derailleur
  Shimano 105 Di2
• Rear Derailleur
  Shimano 105 Di2
• Brakes
  Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
• Brake Levers
  Shimano 105 Di2
• Cassette
  Shimano 105, 12-speed, 11x34
• Chain
  KMC X12L-1
• Crankset
  Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  Shimano, press fit
• Rims
  Giant P-R2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Sapim
• Tires
  Giant Course 1, tubeless, 700x25c (28mm), folding
• Extras
  Tubeless prepared, 32mm max tyre size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
