Giant

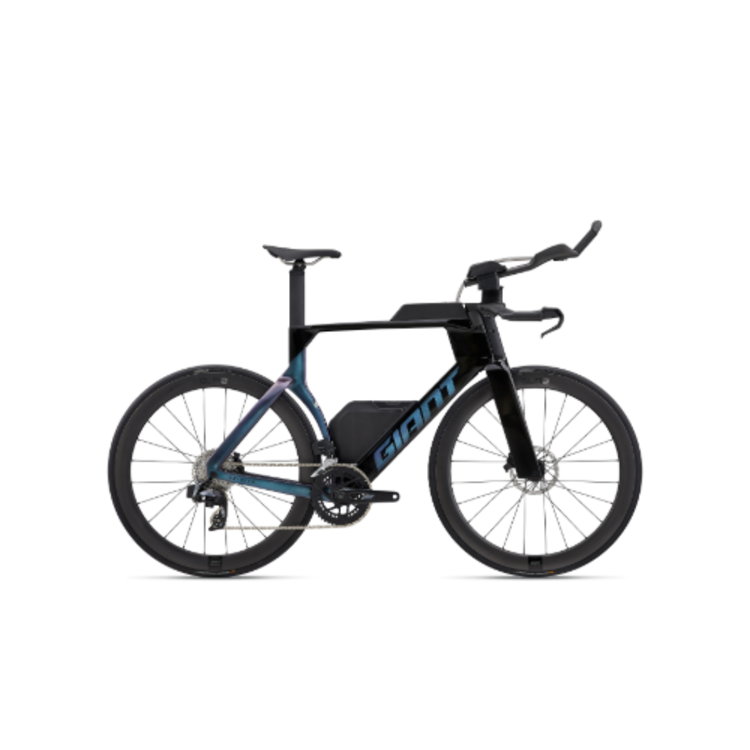

2025 Giant Trinity Advanced SL 2 Carbon/Blue Dragonfly

•••••
Size :
+-
$8,999.00
Add to cart
Only a few left
  • Overview
    • The all new Trinity Advanced SL2 is available through backorder, please contact us to secure yours and we will be able to provide you an eta straight away.

Product details

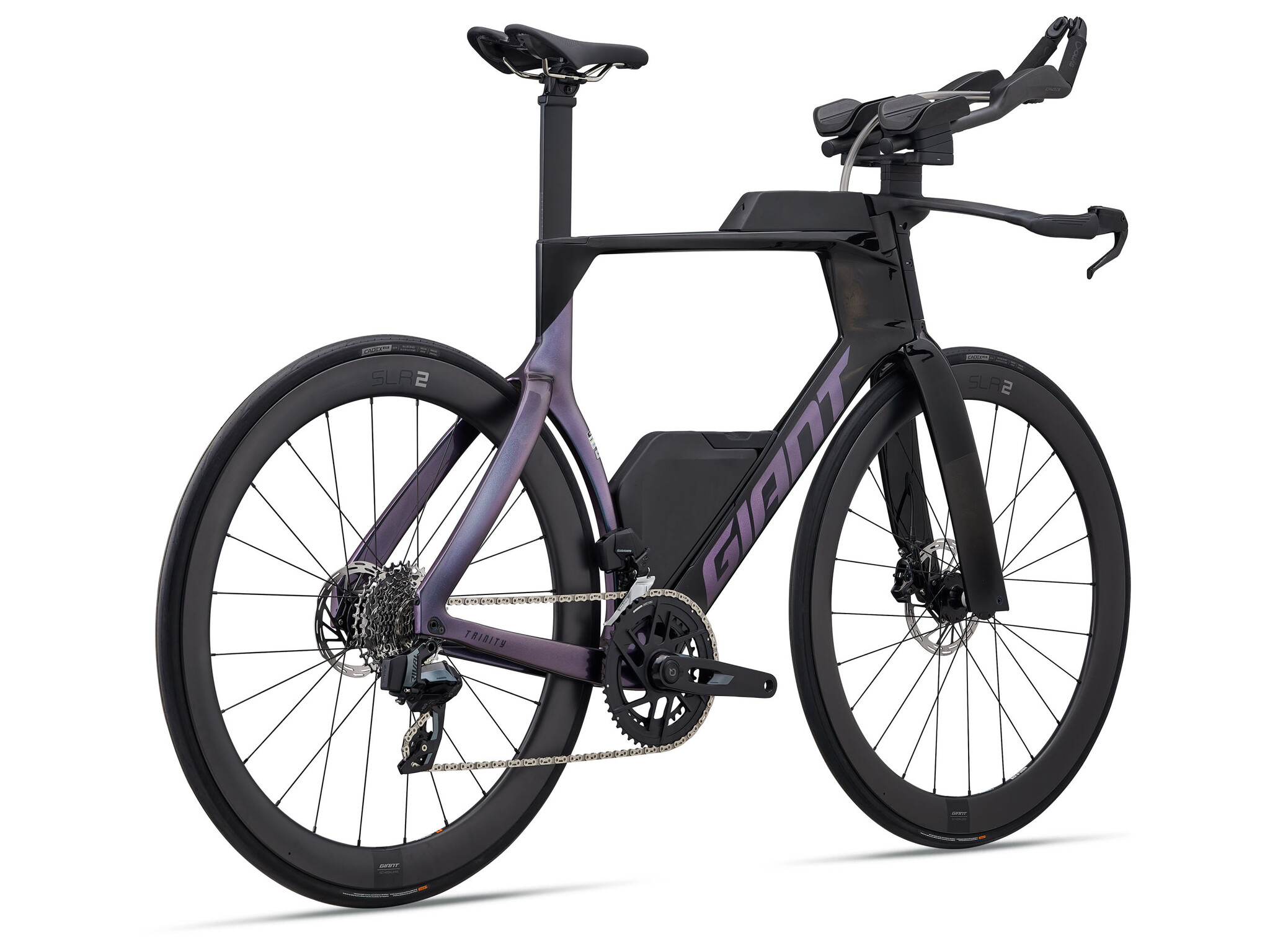

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fuelling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

FULL-SPEED DYNAMICS

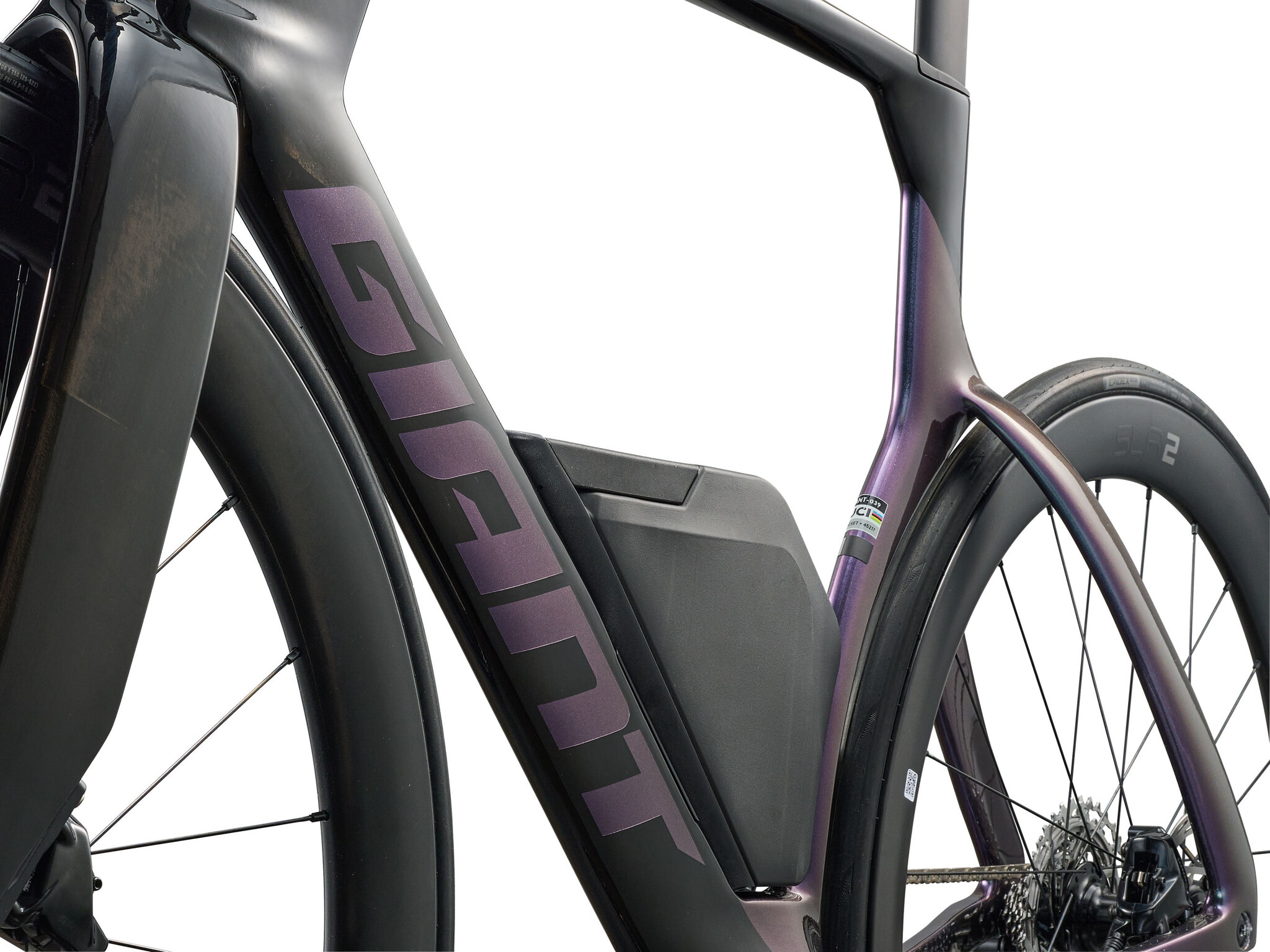

All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

ULTIMATE AERO EFFICIENCY

AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimised, integrated fuelling system.

PERSONALISED FIT

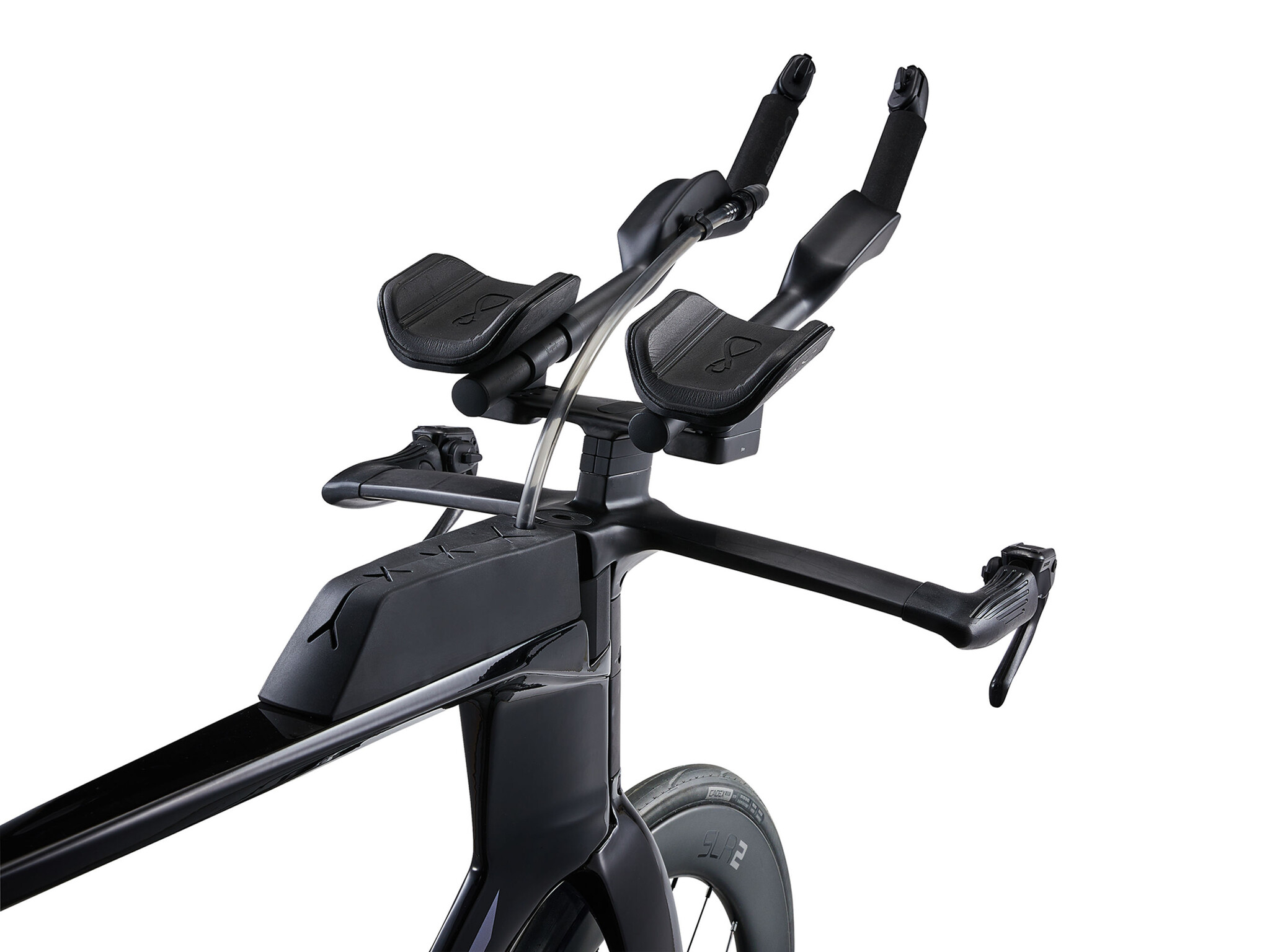

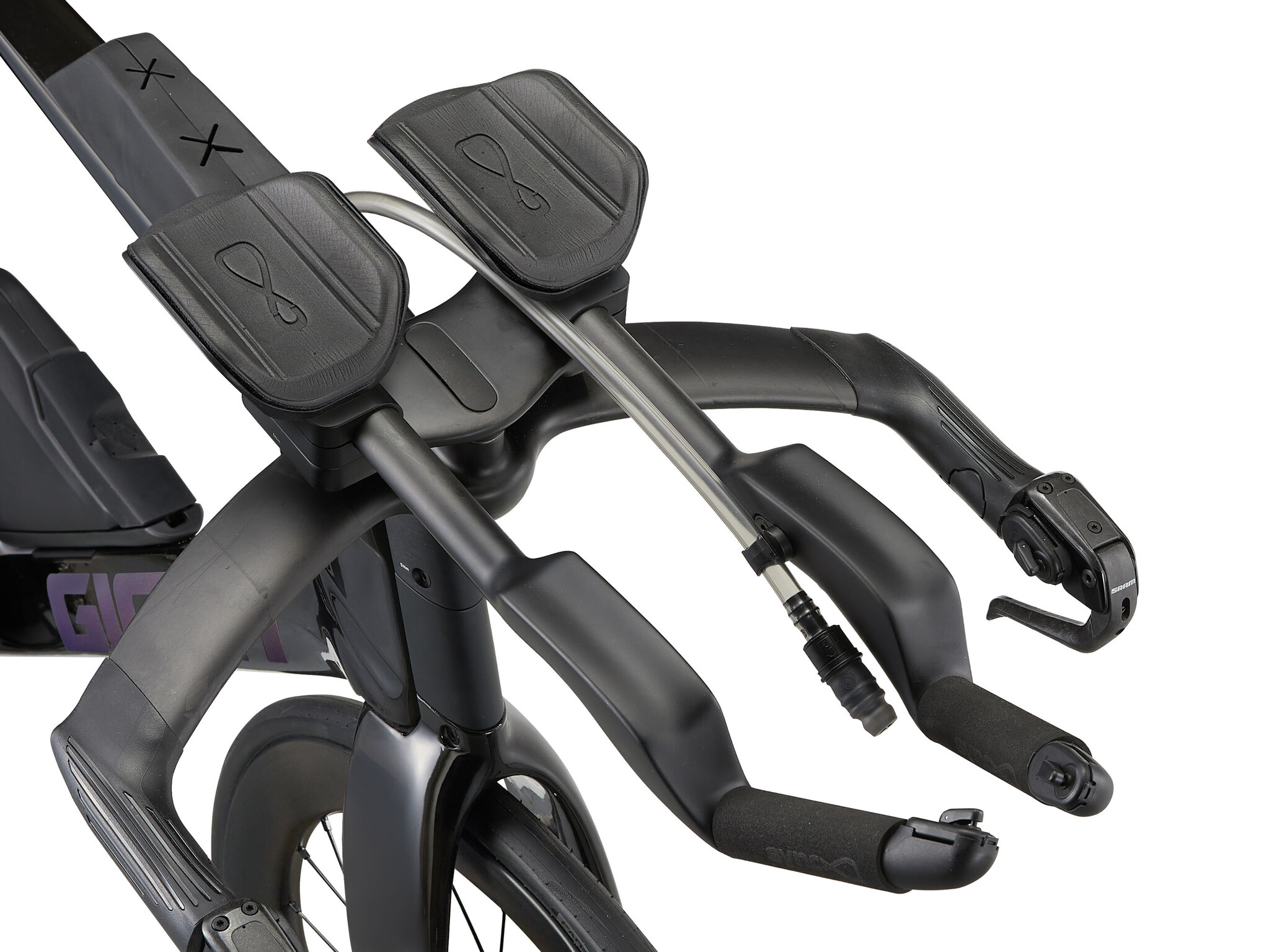

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

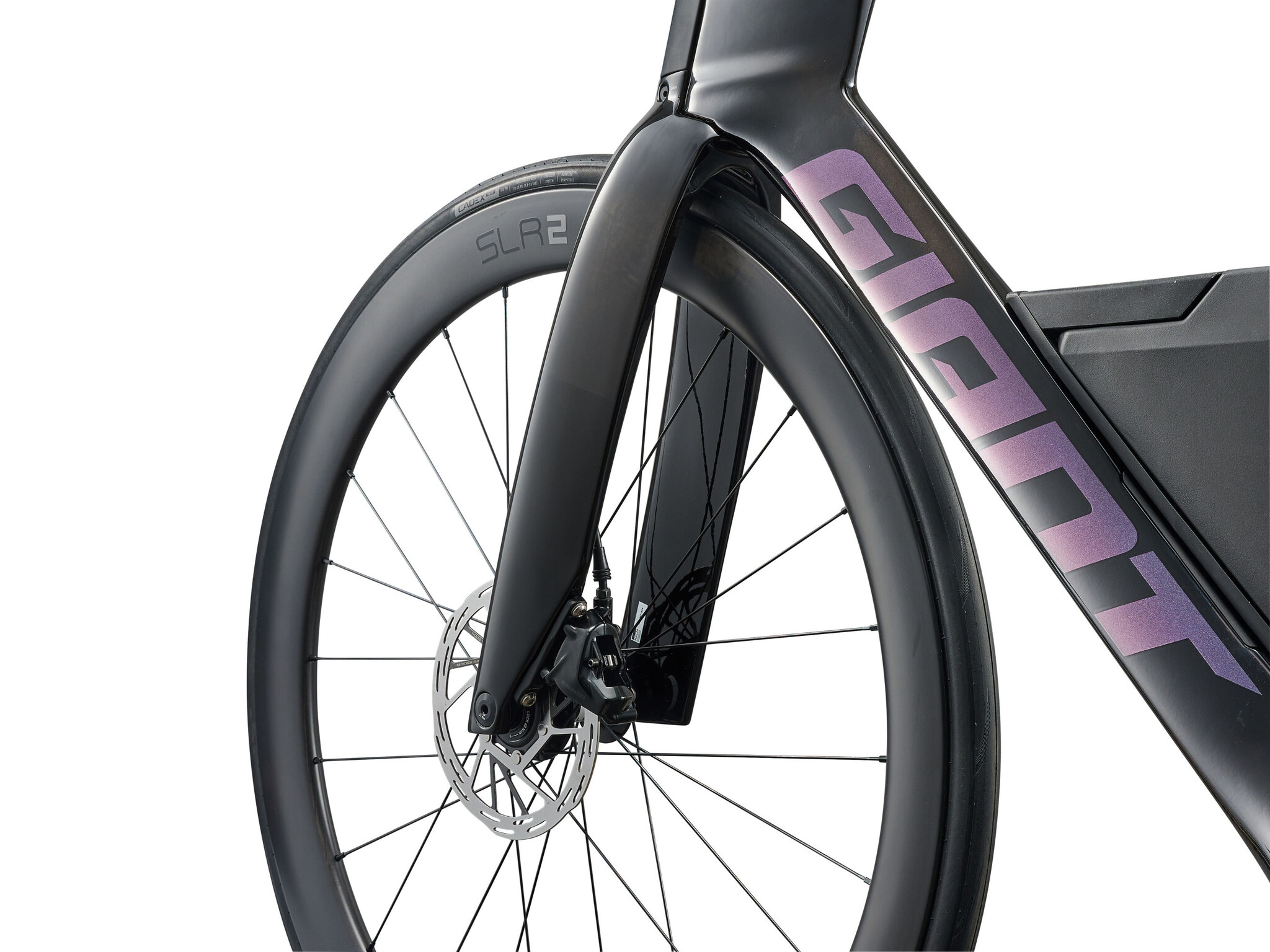

The new Trinity Advanced SL is built on an Advanced SL-grade composite frame and fork that’s 558g lighter than the previous generation. It features new disc brake integration for greater control along with added compliance in the armrests and seatpost to help absorb bumps and vibrations. The front end of the bike is totally redesigned with more armrest adjustments for stack, reach, angle and width, while a wider range of seatpost offset options allows the rider to dial in a powerful, comfortable pedaling position.

    XS S M L
A Seat Tube Length (mm) 482 495 525 550
B Seat Tube Angle 77.0° 77.0° 77.0° 77.0°
C Top Tube Length (mm) 510 530 554 579
D Head Tube Length (mm) 85 105 125 145
E Head Tube Angle 72.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 40 40 40 40
G Trail (mm) 69.4 63 63 63
H Wheelbase (mm) 974 988 1013 1039
I Chain Stay Length (mm) 405 405 405 405
J Bottom Bracket Drop (mm) 70 70 70 70
K Stack (mm) 490 513 532 551
L Reach (mm) 397 412 432 452
M Stand Over Height (mm) 758 786 814 838
P Crank Length (mm) 160 165 170 172.5
Q Wheel Size 700C 700C 700C 700C
R Arm Pad Stack (TRI) 629-709 | (TT) 582-662 (TRI) 653-733 | (TT) 605-685 (TRI) 672-752 | (TT) 624-704 (TRI) 691-771 | (TT) 643-723
S Arm Pad Reach (TRI) 323-398 | (TT) 339-414 (TRI) 340-415 | (TT) 355-430 (TRI) 360-435 | (TT) 375-450 (TRI) 380-455 | (TT) 395-470
V Pad Reach Min (mm) 323 338 358 378
W Pad Reach Max (mm) 398 413 433 453
  • Sizes
    XS, S, M, L
  • Colours
    Carbon/Blue Dragonfly
  • Frame
    Advanced SL-Grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
  • Handlebar
    AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
  • Stem
    Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
  • Seatpost
    Trinity Composite
  • Saddle
    Giant Contact SL Tri
  • Arm Rest Kit
    Sync armrest set
  • Shifters
    SRAM eTap Clics - extension mounted, SRAM eTap Blips - basebar mounted
  • Front Derailleur
    SRAM Rival AXS, FD-Rival-E-E1

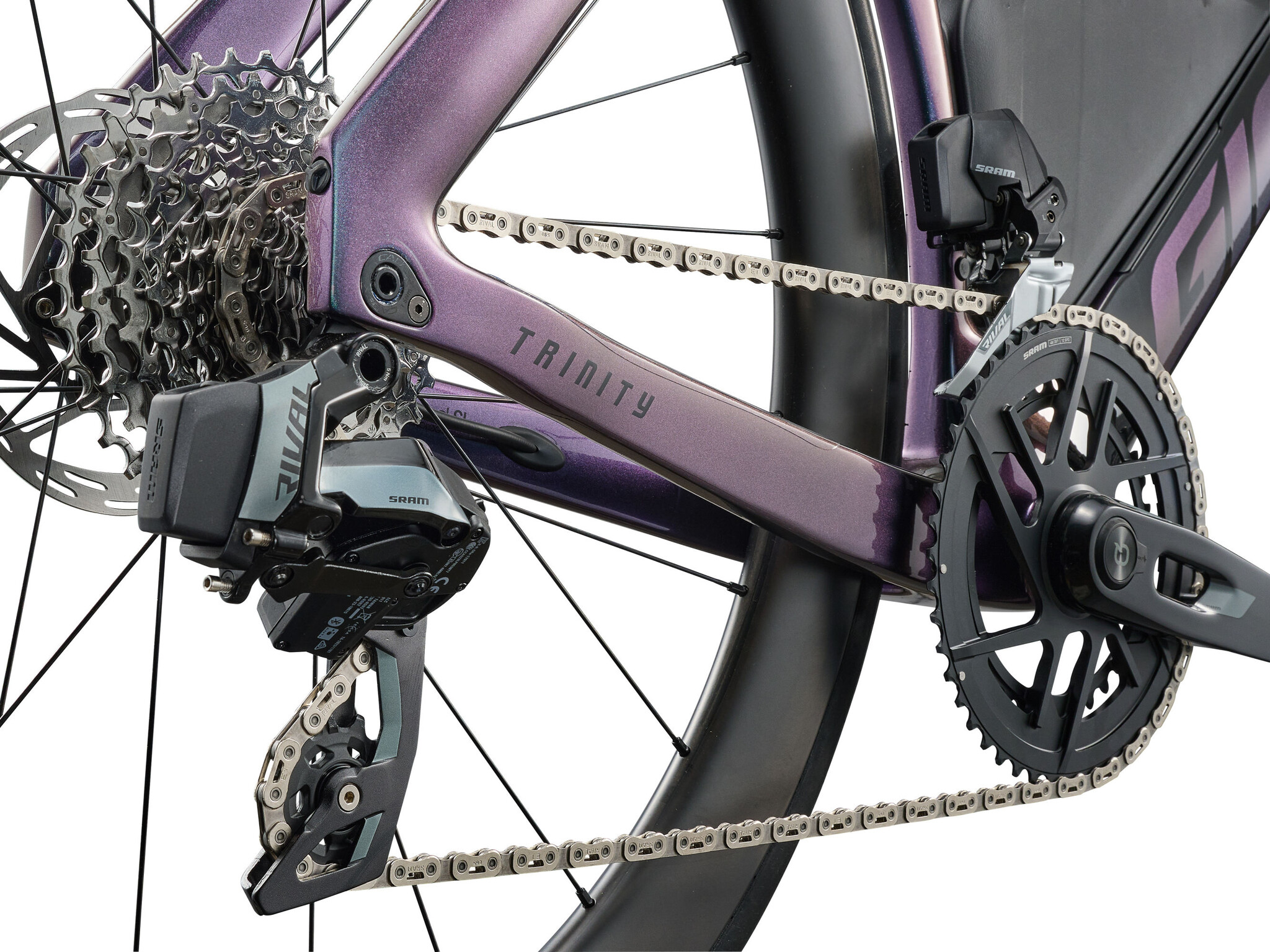

  • Rear Derailleur
    SRAM Rival AXS, RD-Rival-E-E1
  • Brakes
    SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
  • Brake Levers
    SRAM S-900 Aero AXS
  • Cassette
    SRAM Rival, 12-speed, 10x36
  • Chain
    SRAM Rival-E1, 12-speed

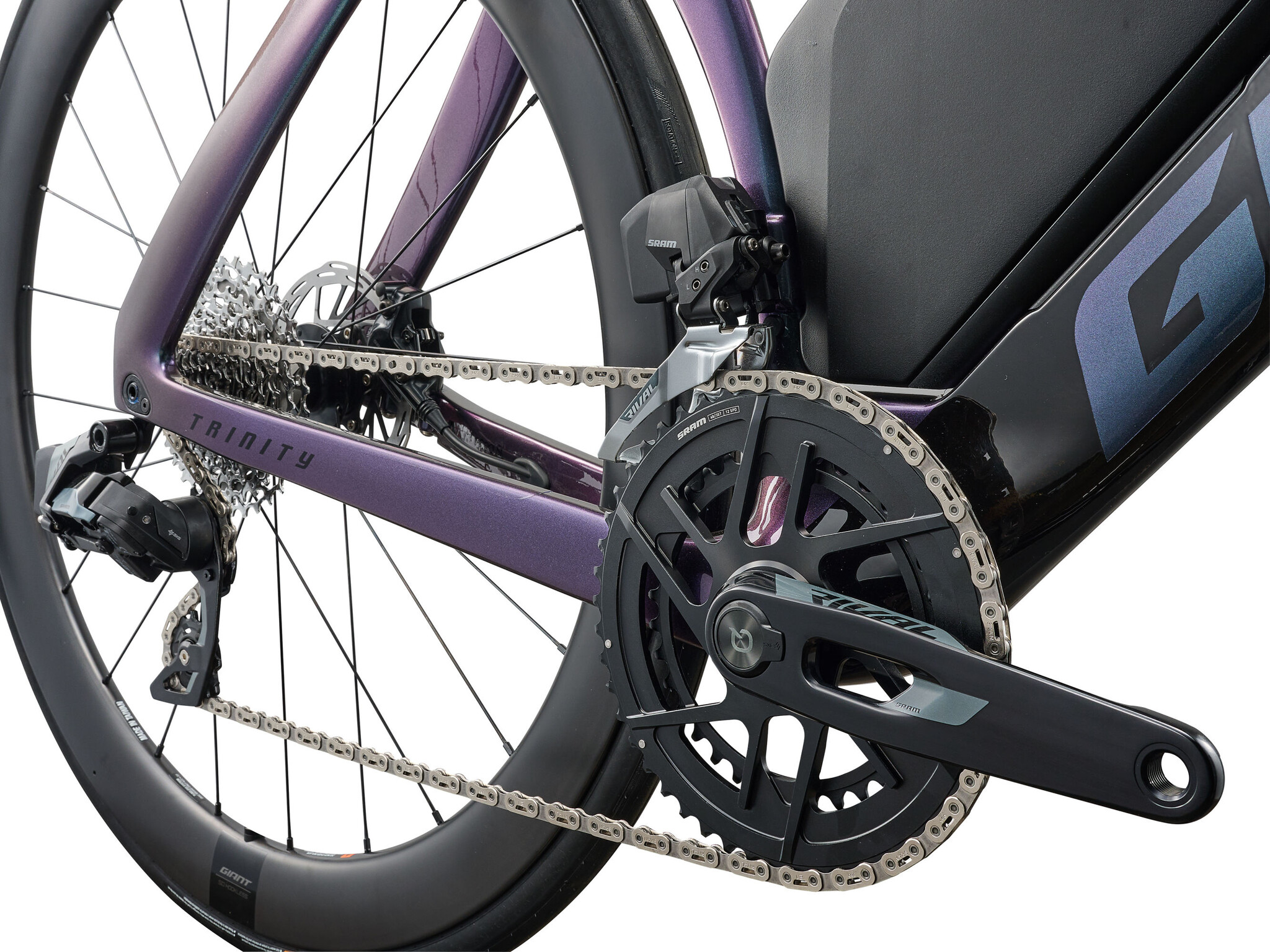

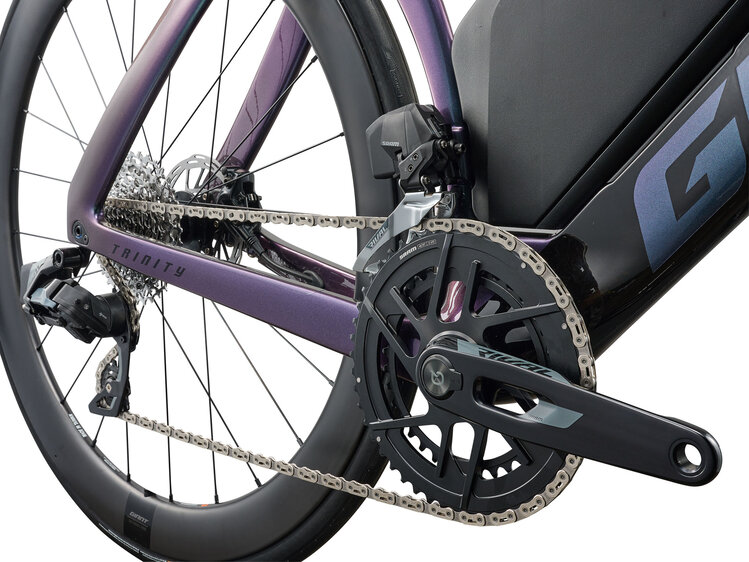

  • Crankset
    SRAM Rival E1 DUB, 35/48 with SRAM spindle power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
  • Bottom Bracket
    SRAM DUB, press fit

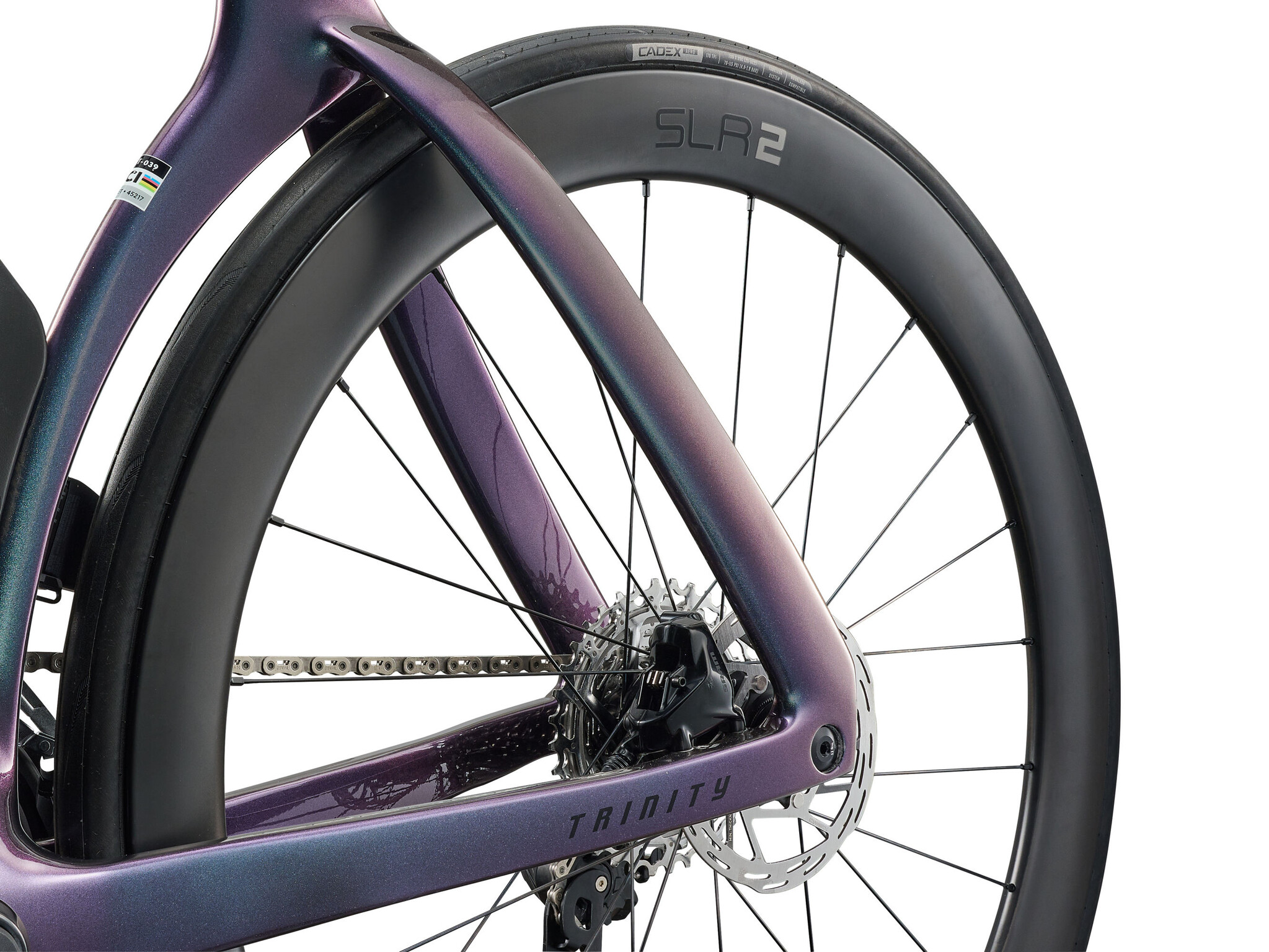

  • Rims
    Giant SLR 2 50 WheelSystem, [F]50mm, [R]50mm
  • Hubs
    [F] Giant Alloy, CenterLock, 12mm thru-axle [R] Giant Alloy, 3 pawl 30t driver, CenterLock, 12mm thru-axle
  • Spokes
    SAPIM Sprint
  • Tires
    CADEX Aero, tubeless, 700x25c (26.5mm), folding
  • Extras
    Bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tyre size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
