Product details
Aero gains
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork.
Reserve One Piece Cockpit
For optimal aerodynamics and a clean design, the IZALCO MAX is equipped with a Reserve One Piece Cockpit. For more information on the warranty and the various options for cockpit length and width in the aftermarket, please refer to the FAQ.
Effortless handling and maximum stiffness
To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. A power meter lets you know exactly how much of that power you are transferring to the road. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
Geometry:
| XXS | XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|---|
| Size in mm | 470 | 500 | 520 | 540 | 560 | 580 | 610 | |
| Handlebar width | 380 | 380 | 380 | 400 | 400 | 420 | 420 | |
| Stem length | 80 | 90 | 100 | 110 | 110 | 120 | 120 | |
| Crank length | 165 | 165 | 170 | 170 | 170 | 172.5 | 175 | |
| Seatpost length | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| A | Seat tube length | 455 | 475 | 495 | 515 | 535 | 555 | 585 |
| B | Top tube length | 505 | 517 | 530 | 543 | 568 | 582 | 607 |
| C | Head angle (°) | 70 | 71 | 72 | 72.5 | 72.5 | 73 | 73 |
| D | Seat angle (°) | 75 | 74.5 | 74 | 73.5 | 73.5 | 73 | 73 |
| E | Chainstay length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| F | Bottom bracket drop | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| G | Head tube length | 90 | 100 | 115 | 135 | 155 | 175 | 195 |
| H | Fork length | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 |
| I | Fork offset | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| J | Wheelbase | 975 | 976 | 975 | 979 | 1004 | 1008 | 1033 |
| K | Stack | 500 | 513 | 531 | 552 | 571 | 592 | 611 |
| L | Reach | 370 | 375 | 378 | 380 | 399 | 401 | 420 |
| M | Standover height | 746 | 762 | 778 | 795 | 814 | 835 | 857 |
Specification:

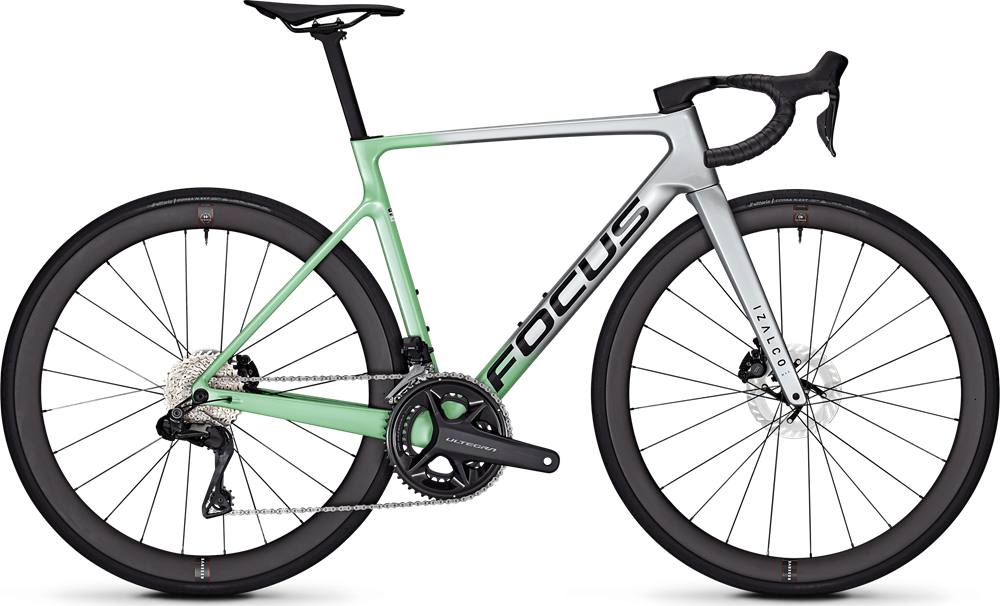

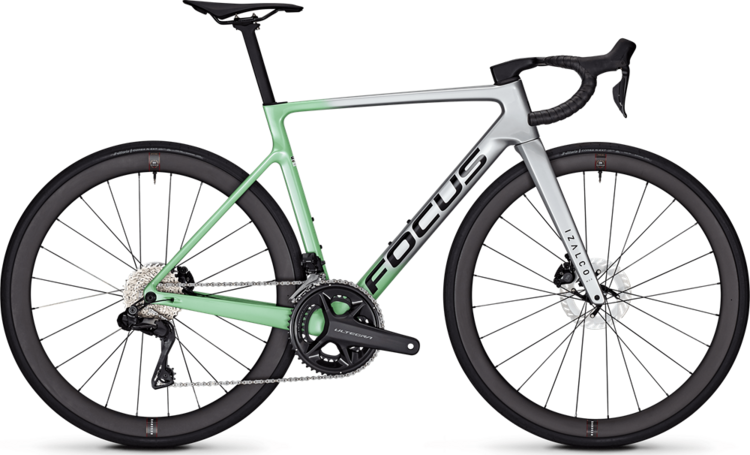

Colour: Soothbrush & Nepalsilver / Mintgrey
Frame: MAX technology carbon, disc, 142x12 mm thru axle, flat mount 160/140 mm
Headset: ACROS IS 52/ IS52 (ICR), FOCUS integrated C.I.S.
Saddle: fizik Vento Antares R5
Seatpost: FOCUS Aero Carbon, D-shape, set-back: 0 mm: XXS-L, 15mm: XL-XXL
Wheelset: Reserve 40|44, carbon, carbon, rim height: front 40 mm, rear: 44 mm, width: front: 25.5-622, rear: 25-622
Weight from: 7.4 Kg
Chain: Shimano CN-M8100
Tyres: Vittoria Corsa N.EXT wide, tubeless ready, 29-622 / Vittoria Corsa N.EXT wide, tubeless ready, 29-622
Handlebars: Reserve One-Piece Cockpit, carbon, 75 mm, 125 mm, 6°, -10°
Cassette: Shimano CS-R8100, 11-34T
Crankset: Shimano Ultegra, with 4iiii Precision Power Meter, 52/36T
Lever: Shimano Ultegra Di2
Brakes: Shimano Ultegra
Max system weight: 110 Kg
