Product details
Made for the toughest trails in the world

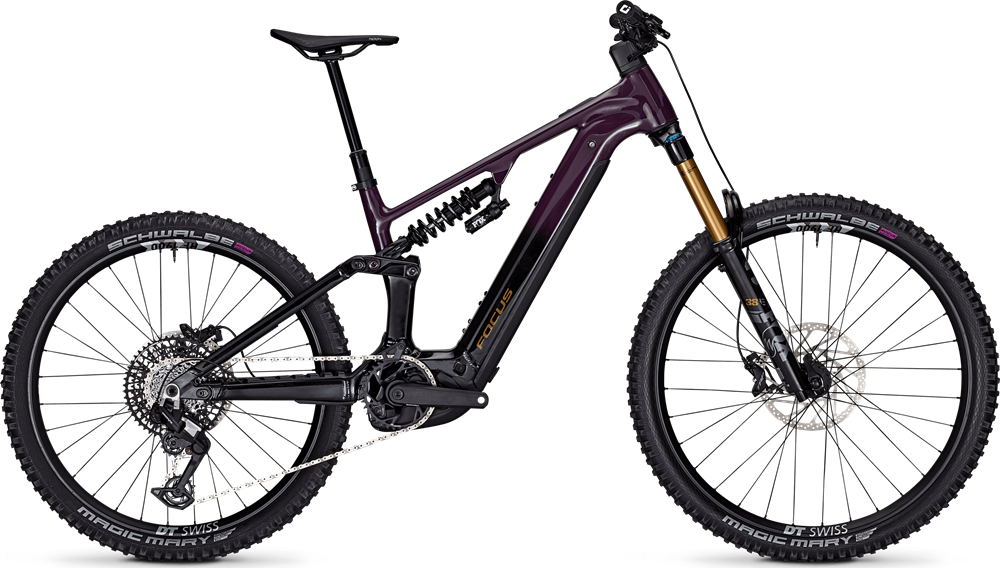

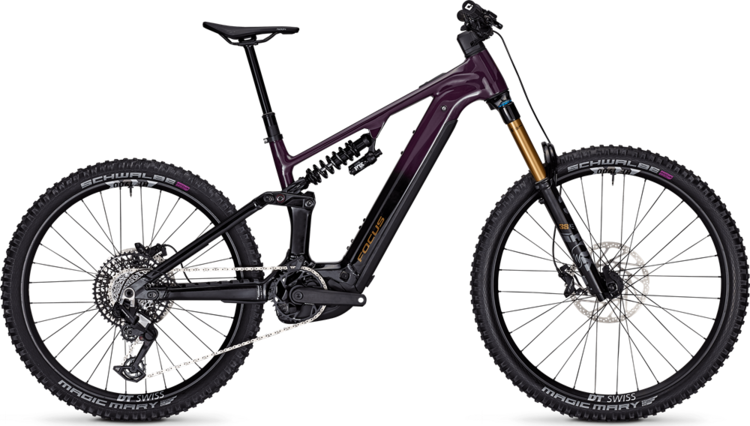

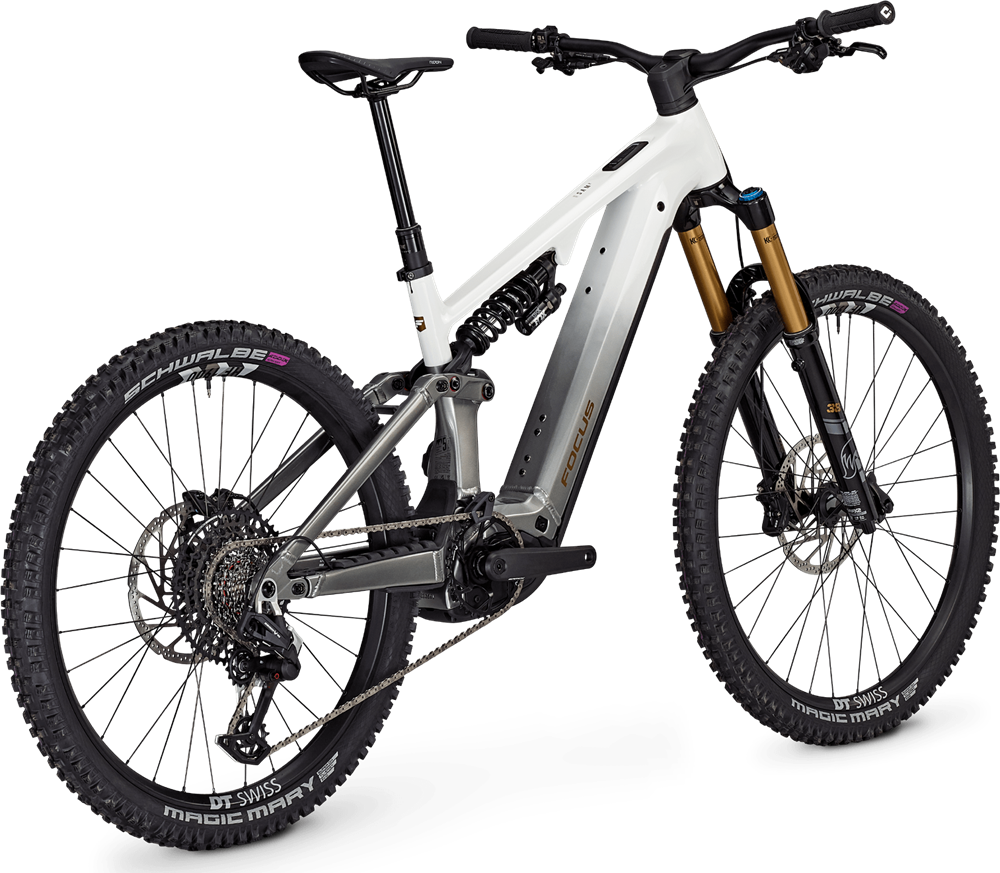

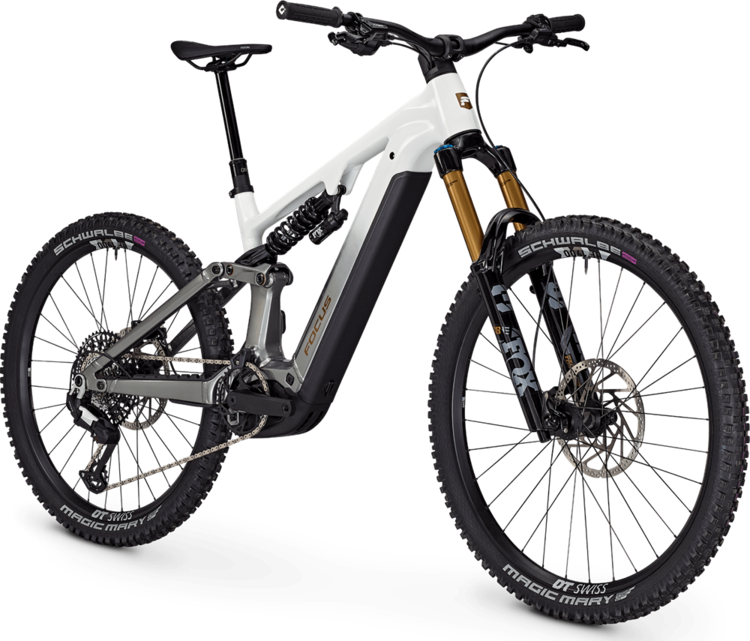

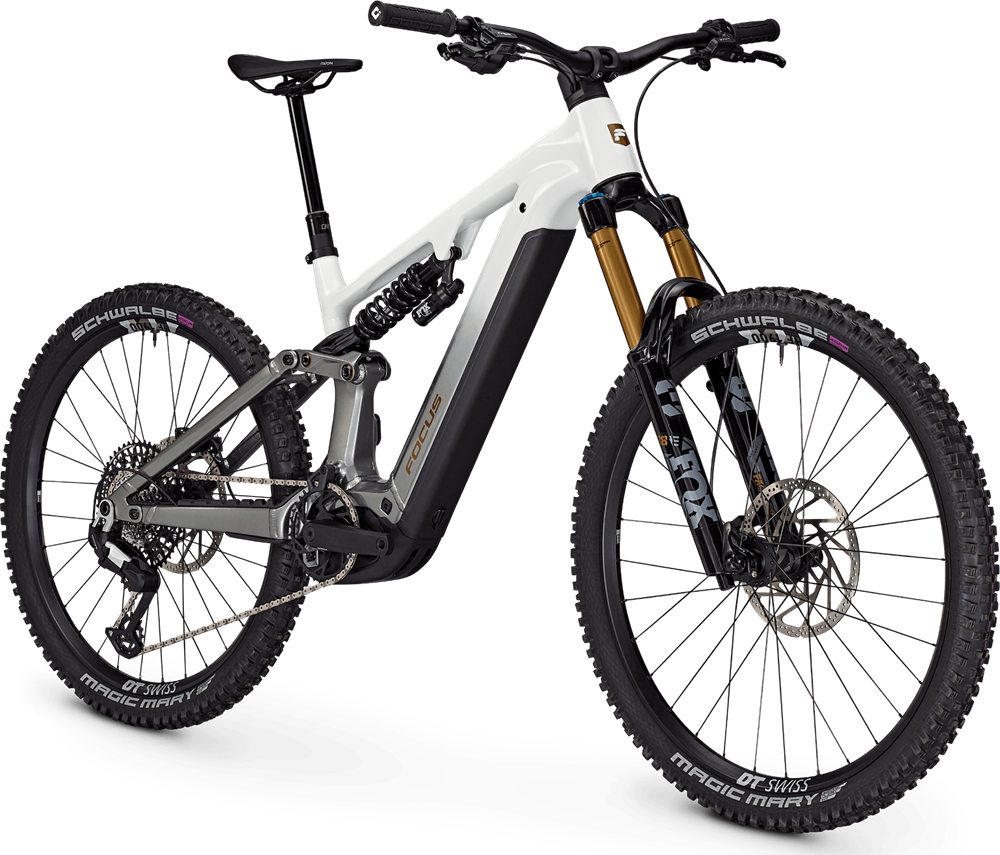

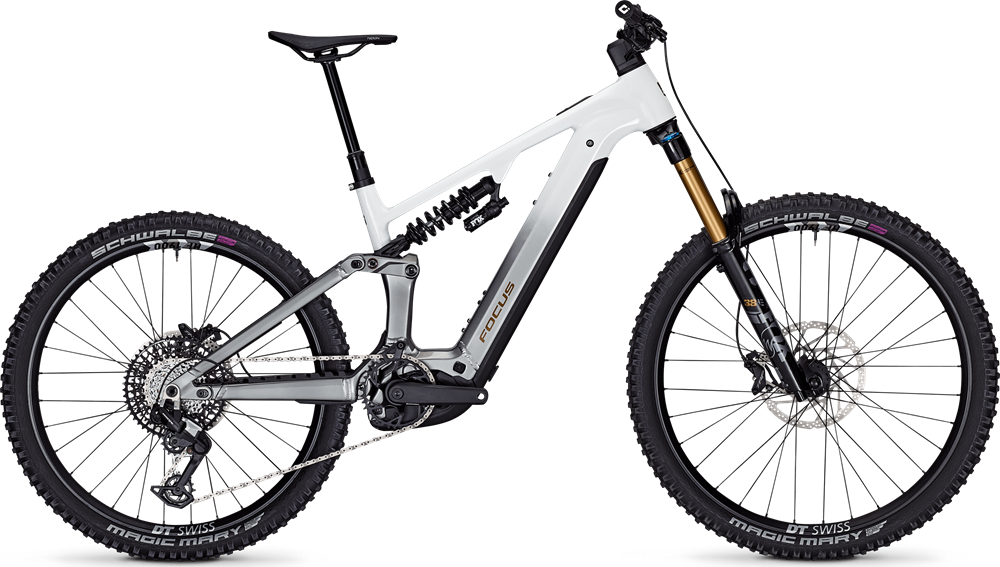

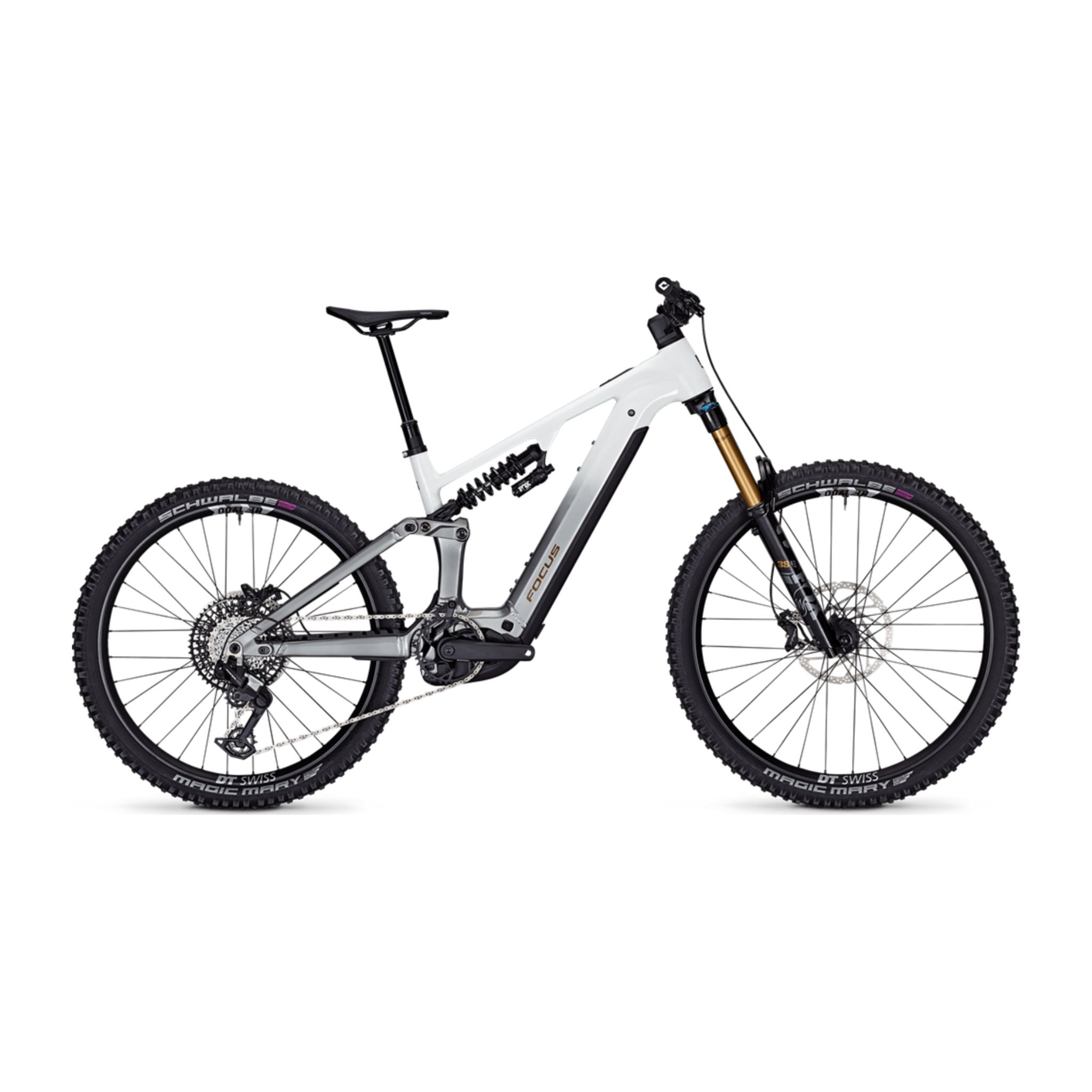

Total control even at top speeds and the steepest descents: the SAM² 6.9 is designed for fearless gravity riders. Mullet wheels perfectly round off the concept, while adjustable headset angle and chainstay settings provide room for personal preferences.
Extra Tune for Downhill
The kinematics of the SAM² 6.9 are specifically designed for coil shocks and precision-tuned for downhill action. With it, you will make light work of rock gardens, road gaps, and root-laden sections. You can find our recommendations for the perfect suspension set-up in the FAQ on the SAM² overview page.
Pushes you longer and stronger
The SAM² 6.9 is powered by the Bosch Performance Line CX motor to keep you riding longer and harder, with zero distractions. Choose between a 600 Wh or 800 Wh battery.
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Size in mm | 390 | 420 | 440 | 460 | |
| Handlebar width | 800 | 800 | 800 | 800 | |
| Stem length | 50 | 50 | 50 | 50 | |
| Crank length | 165 | 165 | 165 | 165 | |
| A | Seat tube length | 390 | 420 | 440 | 460 |
| B | Top tube length | 572 | 604 | 633 | 667 |
| C | Head angle (°) | 63.5 | 63.5 | 63.5 | 63.5 |
| D | Seat angle (°) | 77.5 | 77.5 | 77.5 | 77.5 |
| E | Chainstay length | 448 | 448 | 448 | 448 |
| F | Bottom bracket drop | 20 | 20 | 20 | 20 |
| G | Head tube length | 110 | 120 | 130 | 150 |
| H | Fork length | 587 | 587 | 587 | 587 |
| I | Fork offset | 44 | 44 | 44 | 44 |
| J | Wheelbase | 1235 | 1270 | 1299 | 1338 |
| K | Stack | 630 | 639 | 648 | 666 |
| L | Reach | 435 | 465 | 490 | 520 |
| M | Standover height | 820 | 820 | 820 | 820 |
Specification
Aluminium frame with Bosch Performance Line CX e-drive & 600 Wh battery
FOX 38 Factory GRIP X2 fork & FOX DHX Performance coil shock
SRAM Eagle 90 Transmission 12-speed & DT Swiss HF1900 mullet wheels
Fork
Fox 38 Factory, Grip X2, 170 mm
Shock
Fox DHX Performance, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm
Motor
Bosch Performance Line CX, 85 NM, 100 NM update via Flow App available summer
Battery
Bosch PowerTube Li-Ion (600 Wh)
Display & Remote
Bosch Mini Remote + System Controller
Shifter
SRAM Eagle 90 Transmission
Rear derailleur
SRAM Eagle 90 Transmission, 12-speed
Cassette
SRAM GX Transmission, 10-52T
Chain
SRAM GX Eagle Transmission
Crankset
Samox, 165 mm
Chainring
SRAM Eagle Transmission, 36 T
Handlebar
OneUp Riser, width: 800 mm, rise: 35 mm
Grips
ODI Elite Pro
Stem
FOCUS C.I.S. 2.0, 40 mm
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
Saddle
fi'zi:k Ridon X5
Seatpost
OneUp V3, S / M /L / XL: 150 / 180 / 210 / 210 mm, 34,9 mm
Brakes front | rear
TRP EVO Pro, 4-piston | TRP EVO Pro, 4-piston
Disc brake rotors
TRP RS01E, front: 220 mm / rear: 220 mm
Wheelset
DT Swiss HF 1900, alloy, front: 29", rear: 27,5"
Tyres front | rear
Schwalbe Magic Marry, Super DH, Addix Ultra Soft, 29 x 2,4" | Schwalbe Magic Marry, Super DH, ADDIX Ultra Soft, 27,5 x 2,4"
Weight
26 kg (600 Wh)
Permissible system weight
150 kg
