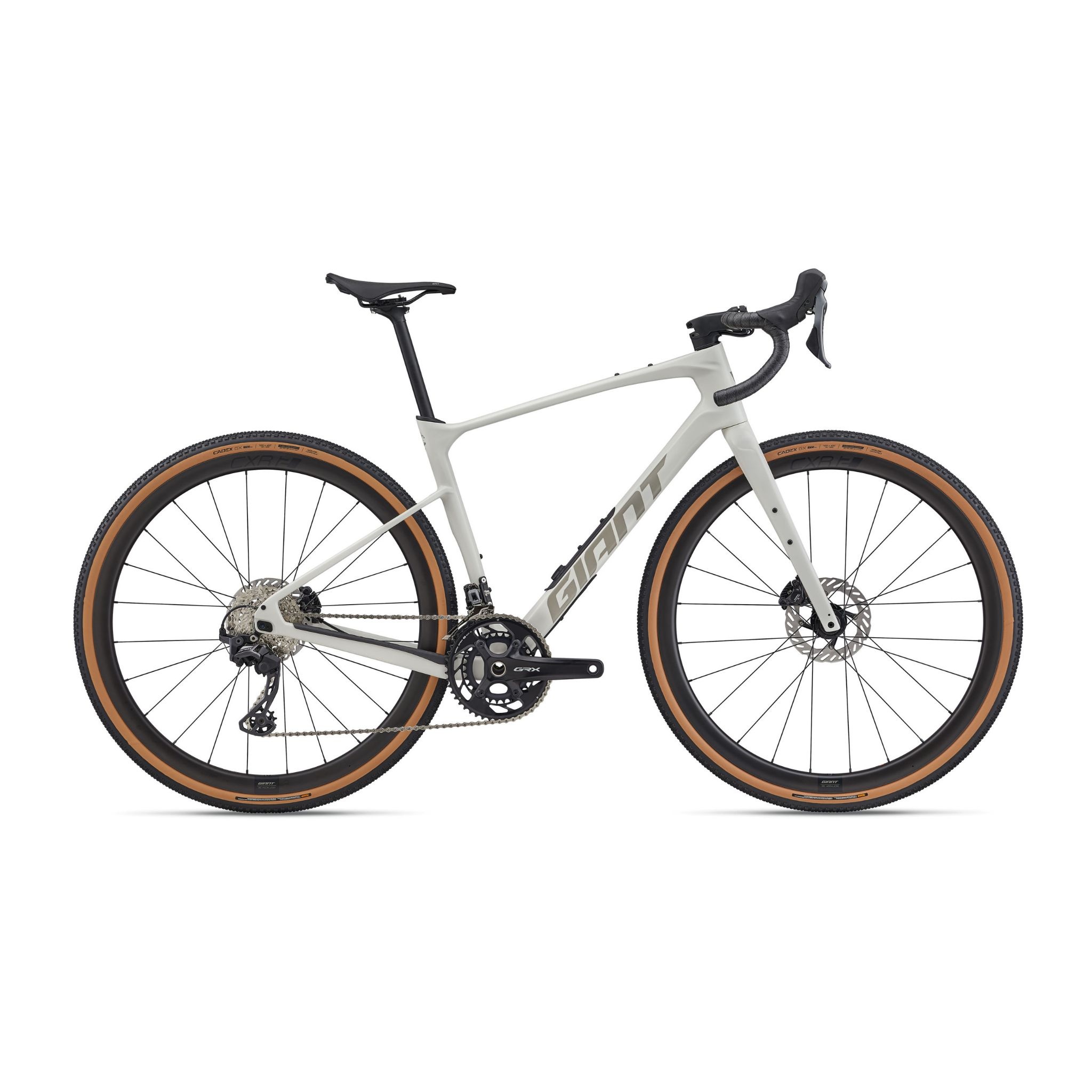

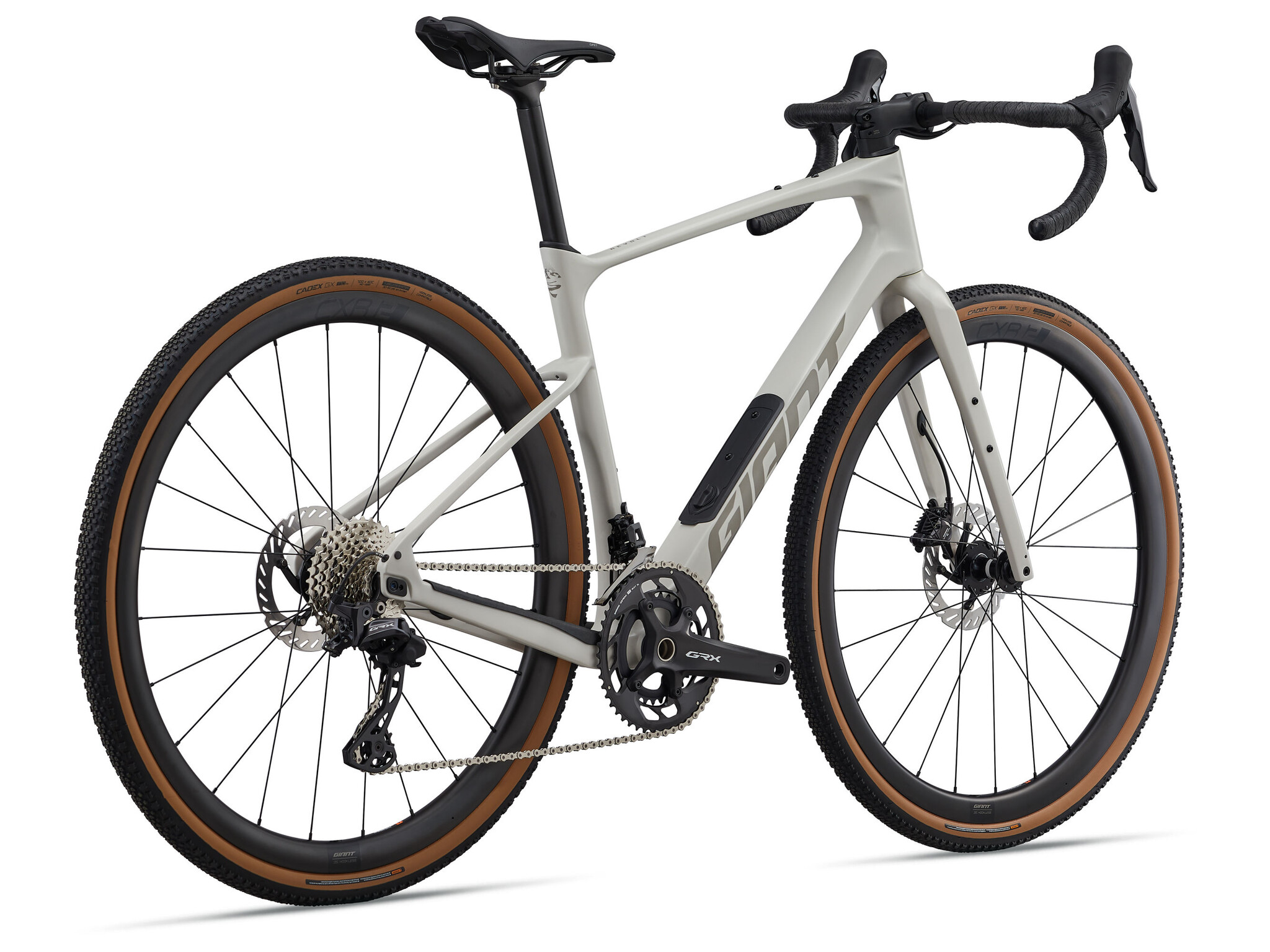

2026 Giant Revolt Advanced 0 Snow Drift

•••••

Size :

Quantity:

$5,199.00$4,499.00

Add to cart

Only a few left

Overview

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Product details

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.

XS

155 cm 166 cm
S

159 cm 171 cm
M

169 cm 181 cm
ML

174 cm 186 cm
L

179 cm 191 cm
XL

189 cm 200 cm

	XS	S	M	ML	L	XL
	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG
A Seat Tube Length (mm)	430	450	470	490	510	530
B Seat Tube Angle	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C Top Tube Length (mm)	540	550	560	575	585	600
D Head Tube Length (mm)	125	135	150	165	180	195
E Head Tube Angle	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F Fork Rake (mm)	50	50	50	50	50	50
G Trail (mm)	78 \| 82	72 \| 75	68 \| 72	65 \| 68	65 \| 68	65 \| 68
H Wheelbase (mm)	1024 \| 1034	1020 \| 1030	1026 \| 1036	1031 \| 1041	1041 \| 1051	1056 \| 1066
I Chain Stay Length (mm)	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435
J Bottom Bracket Drop (mm)	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81
K Stack (mm)	556	570	586	602	616	630
L Reach (mm)	381	381	387	391	397	407
M Stand Over Height (mm)	724 \| 731	740 \| 747	757 \| 764	774 \| 780	791 \| 797	807 \| 814
O Stem Length (mm)	50	60	70	80	80	90
P Crank Length (mm)	170	170	172.5	172.5	175	175

Sizes

XS, S, M, M/L, L, XL
Colours

Snow Drift

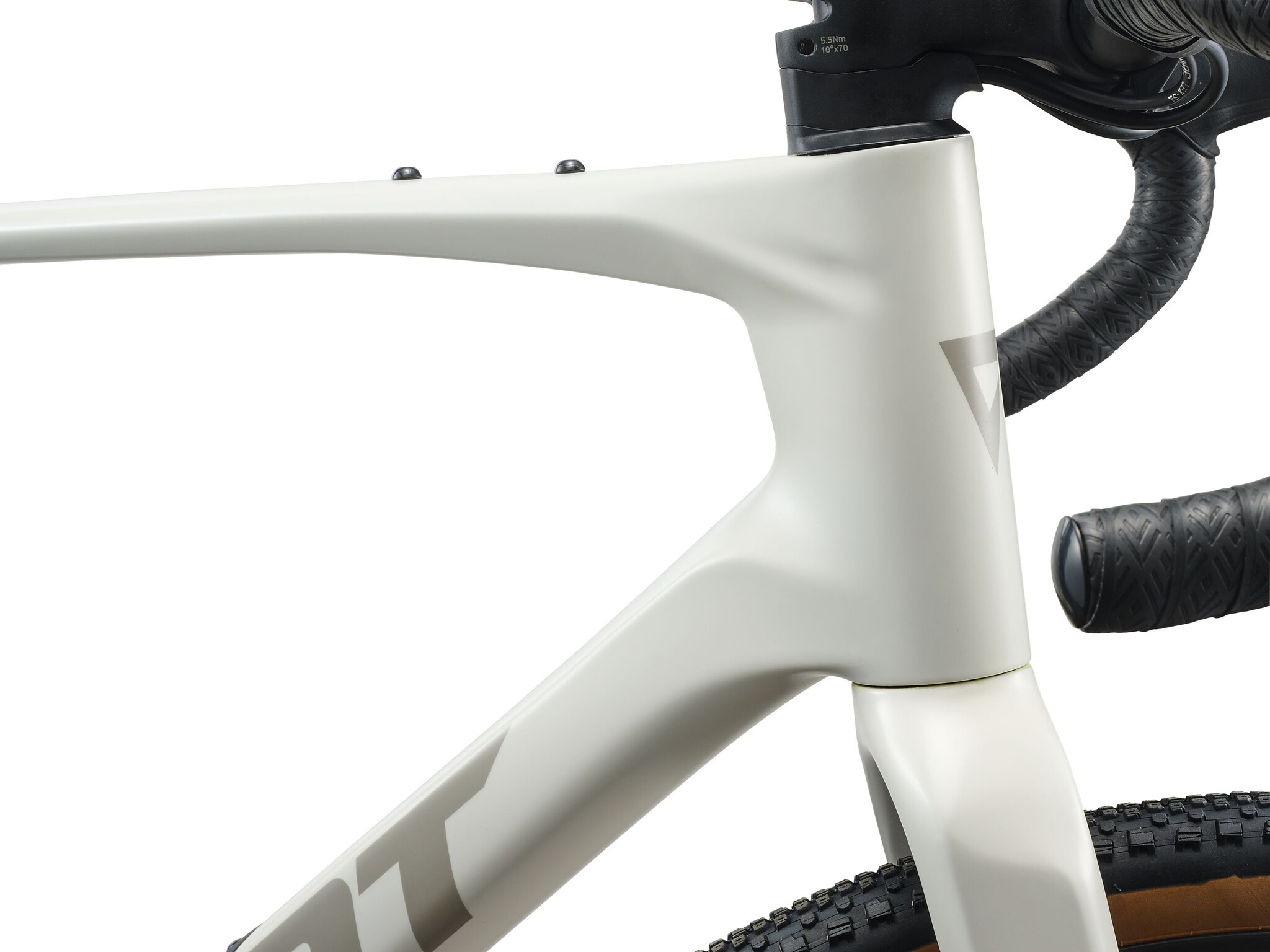

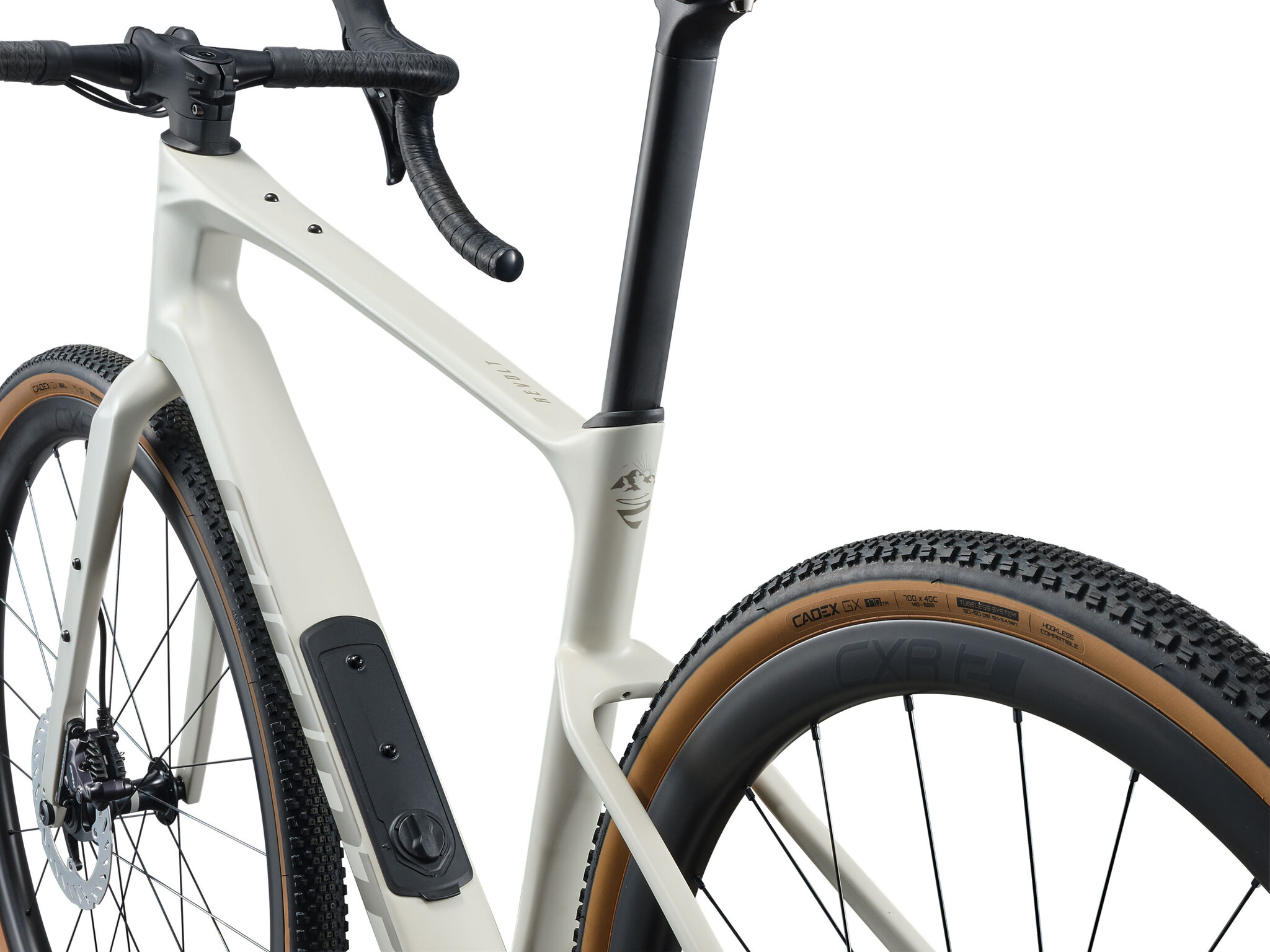

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

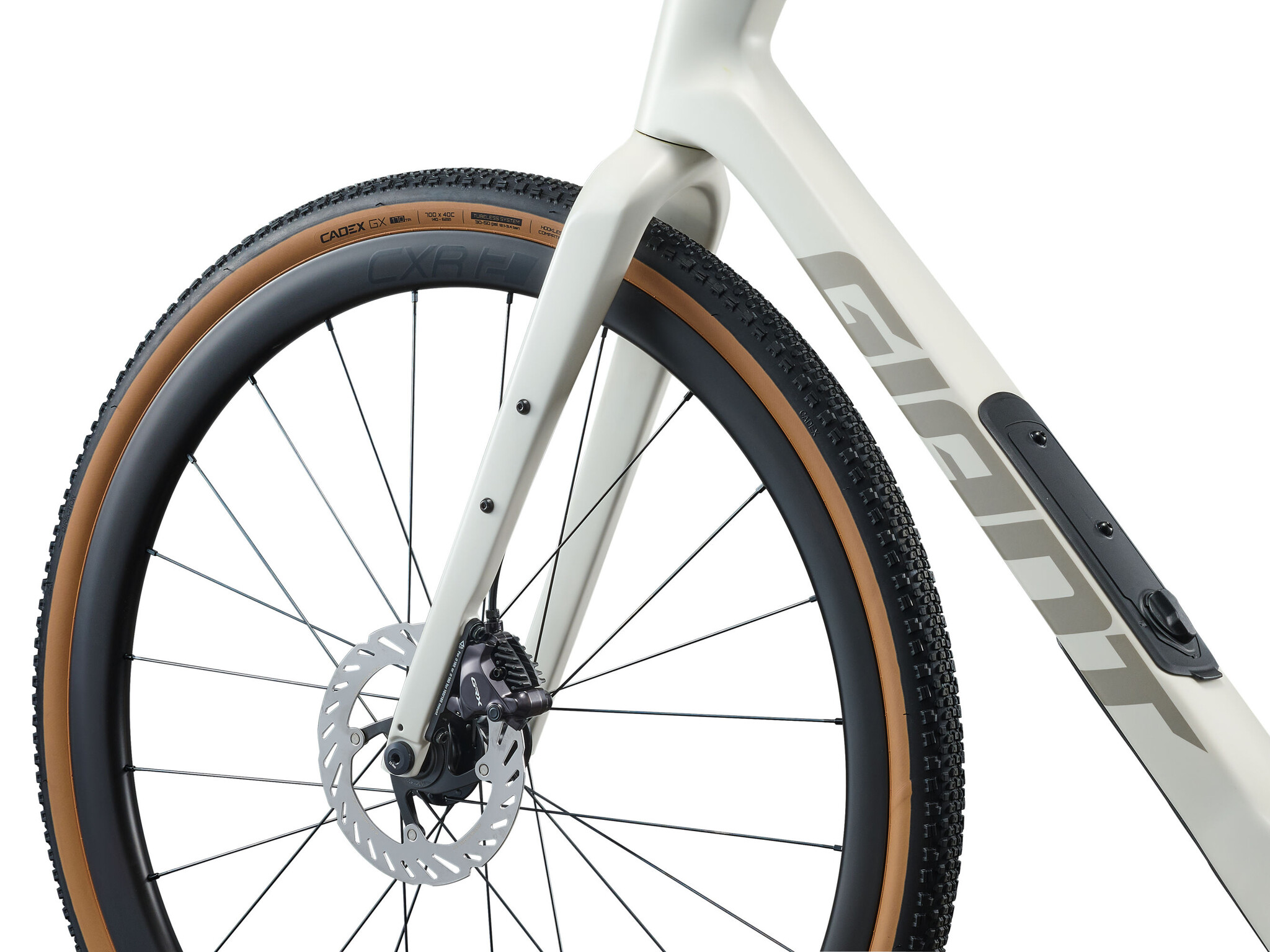

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips

Stratus Lite 3.0
Stem

Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Giant D-Fuse, composite, -5mm/+15mm
Saddle

Giant Grit
Pedals

N/A
Shifters

Shimano GRX RX-820, 2x12
Front Derailleur

Shimano GRX RX-820
Rear Derailleur

Shimano GRX RX-820
Brakes

Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake Levers

Shimano GRX RX-820 hydraulic
Cassette

Shimano CS-HG710, 12-speed, 11x36
Chain

KMC X12L-1

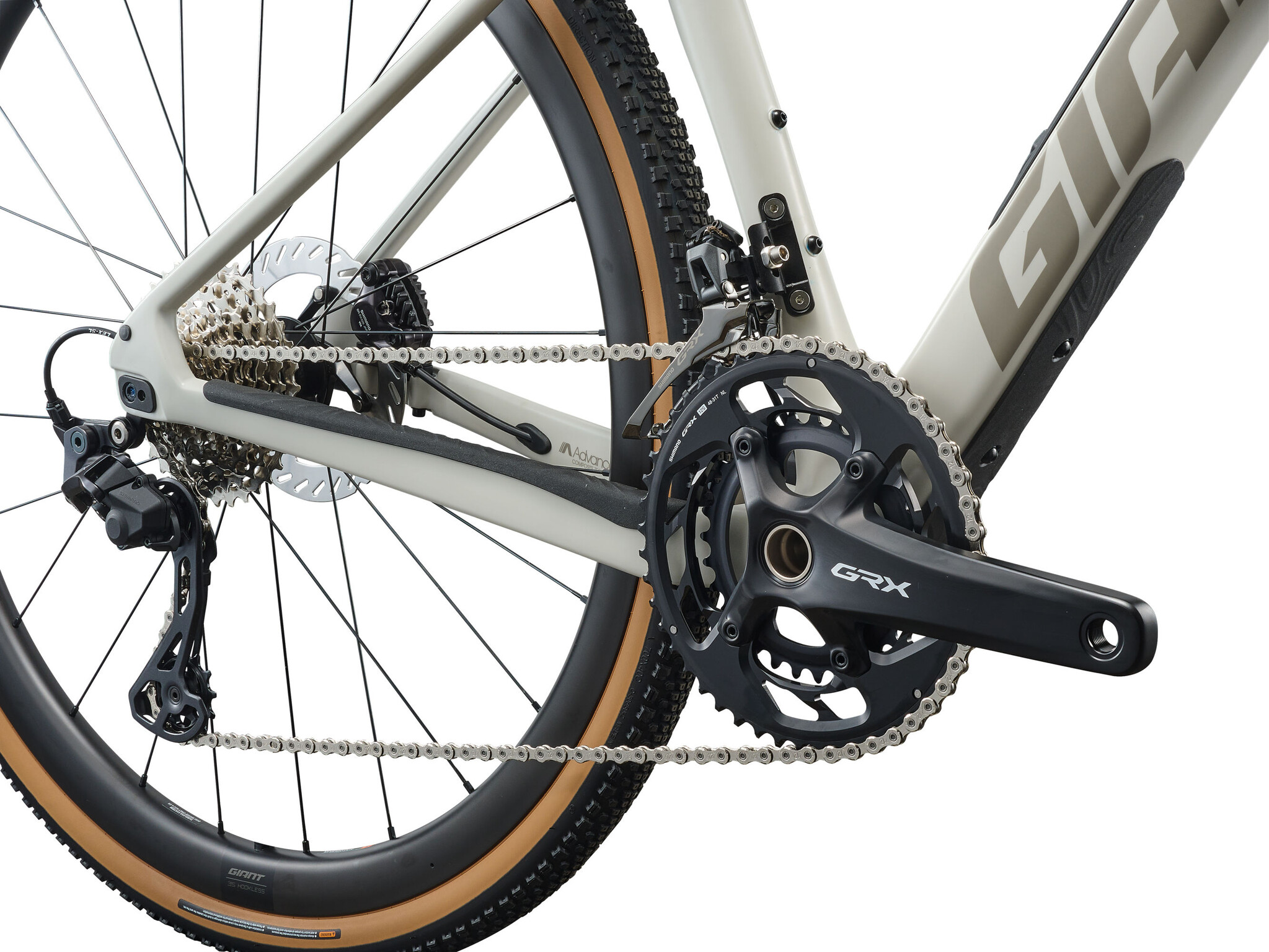

Crankset

Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

Shimano, press fit
Rims

Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs

[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes

Sapim Sprint
Tyres

Crosscut Grip 45c
Extras

Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
Max Tyre Clearance

53mm
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
