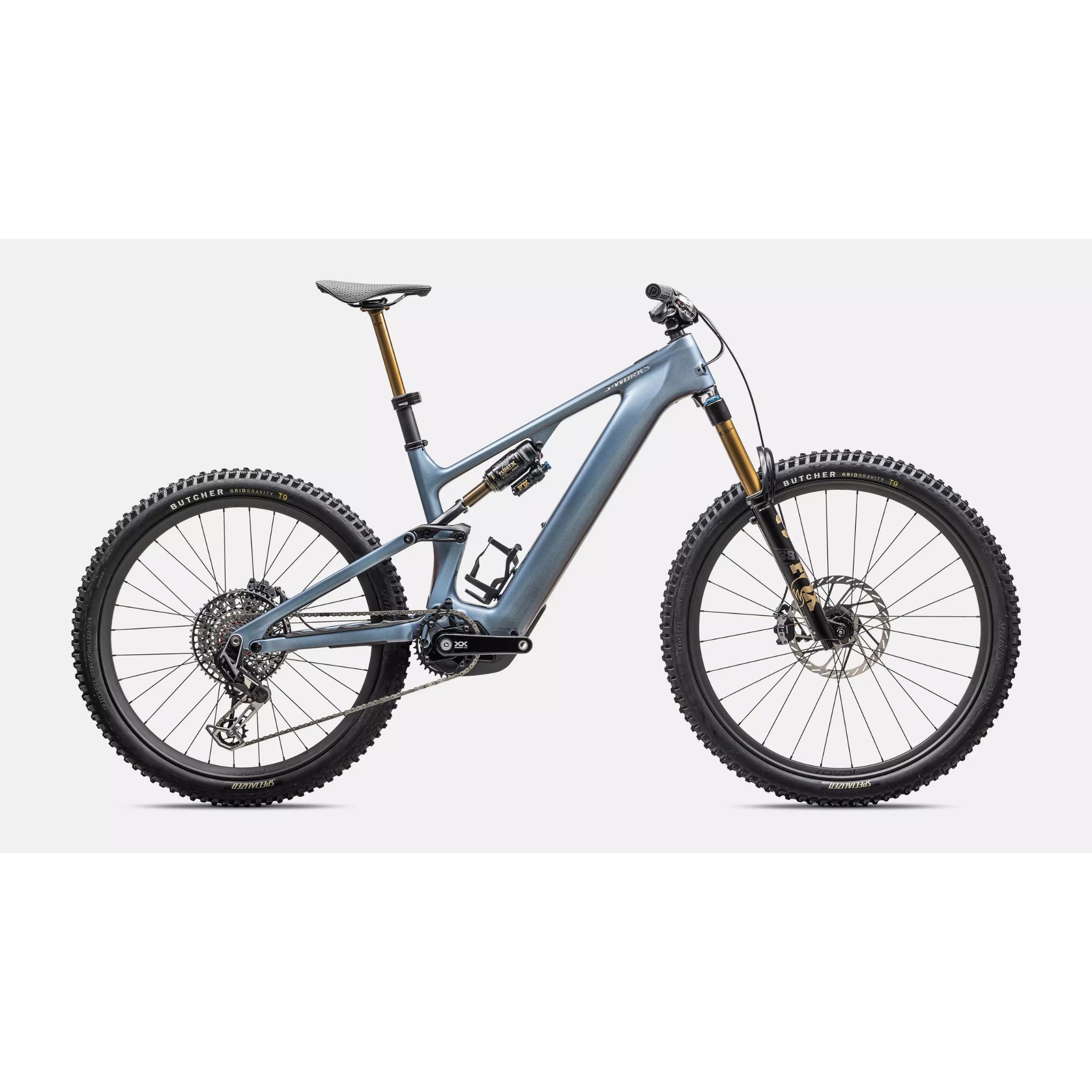

2026 S-Works Turbo Levo 4 GLOSS GLACIAL METALLIC / RED PEARL / BLACK PEARL S3 (Ex Demo)
Product details
At a Glance
Use
Full Power E-MTB Trail
E-System
S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
Frame
FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
Suspension
Front: 160mm FOX 38 FACTORY GRIPX2
Rear: 150mm GENIE - FOX FLOAT X Factory
Drivetrain
SRAM XX Eagle T-Type AXS
Wheels
Roval Traverse HD Carbon / DT 240 DEG
The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Technical Specifications
E-bike
- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
- Motor
- Specialized 3.1 S-Works motor, 111Nm power, 850W power
- Battery
- [Specialized Turbo X2 840Wh](https://www.specialized.com/p/4292130)
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Suspension
- Fork
- FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
- Rear Shock
- Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Brakes
- Front Brake
- SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
- Rear Brake
- SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
- Chainrings
- [SRAM 34t T-Type chainring](https://www.specialized.com/p/4274376), 104 BCD, steel
- Shift Levers
- SRAM AXS POD ULTIMATE with DISCRETE CLAMP
- Crankset
- SRAM XX Carbon crank, 160mm, ISIS interface
- Rear Derailleur
- SRAM XX Eagle Transmission Derailleur
- Cassette
- SRAM XX Transmission, XS 1297, 10-52t
- Chain
- SRAM XX, T-TYPE
Wheels & tires
- Rear Tire
- [Butcher, GRID GRAVITY Casing](https://www.specialized.com/p/1000234020), GRIPTON® T9 compound, TLR, 27.5x2.4"
- Front Tire
- [Butcher, GRID GRAVITY Casing](https://www.specialized.com/p/1000234020), GRIPTON® T9 compound, TLR, 29x2.4"
- Front Wheel
- [Roval Traverse HD carbon 29"](https://www.specialized.com/p/1000217096), hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 15x110mm, 32h
- Rear Wheel
- [Roval Traverse HD carbon 27.5"](https://www.specialized.com/p/1000217096), hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Grips
- Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
- SeatPost
- FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm
- Stem
- Industry 9 Mountain stem, 35mm clamp, 40mm length
- Handlebars
- Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
- Saddle
- [Specialized Power Pro Mirror w/hollow Ti Rails](https://www.specialized.com/p/205611), 143mm/155mm
Accessories
- SWAT
- SWAT Internal downtube storage
Product details
- Product ID
- 291509
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 23.68 kg (52 lb, 3.3 oz)
- Weight Size
- S4
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 175 | 200 | 200 | 200 |
| Stack | 618 | 626 | 638 | 652 | 667 |
| Reach | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
