Product details
Light and durable
ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Off-road control
Geometry is optimised for either 29-inch wheels or 27.5-inch depending on frame size, and a suspension fork of either 100mm or 80mm. The result is in confident off-road performance for riders of all sizes.
Modern MTB design
Wide tyre clearance (up to 2.4-inch), internal cable routing, thru-axle hubs, integrated chainstay protection and quality components (including a 1x drivetrain option) gives aspiring trail riders room to grow.
Size Guide & Geometry
Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
-
- XS (27.5")
- 155 cm
166 cm
-
- S (27.5")
- 163 cm 172 cm
-
- S (29")
- 163 cm 172 cm
-
- M (29")
- 169 cm 179 cm
-
- L (29")
- 176 cm 186 cm
-
- XL (29")
- 183 cm 193 cm
Sizes
27.5: XS, S 29: S, M, L, XL
| XS (27.5") | S (27.5") | S (29") | M (29") | L (29") | XL (29") | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 345 | 375 | 380 | 420 | 450 | 480 |
| A1 Seat Post Insertion Depth (mm) | 300 | 340 | 245 | 200 | 250 | 300 |
| B Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° | 74.5° | 74.5° |
| C Top Tube Length (mm) | 542 | 562 | 581 | 604 | 629 | 653 |
| D Head Tube Length (mm) | 90 | 90 | 95 | 105 | 125 | 140 |
| E Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° | 67.5° | 67.5° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 | 44 |
| G Trail (mm) | 105 | 105 | 109 | 109 | 109 | 109 |
| H Wheelbase (mm) | 1084 | 1104 | 1140 | 1164 | 1191 | 1216 |
| I Chain Stay Length (mm) | 440 | 440 | 455 | 455 | 455 | 455 |
| J Bottom Bracket Drop (mm) | 45 | 45 | 55 | 55 | 55 | 55 |
| K Stack (mm) | 548 | 548 | 597 | 606 | 625 | 638 |
| L Reach (mm) | 385 | 405 | 415 | 435 | 455 | 475 |
| M Stand Over Height (mm) | 684 | 684 | 715 | 708 | 708 | 710 |
| O Stem Length (mm) | 40 | 50 | 40 | 50 | 60 | 60 |
| P Crank Length (mm) | 165 | 165 | 170 | 170 | 170 | 175 |
Colours

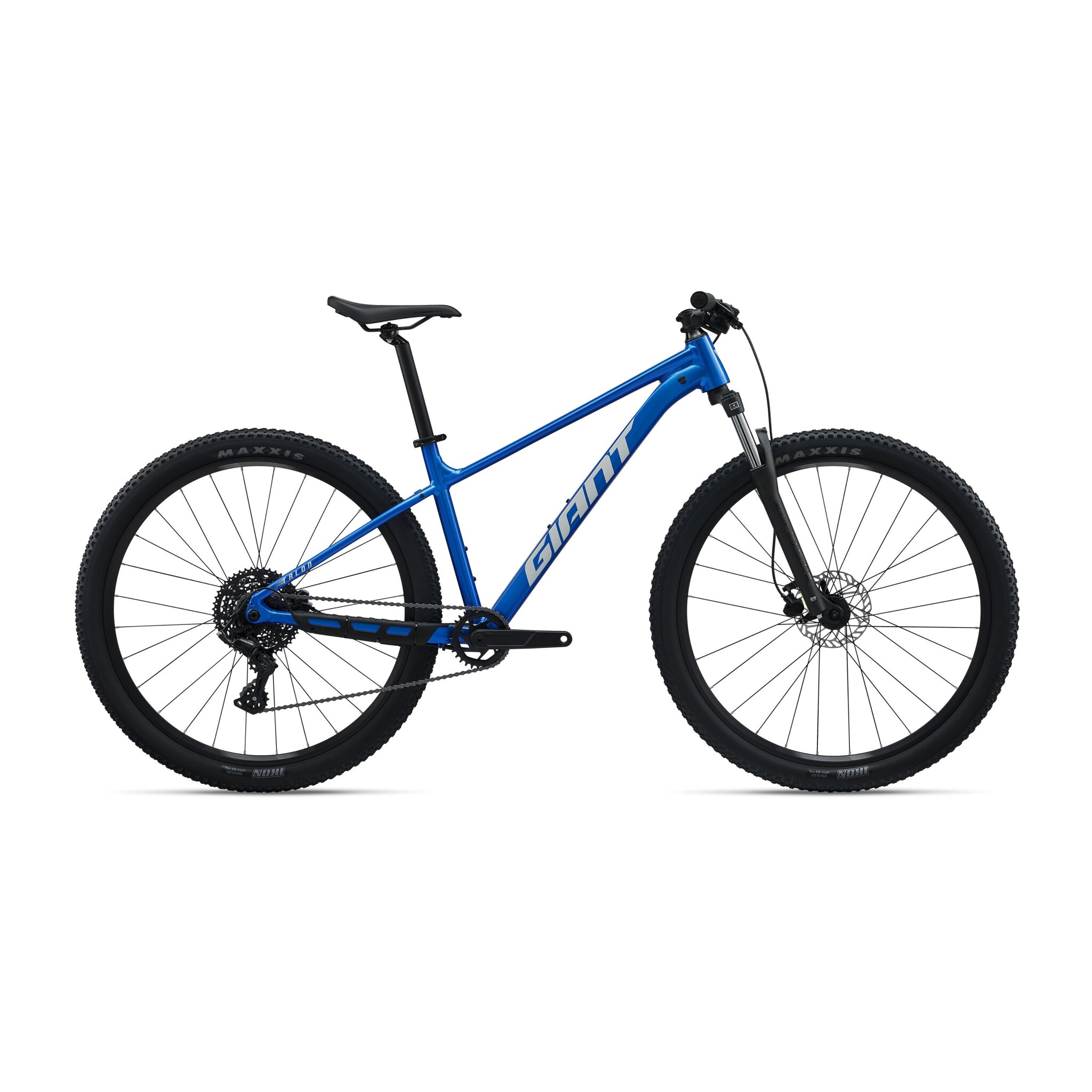

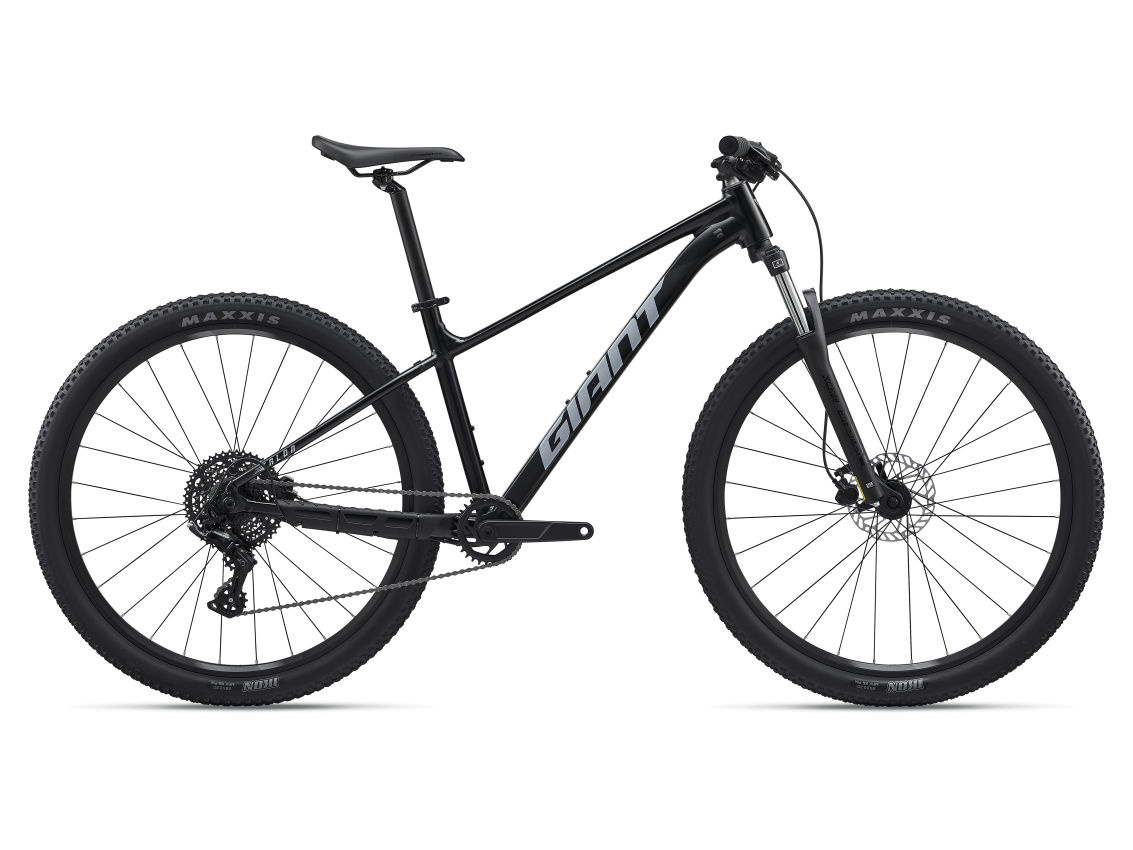

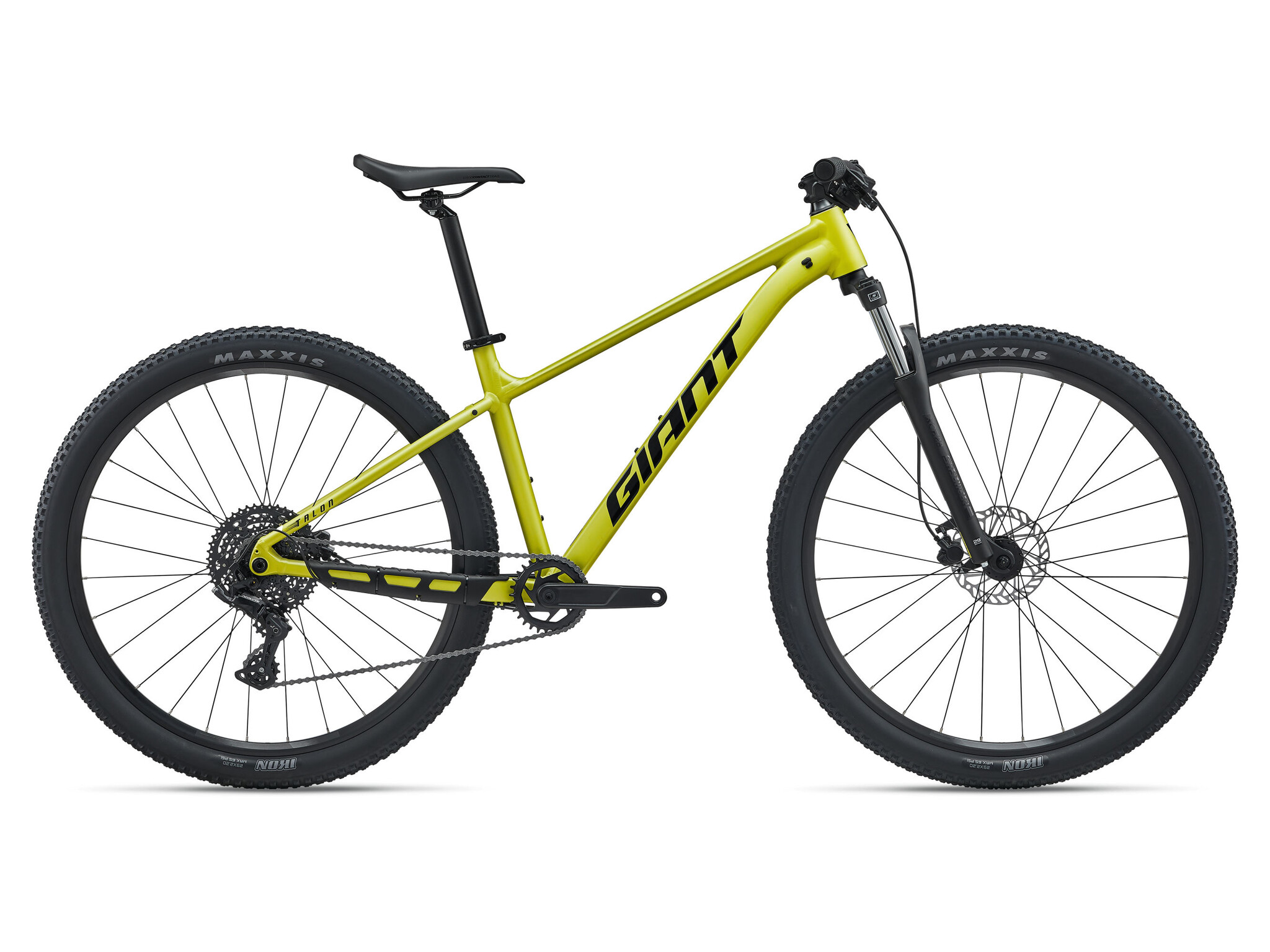

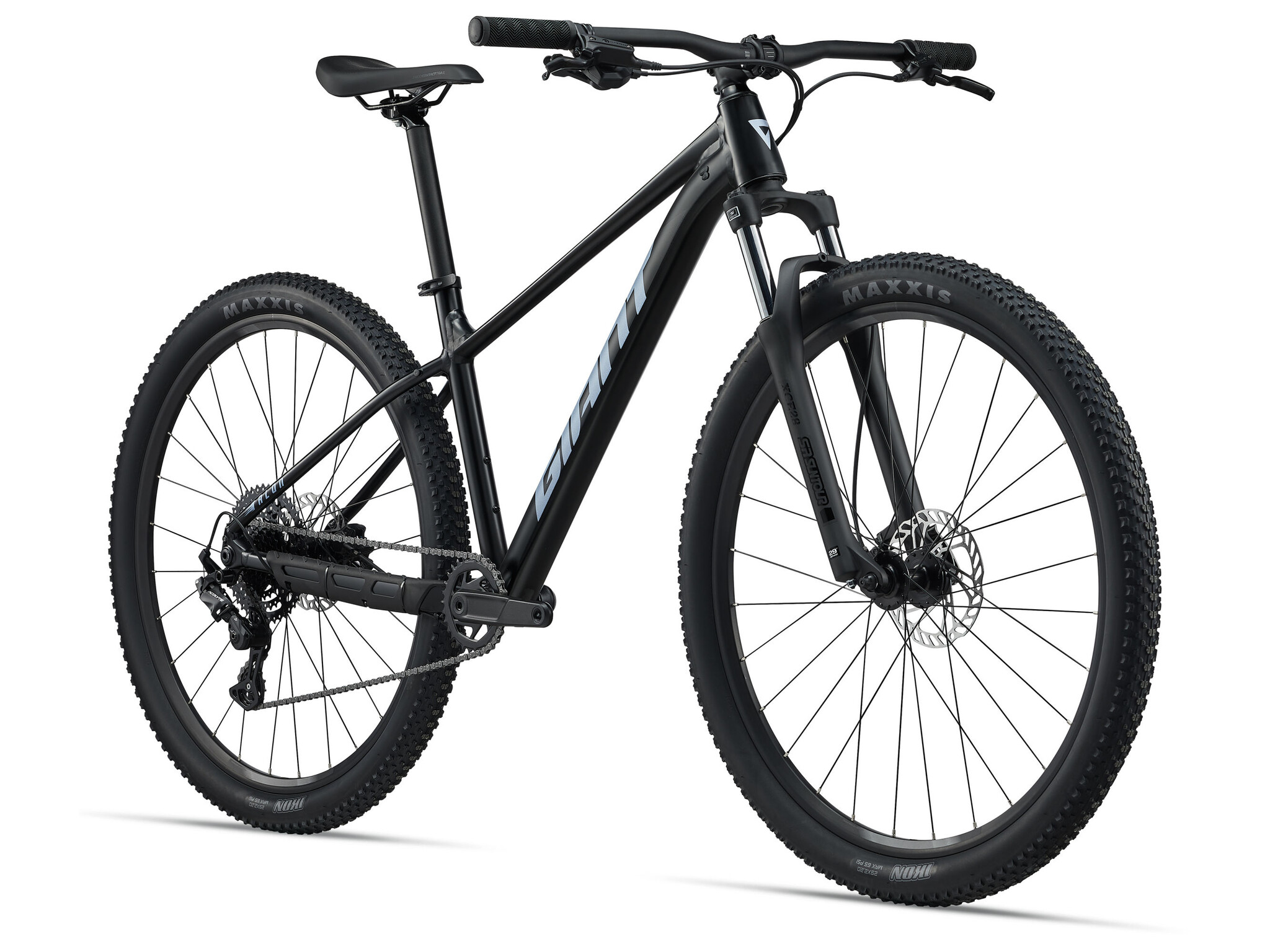

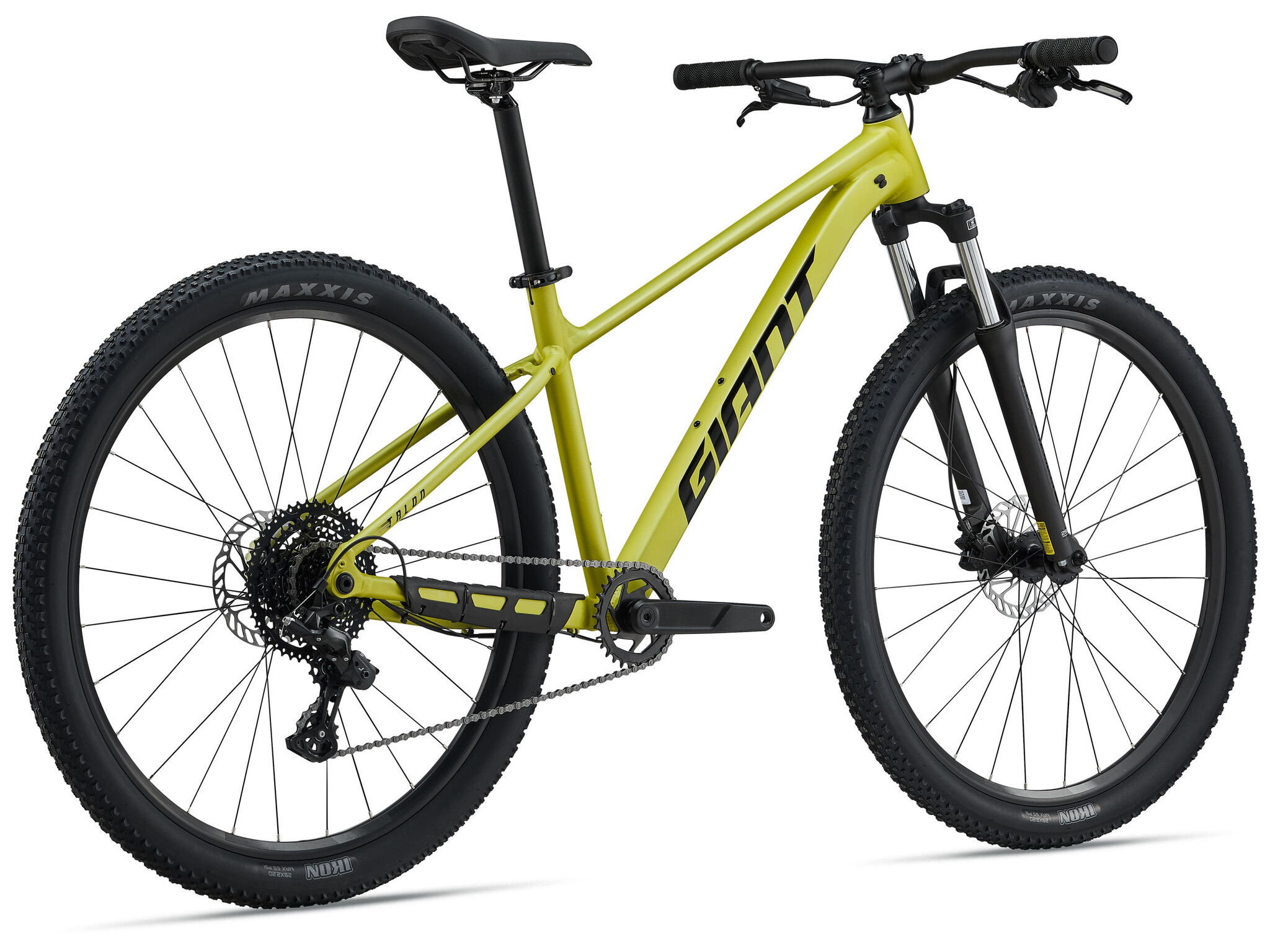

Black, Azure Blue, Cyber Lime
Frame
ALUXX-Grade aluminium, disc
Fork
SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
Shock
N/A
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O
Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Seatpost
Giant Sport, 30.9mm
Saddle
Giant Sport
Pedals
MTB caged
Shifters
microSHIFT Acolyte, 1x8
Front Derailleur
N/A
Rear Derailleur
microSHIFT Acolyte, M5185M w/clutch
Brakes
Tektro HD TKD-176, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers
Tektro HD TKD-176
Cassette
microSHIFT Acolyte H083, 12x46
Chain
KMC 8.3
Crankset
ProWheel EPRO, 30t (29"), 32t (27.5") XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
Bottom Bracket
Cartridge
Rims
Giant GX03V 29 or 27.5, alloy, double wall, 28H
Hubs
Alloy, [F] 9mm QR, [R] 12x142 thru-axle
Spokes
Stainless, 14g
Tyres
Maxxis Ikon 27.5" or 29x2.2", wire bead
Max Tyre Clearance
2.4" max tyre size
Max Chainring Size
32t max chainring size
