Specialized

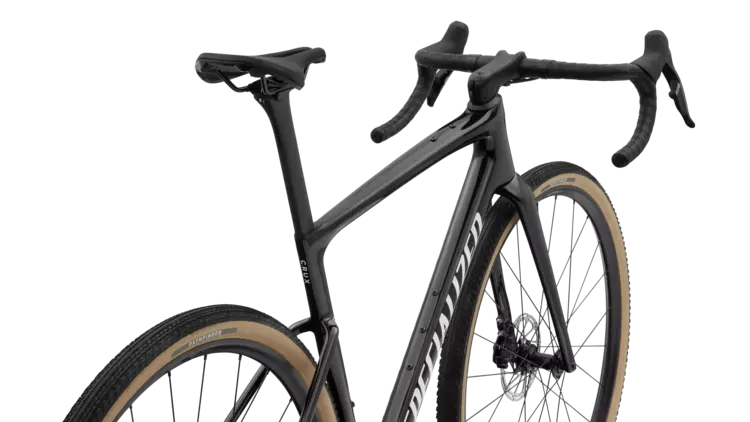

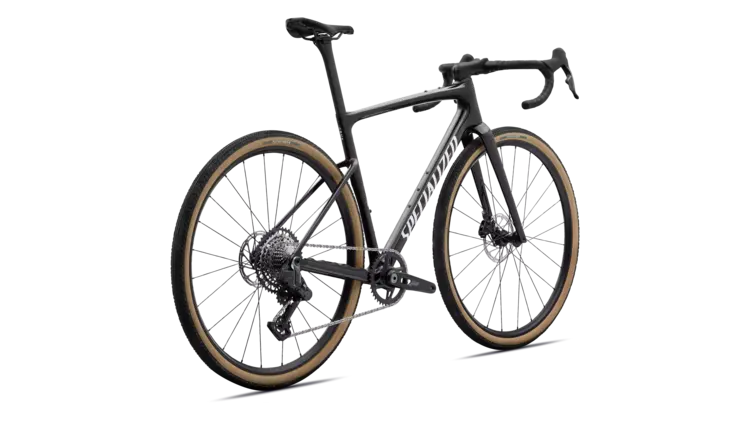

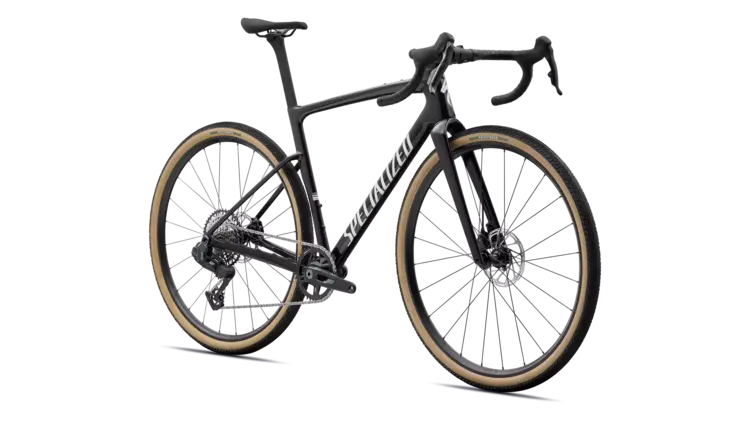

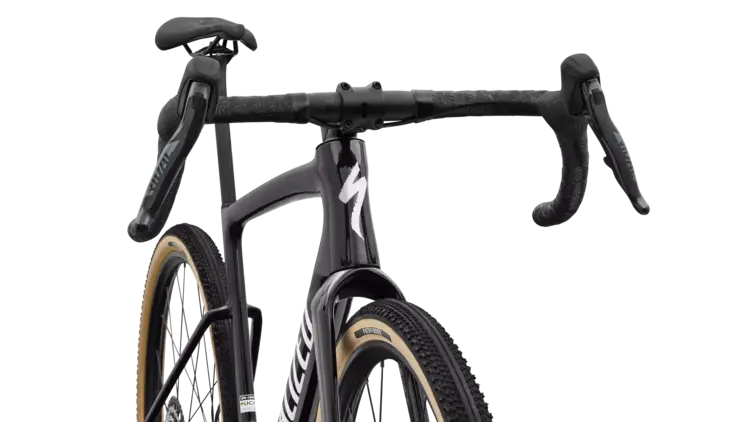

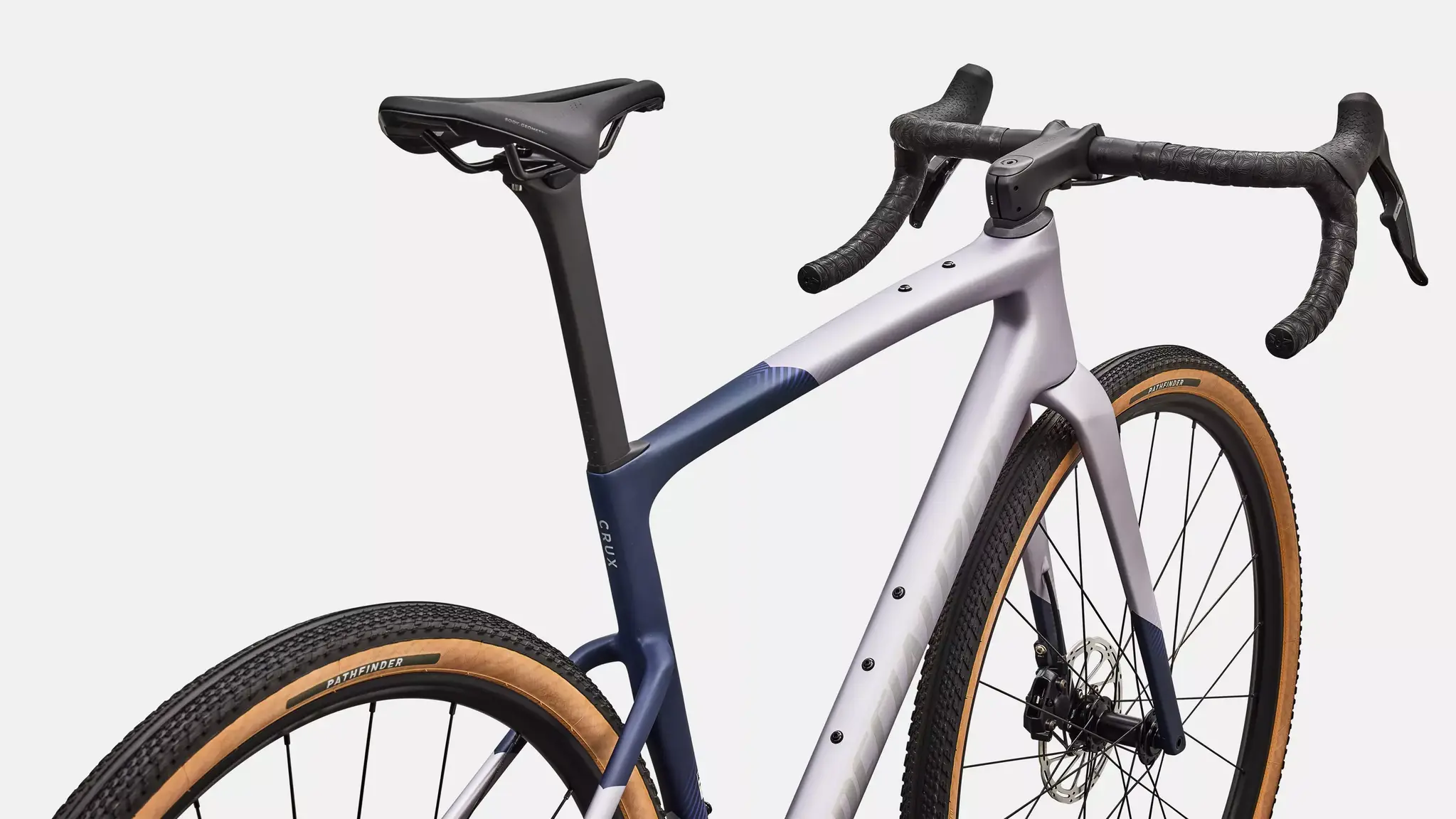

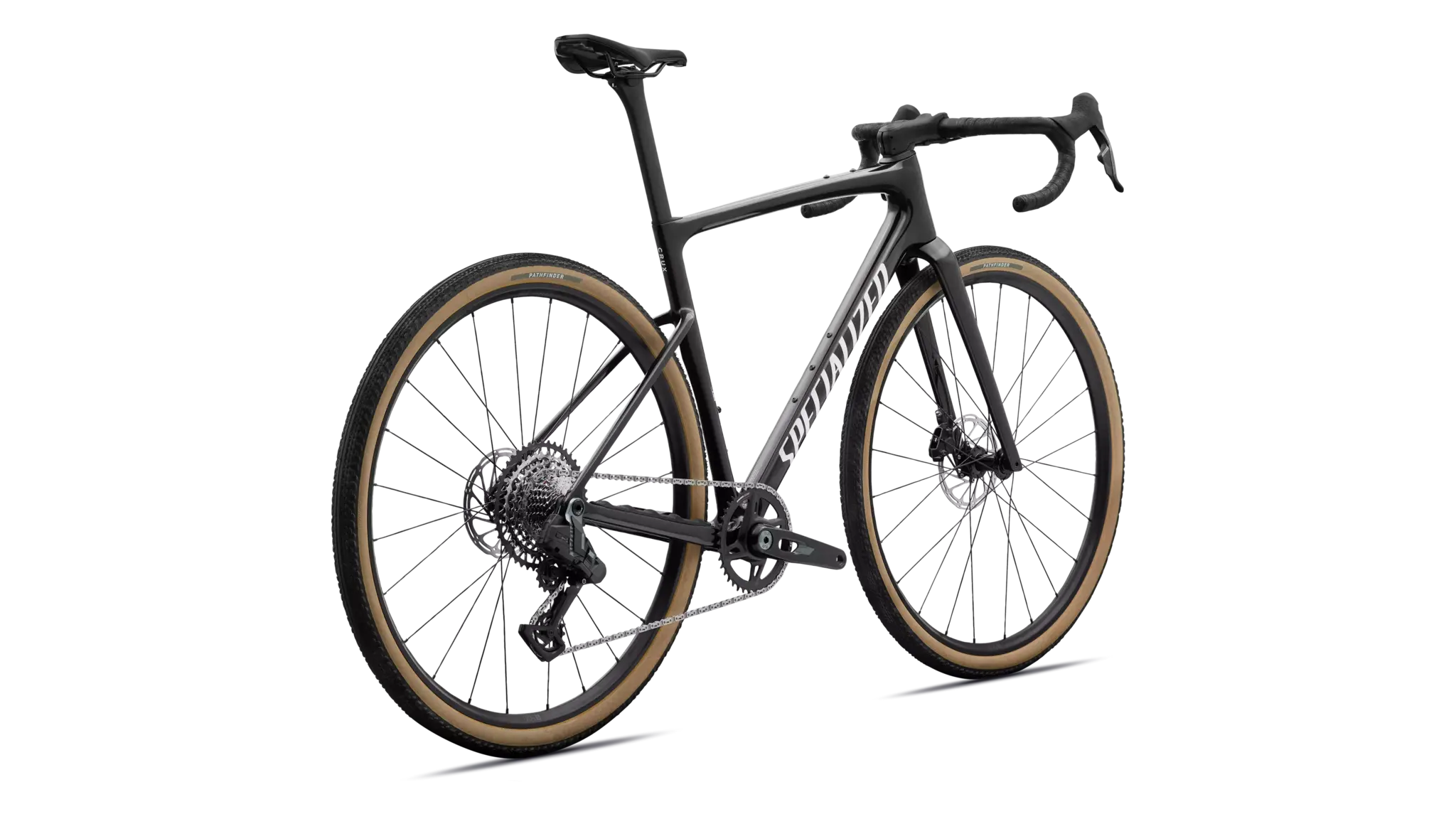

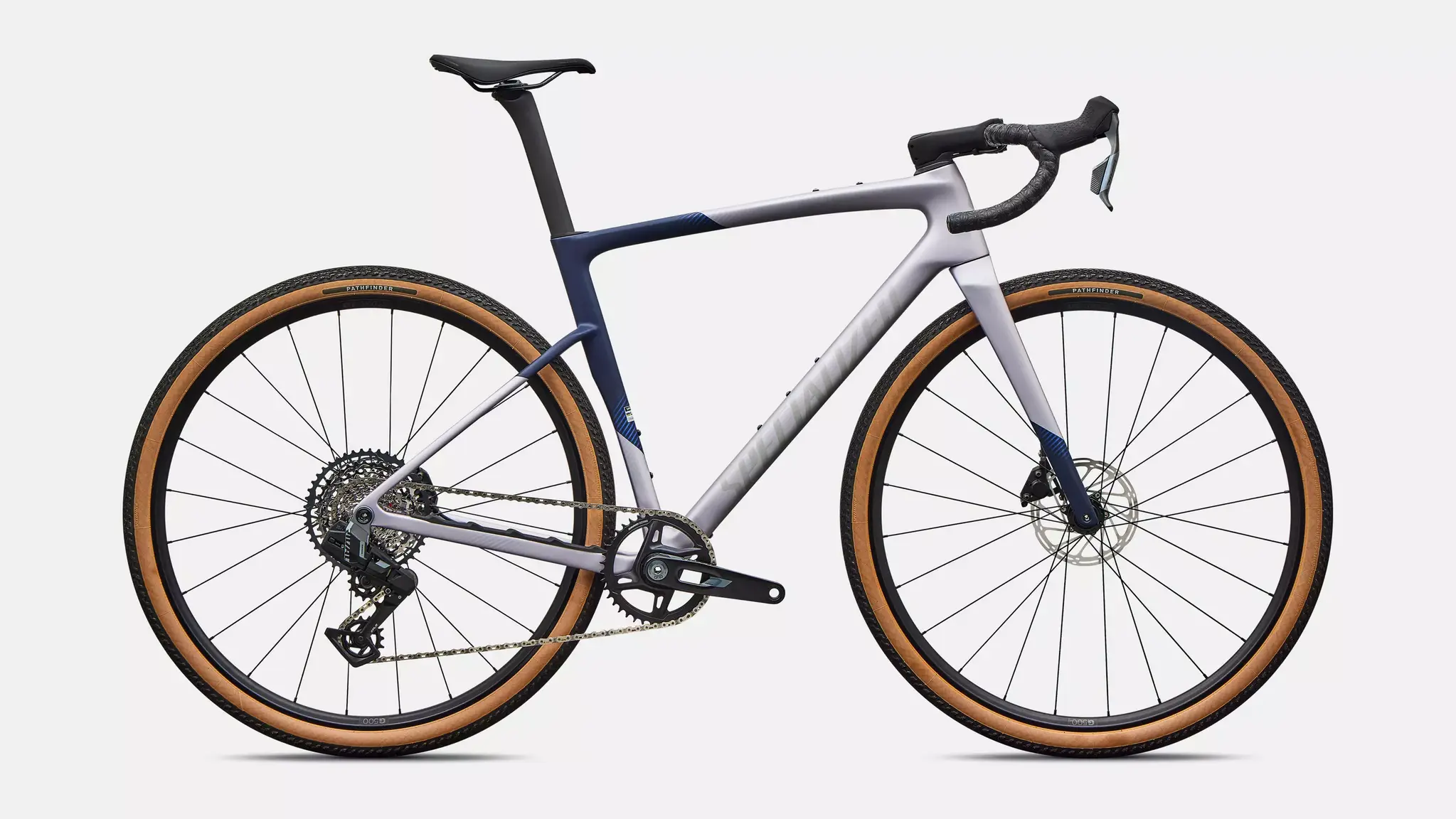

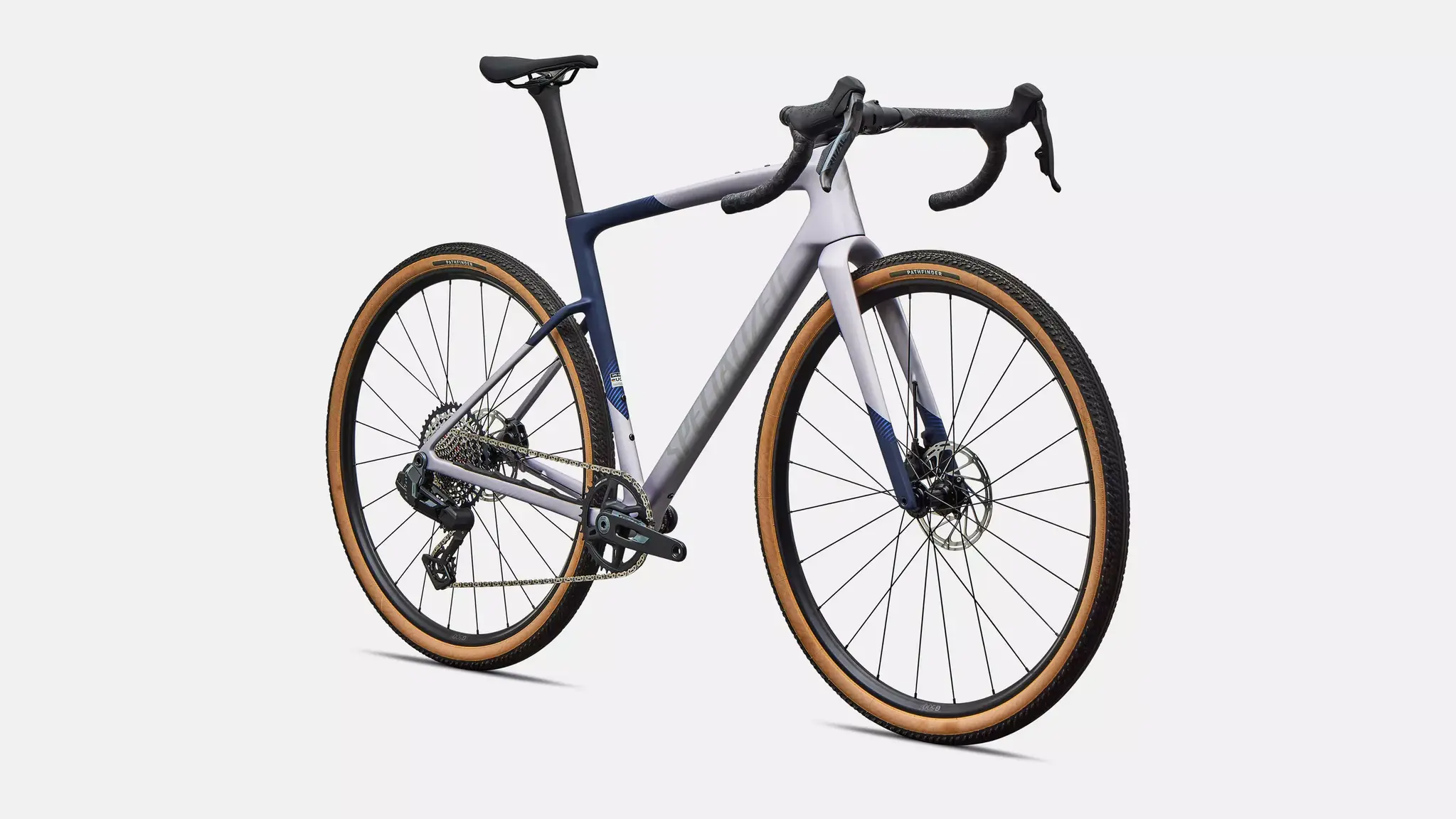

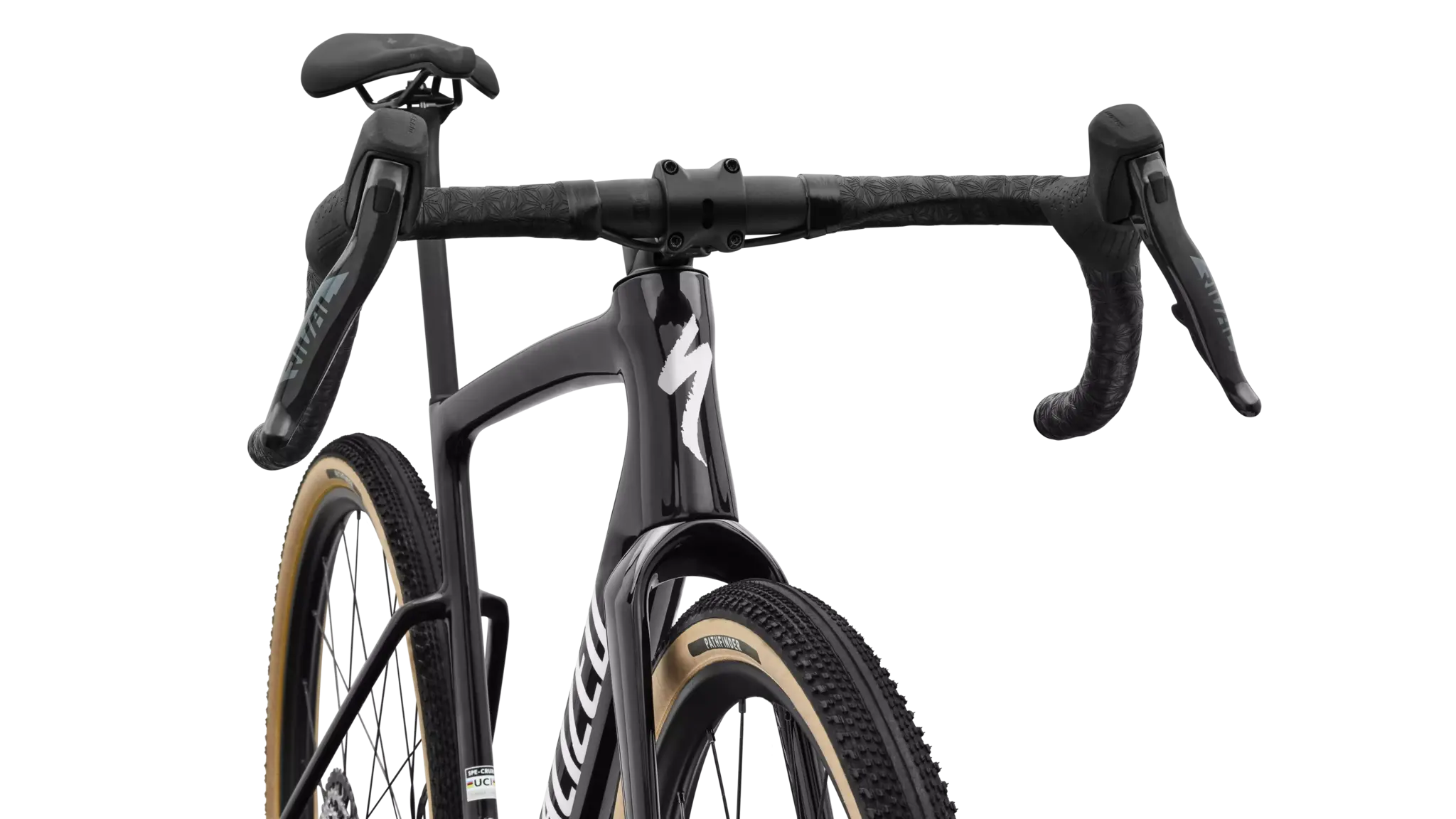

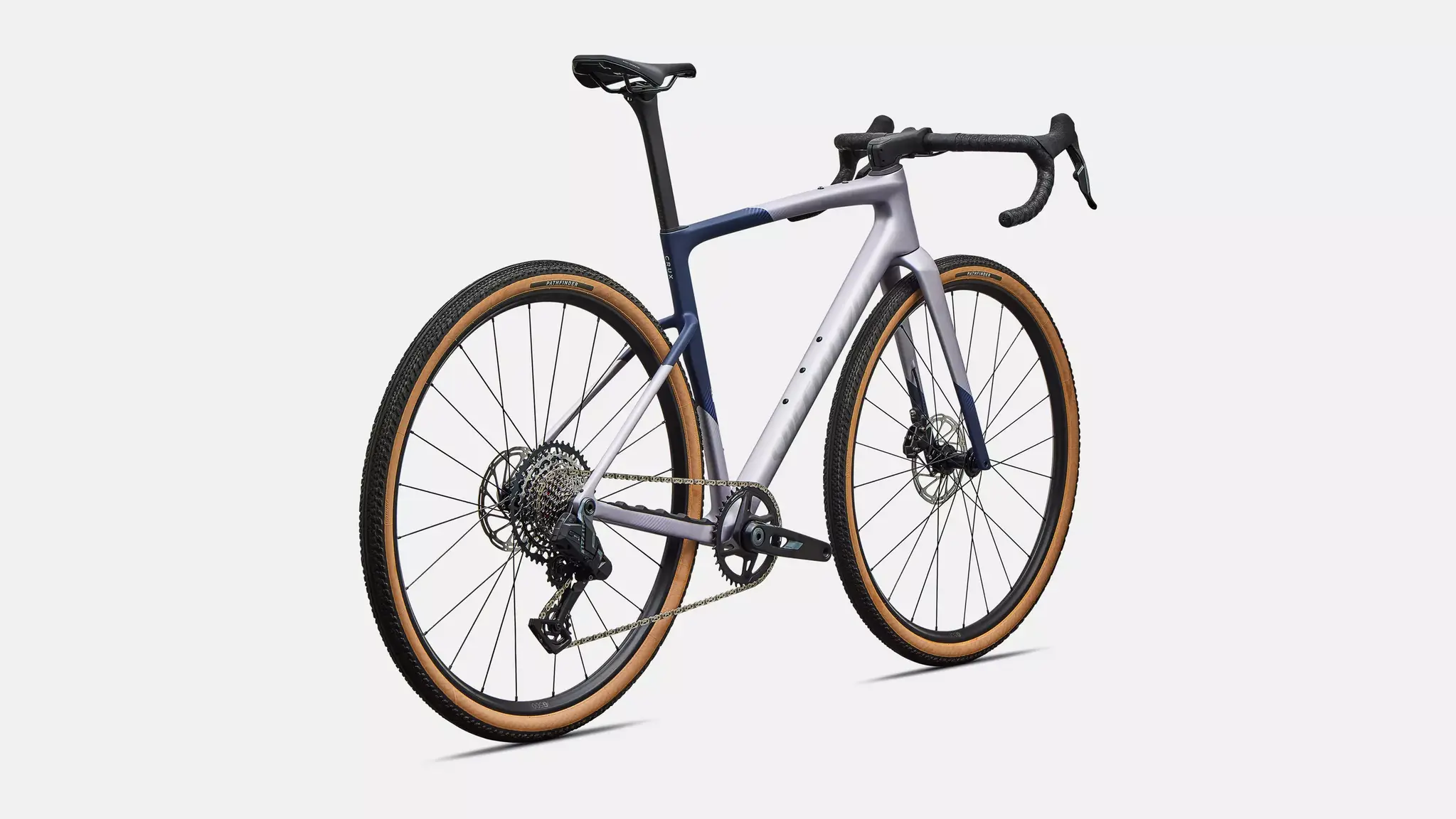

2027 Specialized Crux 5 Comp - SRAM Rival XPLR

•••••
SKU: 91427-5154
+-
$6,200.00
Add to cart
On backorder
  • Overview
    • At a Glance
    Use: Gravel Racing
    Frame: FACT 10r Carbon: 897 grams
    Wheels: DT G-500
    Bar and Stem: Alloy Bar and Rapide Stem
    Drivetrain: SRAM Rival AXS XPLR
    Weight: 8.89 kg

    We have a 54 in the Obsidian Metallic/dune White colour due August

Product details

Crux 5 Comp

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Technical Specifications

Frame - Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork - S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake - SRAM Rival E1, hydraulic disc
Rear Brake - SRAM Rival E1, hydraulic disc
Drivetrain
Bottom Bracket - SRAM DUB BSA 68 Wide
Shift Levers - SRAM Rival AXS E1
Rear Derailleur - SRAM Rival AXS E1 XPLR, 13-speed
Chain - SRAM Rival E1
Cassette - SRAM Rival E1 XPLR, 13-speed, 10-46t
Crankset - SRAM Rival E1 XPLR, DUB Wide, 40t
Inner Tubes - 700x32-50mm, 40mm Presta valve
Front Wheel - DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel - DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire - Pathfinder 700x45, Tubeless Ready
Rear Tire - Pathfinder 700x45, Tubeless Ready
Saddle - Body Geometry Power Sport, steel rails
Seat Post - S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Stem - Roval Rapide, alloy, 4 bolt, -6 degrees
Handlebars - Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Tape - Supacaz Super Sticky Kush
Seat Binder - Integrated Wedge
Product details
Weight Size 56 - 8.89 kg (19 lb, 9.6 oz)

Geometry


  49 52 54 56 58 61
Crank Length 165 165 170 170 172.5 172.5
Handlebar Width 380 380 400 400 420 420
Stem Length 70 80 90 100 100 100
Saddle Width 155 155 143 143 143 143
Seatpost Length 300 300 380 380 380 380
Stack 530 547 560 578 598 621
Reach 375 382 388 400 412 425
Head Tube Length 95 110 125 142 163 188
Head Tube Angle 70.5 70.75 71 71.5 71.5 71.5
BB Height 278 278 280 280 280 280
BB Drop 80 80 78 78 78 78
Trail 72 71 69 66 66 66
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 51 51 51 51 51 51
Front Center 594 604 613 626 644 665
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1016 1026 1039 1057 1078
Top Tube Length, Horizontal 512 534 543 566 583 603
Bike Standover Height 753 766 781 803 823 849
Seat Tube Length 445 456 473 497 515 545
Seat Tube Angle 75.5 74.5 74.5 74 74 74
